27W Explosion Proof Forklift LED Zone Light - Pedestrian Safety - Blue - 10-100V DC - ATEX/IECEX

LARSON ELECTRONICSSKU: PL3-EXHL-TRN-ZN-LE9-FKLT-BLU
filler

Precio:
Precio de venta$5,012.00
 Más opciones de pago

Descripción

Specifications / Additional Information
EXHL-TRN-ZN-LE9-FKLT-BLU Explosion Proof Forklift LED Zone Light Features/Ratings
Unit Type: CREE LED (Blue) Class I, Div. 1 & 2, Groups B, C, D
Dimensions: 16.5" x 8.87" x 7.18" Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: - Class II, Div. 1 & 2, Groups E, F, G
Voltage: 10-100V DC Class III, Div. 1 & 2
Current: 12V @ 2.2A Type 3, 4 & 4X
Watts: 27W NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Lumens: 2,350 ATEX/IEC Ex
LED Life Expectancy: 50,000+ Hours Ex d IIC T6 or T5
Beam Type: Blue Zone Line Ex tD A21 IP66 T80°C or T90°C IP66
Beam Profile: 30` x 1.5` @ 15` (Height) Ta = -20°C to +60°C
Housing: Copper-free Aluminum
Lens: Tempered Soda Lime Glass
Finish: Electrostatically Applied Powder Epoxy/Polyester
Mounting: Trunnion Bracket Mount
Wiring: Power Cord
Color: Gray
' Product Overview '

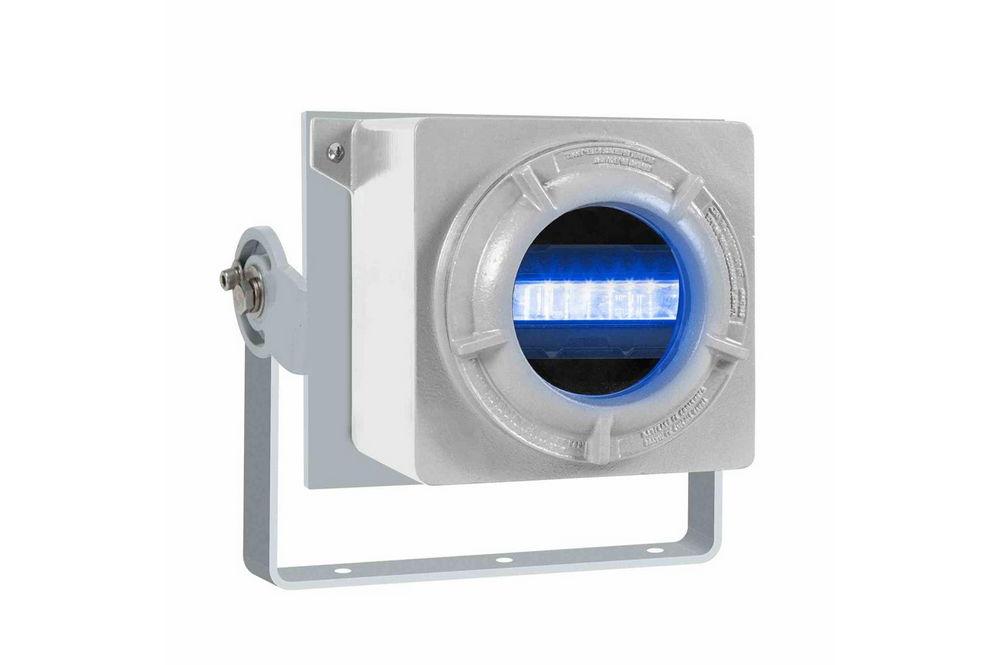

Made in the USA The Larson Electronics EXHL-TRN-ZN-LE9-FKLT-BLU Explosion Proof LED Forklift Zone Light is suitable for illuminative safety on forklifts in hazardous locations, flammable environments and busy work sites, such as warehouses and delivery bays. This explosion proof LED fixture consumes 27 watts and emits 2,350 lumens of blue light during operation. The low profile LED mounts on forklifts and surfaces via a sturdy trunnion bracket. The EXHL-TRN-ZN-LE9-FKLT-BLU is a powerful explosion proof LED zone light for forklifts and operational safety in flammable work sites, confined spaces and industrial facilities. This 27-watt unit emits 2,350 lumens of blue light during use. Compared to a laser safety light, the explosion proof LED fixture provides a wider zone line for enhanced visibility and detection. At a height of 15 feet, the LED lamp provides a 30` x 1.5` beam configuration. Operating on 10-100V DC, the LED pedestrian safety light is compatible with a range of standard forklift voltages, including 12V, 24V, 36V and 48V.
Constructed of copper-free aluminum, the explosion proof LED pedestrian safety light features a tempered soda lime glass lens with an electrostatically applied gray powder epoxy/polyester finish. A forklift may incorporate this explosion proof LED light at the front, back or both ends of the forklift body. Alternatively, operators may also install a red version of this zone light (LEDWL-ZN-FKLT-RED) for multi-colored safety lighting or as a standalone explosion proof red forklift safety lamp. The EXHL-TRN-ZN-LE9-FKLT-BLU is suitable for ATEX/IECEX rated environments, as well as Class I Division 1 and 2; Class I Zones 1 and 2; Class II Division 1 and 2; and Class III work sites. This unit is also NEMA Type 4X rated and supports IP66 ratings. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LED lights can operate on current ranging from 10 to 100V DC without any modifications necessary as a result. (347-480V AC and 120-277V AC available upon request). This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it. Durability: As well as unparalleled heat control, the LEDP WRE series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The CREE XLamp XM-L® LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. Mounting/Wiring: This explosion proof forklift zone light features an adjustable trunnion mount bracket for seamless control. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the light`s tilt orientation, and retighten to hold the luminary in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the fixture by loosening one bolt. Applications: Flammabe work sites, confined spaces, oil and gas, petrol refinering, pedestrian safety, forklift operations, zone lights, warehouses, compact vessels, carts, illuminative safety, industrial buildings and more.
