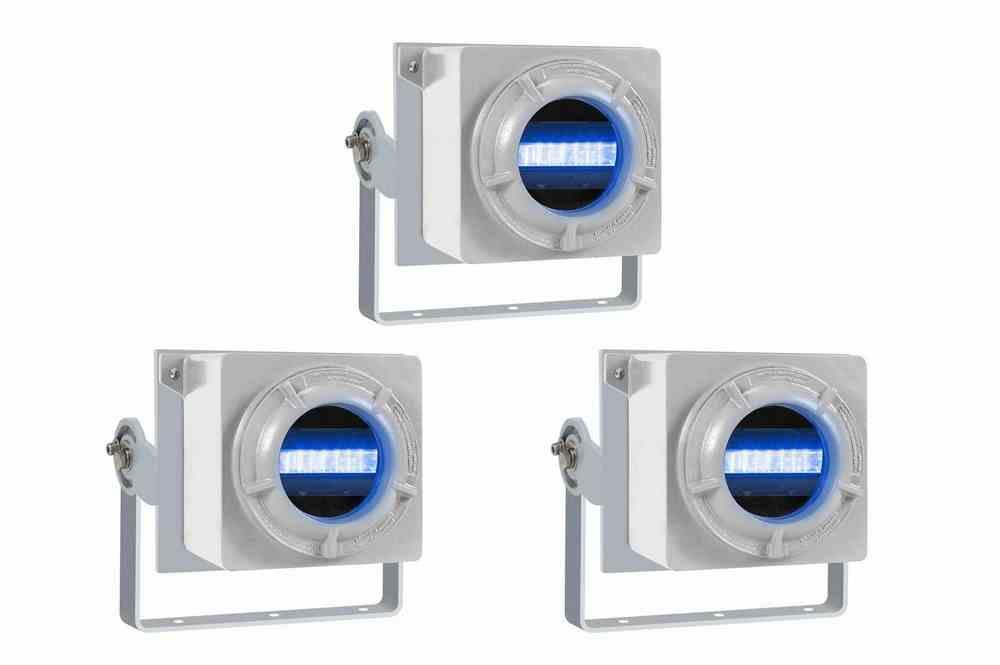

Explosion Proof Forklift LED Zone Light Set - Pedestrian Safety - 10-100V DC - (3) Blue Lights

LARSON ELECTRONICSSKU: PL3-EXHL-TRN-ZN-LE9-FKLT-BLU-KT.3X
filler

Precio:
Precio de venta$15,032.00

Descripción

Specifications / Additional Information
EXHL-TRN-ZN-LE9-FKLT-BLU-KT.3X Explosion Proof Forklift LED Zone Light Set Features/Ratings
Unit Type: CREE LED (Blue) Class I, Div. 1 & 2, Groups B, C, D
Lamp Dimensions: 16.5" x 8.87" x 7.18" Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: - Class II, Div. 1 & 2, Groups E, F, G
Voltage: 10-100V DC Class III, Div. 1 & 2
Lamp Current: 12V @ 2.2A Type 3, 4 & 4X
Total Watts: 81W NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Total Lumens: 7,050 ATEX/IEC Ex
LED Life Expectancy: 50,000+ Hours Ex d IIC T6 or T5
Beam Type: Blue Zone Line Ex tD A21 IP66 T80°C or T90°C IP66
Beam Profile: 30` x 1.5` @ 15` (Height) Ta = -20°C to +60°C
Housing: Copper-free Aluminum
Lens: Tempered Soda Lime Glass
Finish: Electrostatically Applied Powder Epoxy/Polyester
Mounting: Trunnion Bracket Mount
Wiring: Power Cord
Color: Gray
Package Contents: (3) Explosion Proof Forklift Lights
' Product Overview '
The Larson Electronics EXHL-TRN-ZN-LE9-FKLT-BLU-KT.3X Explosion Proof LED Forklift Zone Light Set is suitable for illuminative safety on forklifts in hazardous locations, flammable environments and busy work sites, such as warehouses and delivery bays. This explosion proof LED set contains a total of three forklift safety fixtures that consume 27 watts and emit 2,350 lumens of blue light per unit. The low profile LED mounts on forklifts and surfaces via a sturdy trunnion bracket. The EXHL-TRN-ZN-LE9-FKLT-BLU-KT.3X is a powerful explosion proof LED zone light set for forklifts and operational safety in flammable work sites, confined spaces and industrial facilities. Equipped with three safety lights, each 27-watt unit emits 2,350 lumens of blue light during use. Compared to a laser safety light, the explosion proof LED fixtures provide a wider zone line for enhanced visibility and detection. At a height of 15 feet, the LED lamps each provide a 30` x 1.5` beam configuration. Operating on 10-100V DC, the LED pedestrian safety lights are compatible with a range of standard forklift voltages, including 12V, 24V, 36V and 48V.
Constructed of copper-free aluminum, the explosion proof LED pedestrian safety lights feature a tempered soda lime glass lens with an electrostatically applied gray powder epoxy/polyester finish. A forklift may incorporate this explosion proof LED light set at the front, back or both ends of the forklift body. Alternatively, operators may also install a red version of this zone light (LEDWL-ZN-FKLT-RED) for multi-colored safety lighting or as a standalone explosion proof red forklift safety lamp. The EXHL-TRN-ZN-LE9-FKLT-BLU-KT.3X is suitable for ATEX/IECEX rated environments, as well as Class I Division 1 and 2; Class I Zones 1 and 2; Class II Division 1 and 2; and Class III work sites. This set is also NEMA Type 4X rated and supports IP66 ratings. Mounting/Wiring: This explosion proof forklift zone light set features an adjustable trunnion mount bracket for seamless control. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust each of the light`s tilt orientation, and retighten to hold the luminary in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the fixtures by loosening one bolt. Applications: Flammable work sites, confined spaces, oil and gas, petrol refinery, pedestrian safety, forklift operations, zone lights, warehouses, compact vessels, carts, illuminative safety, industrial buildings and more.
