15A Explosion Proof Automatic Timer - Class I, II, III - 120-240V, 1-phase - 60-Min Timer, Green/Red Push Button - NEMA
15A Explosion Proof Automatic Timer - Class I, II, III - 120-240V, 1-phase - 60-Min Timer, Green/Red Push Button - NEMA
| EXP-AT-SG-1PH-MIN.60-120.240V-15A Automatic Timer Push Button | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Class I, Divisions 1&2 Groups C,D |
| Unit Type: Solid-state Explosion Proof Automatic Timer | Class II, Divisions 1&2 Groups E,F,G |
| Dimensions: 11" x 3.5"x 3.06" | Class III |
| Voltage: 120-240V AC | NEMA 3,7(BCD),9(EFG),12 |
| Phase: 1-phase | Â |
| Push Buttons: (1) Green/Start, (1) Red/Stop-Reset | Â |
| Timer Setting (Factory Configured): 60 Minutes | |
| Amps: 15A | |
| Horsepower Rating: - | |
| Ambient Operating Temp: -40 °F to 104 °F (-40 °C to 40 °C) | |
| Unit Materials: Copper-free Cast Aluminum | |
| Mounting: External Mounting Lugs on Body | |
| Hub Quantity: (2) Feed Through or (1) Dead End | |
| Hub Size: 1/2" or 3/4" |

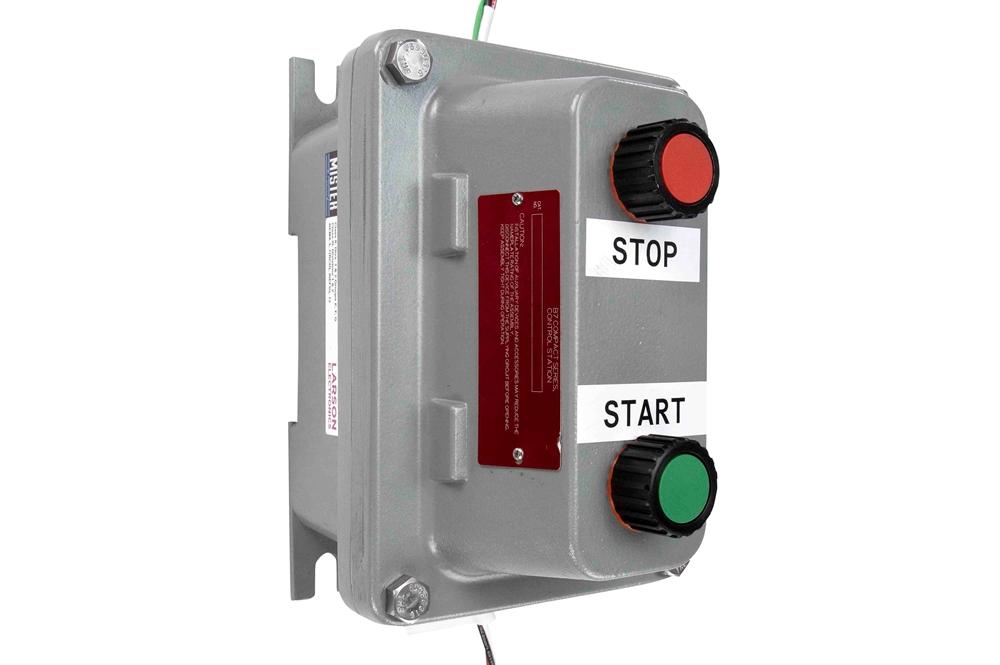

| Made in Texas The Larson Electronics EXP-AT-SG-1PH-MIN.60-120.240V-15A Explosion Proof Automatic Timer provides timed controls for equipment in combustible work sites and locations. Designed to operate on single-phase 120-240V AC, the 60-minute timer features two push buttons and solid-state construction. This device is made out of copper-free aluminum and takes on a NEMA rating for durability in rugged environments. The EXP-AT-SG-1PH-MIN.60-120.240V-15A offers robust timing control of equipment. This unit is equipped with two push buttons: green (start) and red (stop/reset). With a durable solid-state design, the device is factory-configured for 60 minutes. Operators can start the 15-amp timer by pressing the green push button. Pressing the red push button stops the circuit and resets the countdown back to the full 60 minutes. Pressing the green push button again will start the 60-minute countdown (this action does not pause the timer). The EXP-AT-SG-1PH-MIN.60-120.240V-15A is constructed of copper-free cast aluminum for superior performance and durability. These explosion proof units are not factory sealed and require external sealing fittings. Operating temperature is -40 °F to 104 °F (-40 °C to 40 °C). The explosion proof timer is designed for Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III environments. Voltage: The explosion proof timer operates on single-phase 120-240V AC. Hubs: This explosion proof unit is available with either 1/2" or 3/4" NPT tapped hubs. The conduit openings are provided on the top and bottom of the unit in feed through versions, while dead-end versions have a single conduit hub, providing easy and secure connection to main power line supplies. Mounting: Four external mounting lugs provide simple and secure mounting of the unit to walls and flat surfaces. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present. This switch can be used with fans, motors, heaters, and lighting (including incandescent, halogen, compact fluorescent, tungsten, and LED lighting loads). |
