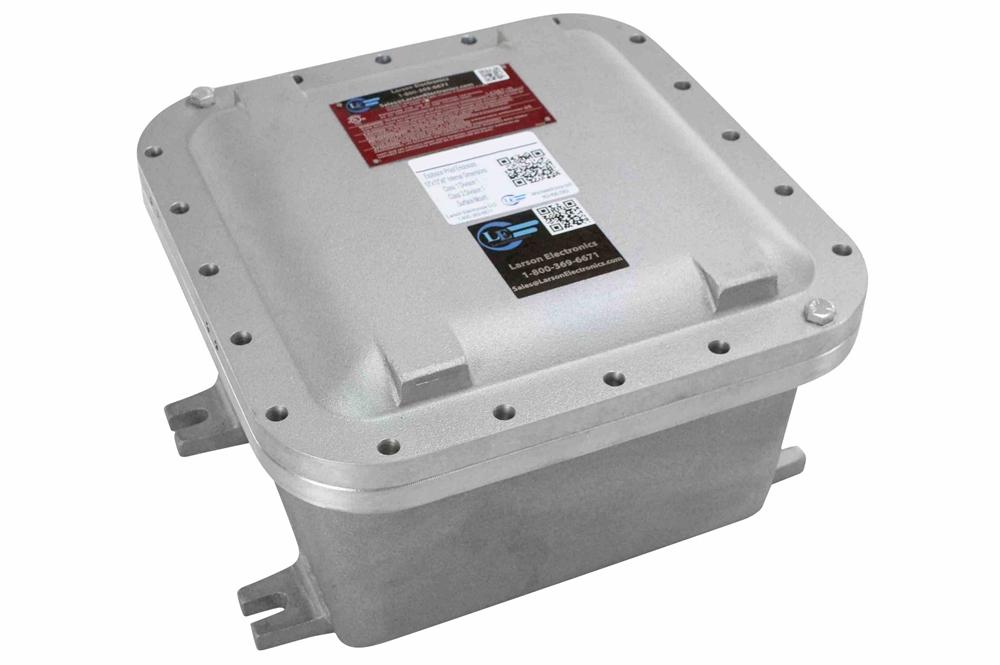

C1D1 Explosion Proof Battery Charger - 240V AC Input, 12/24V DC Output - 13A - (2) 3/4" Hubs - N4X

LARSON ELECTRONICSSKU: PL3-EXP-BCHR-240V-2X0.75-13A-4X
filler

Precio:
Precio de venta$10,152.00
 Más opciones de pago

Descripción

Specifications / Additional Information
EXP-BCHR-240V-2X0.75-13A-4X Battery Charger Ratings
Listing: NRTL Listed for United States, Canada Class I, Division 1
Unit Type: Explosion Proof Battery Charger Class II, Division 1
External Dimensions: 13.25" x 17.25" x 8.70" NEMA 4X
Weight: 62 lbs
Watts: 312W (Max)
Input Voltage: 240V AC @ 50-60 Hz
Charging Voltage: 12/24V DC
Low Voltage Detection: 2V (12V), 2V (16V), 14V (24V)
Efficiency: 85%
Back Current Drain: <5mA
Charger Type: 8 Step, Smart Charger
Battery Types: 12V, 16V, 24V
Battery Chemistries: Wet, Gel, MF, CA, EFB, AGM, LIB
Battery Capacity: Up To 500Ah (12V), Up To 250Ah (24V), Maintains All Battery Sizes
Amps: 13A
Ambient Operating Temp: 0°C to +40°C
Materials: Cast Aluminum, Stainless Steel
Mount: Surface
Connections: Terminal Strips (Input), (4) Terminal Strips (Output)
Hubs: (2) 3/4" NPT
' Product Overview '
The Larson Electronics EXP-BCHR-240V-2X0.75-13A-4X Explosion Proof Battery Charger is designed for battery repair, charging, restoration and maintenance in Class I, Division 1 and Class II, Division 1 environments. The NEMA 4X-rated unit accepts 240V AC @ 50-60 Hz input and provides 12-24V DC output. Constructed of cast aluminum, operators can access terminal strips for completing connections to a 240V power source (input) and a customer-provided battery (output). The EXP-BCHR-240V-2X0.75-13A-4X is a compact, explosion proof battery charger for combustible environments and work sites. This unit offers 240V AC input voltage @ 50-60 Hz. A low voltage range of 12-24V DC is provided on the output side with maximum 13 amps. The explosion proof charger is compatible with the following types of batteries: wet, gel, MF, CA, EFB, AGM and LIB. During use, the charger operates at 85% efficiency. Suitable for battery repair or recovery, this unit is designed for batteries up to 500 aH (250 aH for 16/24V). During operation, the explosion proof charger uses high-frequency switch mode technology for optimized AC to DC conversion. This Class I, Division 1 and Class II, Division 1 device is safe to run continuously and can be left connected at all times. Smart charging capabilities ensure the connected battery is not damaged during the process, resulting in minimized risks related to combustion. The device is constructed of cast aluminum, with stainless steel hinges and bolts. A NEMA 4X rating ensure safe use in indoor and outdoor locations, as well as protection from water spray, moisture, dust, corrosion and external ice formation. Wiring: The EXP-BCHR-240V-2X0.75-13A-4X contains terminal strips for connecting 240V to the explosion proof charger (input). On the output side, four terminal strip connections are available for connecting customer-provided batteries. Two, 3/4" NPT hubs are accessible for completing connections to the explosion proof device. Operators can mount the battery charger on flat surfaces and walls via four openings at each corner of the explosion proof enclosure. Mounting: Operators can mount the battery charger on flat surfaces and walls via four openings at each corner of the explosion proof enclosure. Applications: Battery charging, battery maintenance and repair, combustible work sites, flammable environments, cars, standby/emergency generators, power management, generators, pumps, field engineering, automated systems, engine battery charging and more.
