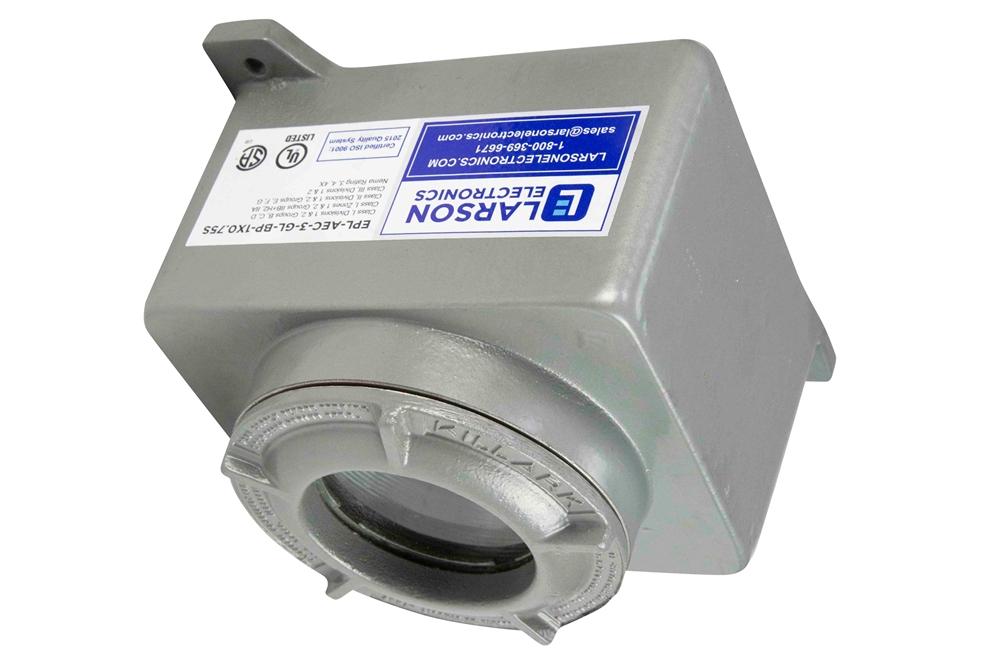

Explosion Proof Enclosure for Raspberry Pi - 3" Lens - Class I, II, III - ATEX/IEC - (2) 3/4" Hubs

LARSON ELECTRONICSSKU: PL3-EXP-DBE-RBP-3-GL-BP-2X0.75EW
filler

Precio:
Precio de venta$2,296.00

Descripción

Specifications / Additional Information
EXP-DBE-RBP-3-GL-BP-2X0.75EW Explosion Proof Device Box Instrument Enclosure Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, Asia Class I, Divisions 1 & 2, Groups B, C, D
Device Type: Explosion Proof Raspberry Pi Enclosure Class I, Zones 1 & 2, Groups IIB+H2, IIA
External Dimensions: 8.375"L x 6"W x 6.875"H Class II, Divisions 1 & 2, Groups E, F, G
Internal Dimensions: 4.63" x 5.75" x 3.28" Class III, Divisions 1 & 2
Internal Volume: 95 cu. in. NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G)
Lens Opening: 3" ATEX/IEC Ex
Weight: - Ex d IIC T6 or T5
Compatible Raspberry Pi Models: 4 Model B, 3 Model A+, 3 Model B+, 3 Model B, 2 Model B, 1 Model B+, 1 Model A+, Zero, Zero W Ex tD A21 IP66 T80°C or T90°C IP66
Material: Copper-free Aluminum Ta = -20°C to +60°C
Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish Internal Aluminum Mounting Plate
Lens Material: Tempered Soda Lime Glass
Mounting: Surface
Design: Single Box w/ Lens Cover
Total Hub Quantity: 2
North Side Hubs: -
South Side Hubs: -
East Side Hubs: (1) 3/4"
West Side Hubs: (1) 3/4"
Bottom (Back/Base) Hubs: -
Maximum Conduit Size: 2"
' Product Overview '
The EXP-DBE-RBP-3-GL-BP-2X0.75EW from Larson Electronics is an Explosion Proof Enclosure for Raspberry Pi, which allows the device to be used in hazardous locations, confined spaces and industrial facilities. This unit contains a 3" lens opening and is constructed of copper-free aluminum. The explosion proof enclosure may be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. ***Raspberry Pi is not included*** The EXP-DBE-RBP-3-GL-BP-2X0.75EW protects Raspberry Pi computer boards from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This unit is equipped with a 3" lens opening and 105 cubic inches of volume. The spacious enclosure provides room for extension modules to be mounted internally. Compatible Raspberry Pi models include the following: 4 Model B, 3 Model A+, 3 Model B+, 3 Model B, 2 Model B, 1 Model B+, 1 Model A+, Zero or Zero W. Constructed of copper-free aluminum, the ATEX/IECEX-rated enclosure is protected by a tempered soda lime glass lens. This unit is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Cast mounting lugs are available for mounting. Hubs: This enclosure contains one 3/4" NPT hub at the east side and one 3/4" NPT hub at the west side, which can be used to pass input and output cables during installation. The explosion proof device box is compatible with conduit sizes up to 2". Applications: Raspberry Pi, hazardous locations, industrial sites, automation, remote control, PLCs, Modbus, manufacturing, processing, networks and more.
