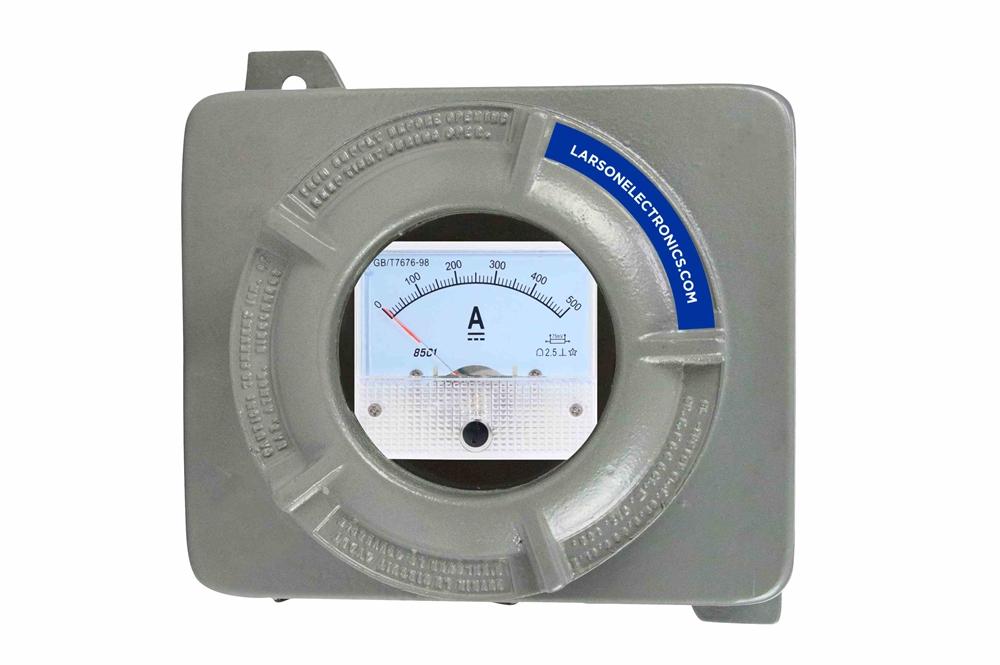

Explosion Proof Analog Ammeter - C1D1/C2D1- 0-500 Amps - 10V-600V - 1PH - Feed Thru
Explosion Proof Analog Ammeter - C1D1/C2D1- 0-500 Amps - 10V-600V - 1PH - Feed Thru
| EXP-ED-AM-AC-500A-1PH-V1 Explosion Proof Amp Meter - AC | Ratings/Approvals |
| NRTL Listed for United States, Canada, European Union, Asia | Class I, Division 1 & 2, Groups B, C, D |
| Device Type: Explosion Proof Analog AC Ammeter | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
| Dimensions: 9.13" x 9.63" x 7.18" | Class II, Division 1 & 2, Groups E, F, G |
| Lens Opening: 5.38" | Class III, Division 1 & 2 |
| Weight: - | NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Voltage: 120V AC | ATEX/IEC Ex |
| Phase: Single Phase | Ex d IIC T6 or T5 |
| Ammeter Accuracy: 2.5% | Ex tD A21 IP66 T80°C or T90°C IP66 |
| Ammeter Range: Short-scale 1-80 Amps | Ta = -20°C to +60°C |
| Voltage Range: 10V - 600V | Â |
| Overload: 1.2x for 2 Hours + 10x for 5 Seconds (Ammeter) | |
| Power: 0.5VA; 1.5VA (Ammeter) | Â |
| Operating Temperature: -20°C to +65°C |  |
| Storage Temperature: -30°C to +70°C |  |
| Materials: Copper-free Aluminum | Â |
| Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish | Â |
| Lens Material: Tempered Soda Lime Glass | Â |
| Mounting: Surface | |
| AC Connections: Terminals | |
| Hub Configuration: Feed Through | Toll Free:Â 1-800-369-6671 |
| Hub Qty/Location: (2) - (1) North + (1) South Side | |
| Hub Size Options: 1/2" NPT or 3/4" NPT | |
| Color: Gray |
| The EXP-ED-AM-AC-500A-1PH-V1 from Larson Electronics is an Explosion Proof Analog Ammeter that is designed for use in hazardous locations, confined spaces and industrial facilities. This NEMA-rated unit operates on single-phase 120V AC and offers up to 2.5% accuracy during ammeter operation. Constructed of copper-free aluminum, the explosion proof device contains a 5.38" lens opening for viewing meter readings. The EXP-ED-AM-AC-500A-1PH-V1 offers accurate AC readings of amps inside flammable facilities. Designed to operate on single-phase 120V AC, the ammeter provides readings with 2.5% accuracy, within a short-scale range of 0-500 amps. The ammeter operates on 10V-600V. Overload protection is set at 1.2x for 2 hours and 10x for 5 seconds when using the ammeter. Overload protection for the ammeter feature is set at 1.2x for 2 hours and 2x for 5 seconds. Constructed of copper-free aluminum, the ATEX/IECEx-rated device is protected by a 5.38" tempered soda lime glass lens for viewing meter readings in real-time. This explosion proof unit is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Hubs:Â The EXP-ED-AM-AC-500A-1PH-V1 comes in a feed-thru configuration, with two accessible hubs at the (1) north and (1) south side of the unit. Hub size options include: 1/2" NPT or 3/4" NPT. Operators may access terminals for completing electrical connections. Mounting:Â This explosion proof device is compatible with surface-mounting applications. Cast mounting lugs are available for seamless installations at the combustible site. Applications:Â Amp readings, electrical monitoring, hazardous locations, confined spaces, industrial work sites, inspections and more. |
