Explosion Proof Emergency Shower and Eyewash Sign - C1D1 - 120-277V - Emer. Battery Backup - IP65

LARSON ELECTRONICSSKU: PL3-EXP-EMG-EXT-LE6-1L-ESE
filler

Precio:
Precio de venta$3,806.00

Descripción

Specifications / Additional Information
EXP-EMG-EXT-LE6-1L-ESE Explosion Proof Sign w/ Emergency Battery Backup Ratings/Approvals
Listing: NRTL Listed for United States and Canada Listed for United States & Canada
Lamp Technology: LED Class I, Divisions 1 & 2, Groups B, C, D
Dimensions: 25€H x 13€W x 10.5€D Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: - Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 120-277V AC Class III, Divisions 1 & 2
Total Watts: 1.1W NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
Total Lumens: - NRTL Listed to UL 508A
Luminous Efficacy: - NRTL Listed to UL 1203
Lamp Life: 50,000+ Hours NRTL Listed to CSA C22.2 No 14, 25, 30
Colors: Red, Green, Blue or Amber 3 Hour Emergency Runtime
Color Rendering Index: - Self-Testing Unit
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Back Illuminated Sign Panel
Text Label: Emergency Shower and Eyewash
Arrow Direction: Right, Left, Up, Down, Left/Right or No Arrow
Power Efficiency: -
Power Factor: -
Battery Backup Runtime: 3 Hours
Battery Backup: Nickel Cadmium Battery Pack
Amperage: 0.009A @ 120V, 0.0045 @ 240V, 0.0039A @ 277V
Ambient Operating Temp: 0°F to +113°F
Housing Material: Copper-free Aluminum
Housing Finish: -
Lens Material: -
Mounting:  Ceiling Mount, Pendant Mount, Wall Mount
Wiring Hub: 3/4" NPT
' Product Overview '

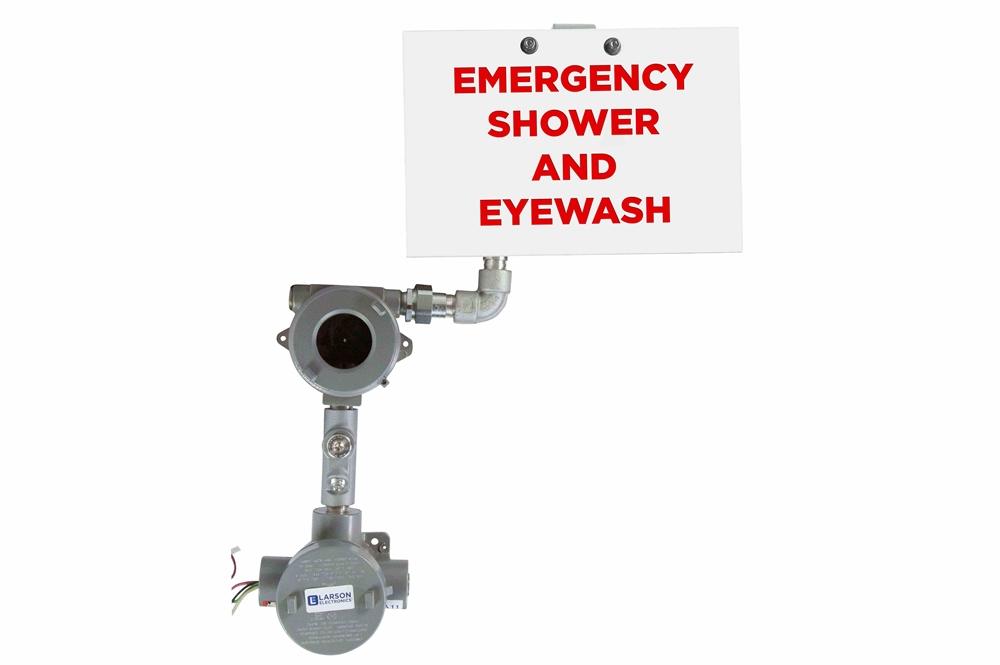

The EXP-EMG-EXT-LE6-1L-ESE Explosion Proof Emergency Shower and Eyewash Sign with battery backup from Larson Electronics is Class I, Divisions 1 & 2, Groups B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F, G and Class III Divisions 1 & 2 rated for hazardous areas. Equipped with a 1.1 watt LED lamp and self-diagnostic system, this failsafe sign guides workers to emergency stations or facilities. The single-sided exit sign is equipped with a maintenance-free 3.6 volt NiCad battery, which offers up to 3 hours of battery backup operation. The EXP-EMG-EXT-LE6-1L-ESE is an effective option for operators who wish to ensure their hazardous workspaces employ the most up to date and reliable means of marking emergency facilities. This self-testing unit is offered with the following arrow options to display the general direction of the emergency shower and eyewash station: right, left, up, down, left/right or no arrow.  Under normal conditions this emergency exit lamp uses normal external power to illuminate its 1.1-watt LED array, which clearly highlights "Emergency Shower and Eyewash". We provide this explosion proof sign in the following colors: red, green, blue or amber. In case of power outages or in any situation where power is interrupted, this unit automatically switches to a battery backup which will power the unit for three hours or until power is restored. This fixture has three mounting options and is multi-voltage capable. Larson Electronics can customize this emergency sign to suit various operating requirements and safety standards. Such custom features include: custom text, images, designs and languages. We can also extend the functionality of the explosion proof unit by adding lights, sensors, solar power, strobes, horns and more. Custom features may incur additional cost. Please contact us for more details. Light Features: The EXP-EMG-EXT-LE6-1L-ESE features a backlit LED array that each contain eight LEDs, drawing a total of 1.1 watts. This explosion proof emergency LED fixture features brown-out, short circuit and voltage surge protection and has a low voltage disconnect which prevents damage to the battery caused by a deep discharge. This self-testing LED fixture will run for a minimum of 3 hours after a power failure thanks to the maintenance-free 3.6 volt NiCad battery. After emergency use, the battery takes 24 hours to completely recharge. Emergency Operation: The EXP-EMG-EXT-LE6-1L-ESE features a backup battery that will run the fixture for at least 90 minutes following a power outage or any other loss of power (our battery backup mode will power the lamp for three hours, longer than the requirements specified in the NFPA 101). The included emergency backup battery is a 3.6 volt NiCad rechargeable unit. These batteries are maintenance-free and have a life expectancy of 15 years while being able to operate in a wide variety of conditions including in temperatures ranging from 0°F to +113°F.
Wiring: The EXP-EMG-EXT-LE6-1L-ESE explosion proof emergency self-testing LED fixture is NOT a factory sealed fixture. Operators will bring their own wiring to a junction box and complete their connects. The operator will also provide their own seal off for this fixture. The EXP-EMG-EXT-LE6-1L-ESE operates on 120-277V AC at 60Hz. Mounting: The EXP-EMG-EXT-LE6-1L-ESE is designed to be surface mounted to flat surfaces such as walls. The unions connecting the upper lamps to the lower indicator light enclosure allow for both horizontal and vertical adjustment. This gives operators the ability to adjust the light to their specific mounting location for ideal light coverage during a power failure or power outage. Suggested Applications: The EXP-EMG-EXT-LE6-1L-ESE is designed for marking emergency facilities or stations within hazardous environments.
