45kW Explosion Proof Soft Starter - 60 HP, 90 Amps - 460V (430-525V) - 3PH Delta, 3-Wire - 50/60 Hz
45kW Explosion Proof Soft Starter - 60 HP, 90 Amps - 460V (430-525V) - 3PH Delta, 3-Wire - 50/60 Hz
| EXP-MTSTR-3P-460-60HP-90A-DCM Explosion Proof Soft Starter | Features/Ratings |
| Unit Type: Reduced Voltage Starter | Class I Divisions 1 & 2 |
| External Dimensions: 16.38"-L x 22.38"-H x 11.06"-D | Class II Divisions 1 & 2 |
| Weight: - | IP20 Enclosure |
| Capacity: 60 HP | Digital Panel Interface |
| Power: 45 kW | Protective Functions |
| Voltage: 460 V Nominal (430V-525V) | |
| Phase: 3PH Delta, 3-Wire Configuration |  |
| Frequency: 50/60 Hz |  |
| Amps: 90A (Secondary) |  |
| Starting Times: 20x per hour (Maximum) |  |
| Adaptive Motor: Squirrel-cage 3PH Asynchronous |  |
| Control Modes: Operation Panel Control, Operation Panel + External Control, External Control, External Control + COM Control, Operation Panel + External + COM Control, Operation Panel + COM Control, COM Control, No Start or Stop Operation |  |
| Start Modes: Current-limiting to Start, Voltage Ramp to Start, Torque Control + Current-limiting to Start, Torque Control + Voltage Ramp to Start, Current Ramp to Start, Voltage Current-limiting Double Closed-loop Start |  |
| Stop Modes: Soft Stop, Free Stop |  |
| Vibration: <0.5G | |
| Operating Temp: -30C - +55C | |
| Humidity: 90% RH w/o Dew Condensation | Toll Free: 1-800-369-6671 |
| Altitude: Below 3,280.84 Feet | Intl: 1-214-616-6180 |
| Mount: Wall or Surface | |
| Color: Grey |
Made in the USA

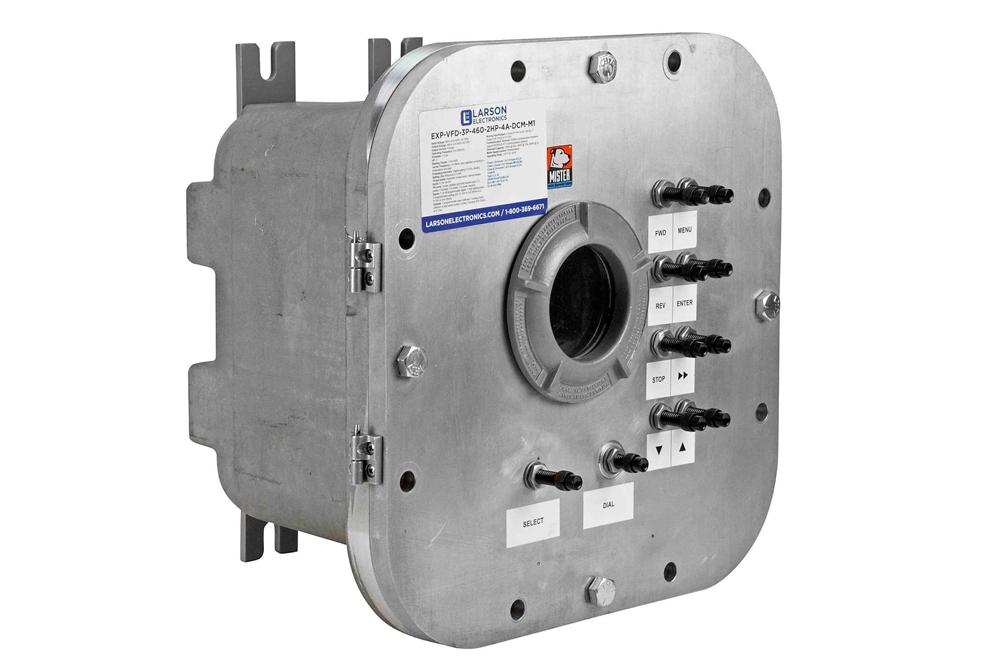

The EXP-MTSTR-3P-460-60HP-90A-DCM from Larson Electronics is an Explosion Proof Soft Starter that is rated for use in Class I Divisions 1 & 2 and Class II Divisions 1 & 2 hazardous environments. It provides reduced voltage starting solutions for industrial equipment. This 60 HP unit offers compatibility with 460V (nominal, range of 430V-525V) three-phase delta, 50/60 Hz. Multiple start, stop and control modes are available during use, via a digital panel. Operators can mount the unit on walls or surfaces, via four screw holes at every corner of the soft starter.
The EXP-MTSTR-3P-460-60HP-90A-DCM is a reduced voltage explosion proof starter, which can be used to soft start and preserve industrial motors. This 60 HP unit is compatible with 460V (nominal, range of 430V-525V) three-phase delta, 50/60 Hz. The 90-amp soft starter is equipped with a squirrel-cage three-phase asynchronous motor. Starting times should not exceed 20 attempts per hour.
The reduced voltage starter is protected by an IP20-rated enclosure. Cooling is provided by natural wind, making the unit suitable for indoor locations with adequate ventilation. The presence of corrosive gas or conductive heat may hinder the performance of the soft starter. The EXP-MTSTR-3P-460-60HP-90A-DCM is designed for use at altitudes below 3,280.84 feet (1,000 meters). Above this range, the rate of power must be increased during operation.
This explosion proof industrial soft starter features the following operating modes and protective functionalities:
|
