10HP Explosion Proof Pressure Washer - C1D1 - 208V 3PH 60Hz - 5 GPM @ 3000 PSI - Cast Aluminum

LARSON ELECTRONICSSKU: PL3-EXP-PW-208.3P-10HP-3K.PSI
filler

Precio:
Precio de venta$136,778.00

Descripción

Specifications / Additional Information
EXP-PW-208.3P-10HP-3K.PSI Explosion Proof Pressure Washer Ratings
Unit Type: Electric Hot Pressure Washer Class I, Div 1 Groups C, D
Dimensions: 80" x 36" x 55" Class II, Groups F, G
Weight: 1,250 lbs OSHA Reg 1910.303(a)
Voltage: 208V 3PH 60 Hz Standard Trigger-off Gun
Amps: 200A Detergent Injector
HP: 10
Motor: 1,750 RPM (TEFC) w/ 1.15 Service Factor Triplex
Electric Heating: (2) 30 kW
GPM: 5 @ 3,000 PSI
Temperature: 140°F (60°C)
Wash Tip Angles: (3) 0°, 15°, 25°
Protection: Circuit Breakers - Motor, Primary Transformer, Heating Element Circuits
Monitoring: High Temperature Limit Switch, Pressure Relief Valve, Water Flow Switch, Temperature/Pressure Gauges, Hour Meter, Shutdown Timer Toll Free: 1-800-369-6671
Materials: Cast Aluminum, Steel Frame w/ Powder Coat Finish Intl: 1-214-616-6180
Mount: Skid Mount w/ Lifting Bar, (2) Eyelets
Hose: 50` Wire-braid (0.375")
' Product Overview '

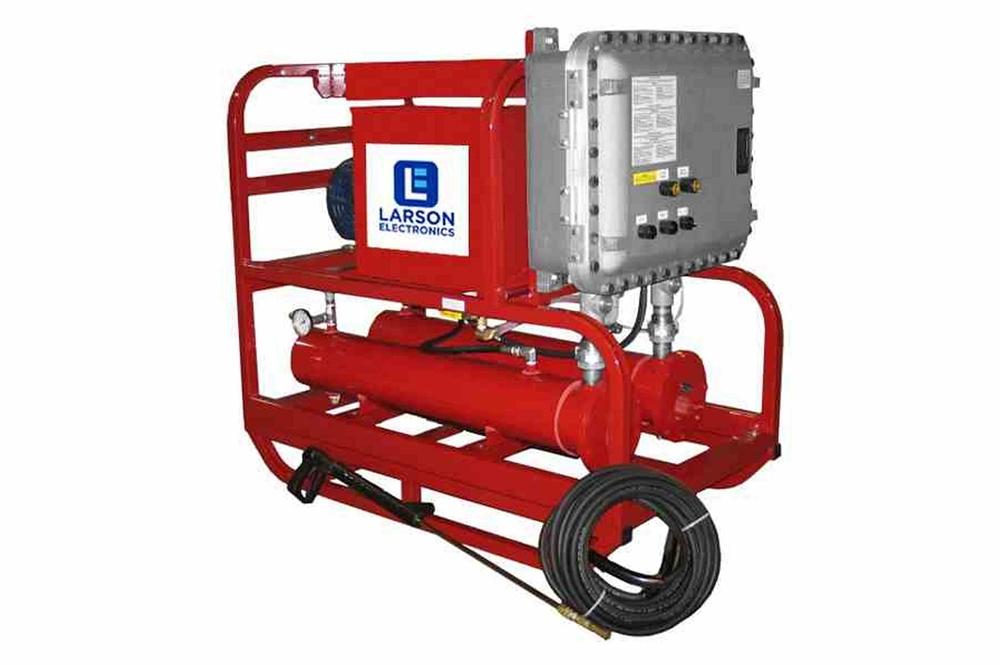

Made in the USA The Larson Electronics EXP-PW-208.3P-10HP-3K.PSI Explosion Proof Pressure Washer is designed for Class I, Division 1 and Class II flammable sites and environments. The electric hot pressure washer features a 10 HP, TEFC motor which offers 5 GPM @ 3,000 PSI. Constructed of cast aluminum and steel (frame), the unit is compatible with 208V AC 60 Hz three-phase power. The EXP-PW-208.3P-10HP-3K.PSI is a powerful, explosion proof high-pressure washer for combustible facilities. This all-electric unit is compatible with 208V AC 60 Hz three-phase power. Equipped with a 10-HP, totally enclosed, fan-cooled (TEFC) motor, the device offers 5 GPM @ 3,000 PSI during use. Circuit breakers are available for the motor, primary transformer and heating element circuits. This explosion proof hot pressure washer provides a water temperature of 140°F, as well as three wash tip angles: 0°, 15° and 25°. The explosion proof pressure washer is constructed of cast aluminum with a powder coat paint finish for durability. Protective features include the following: high temperature limit switch, pressure relief valve, water flow switch, temperature and pressure gauges, hour meter and shutdown timer. For safety during operation, the nozzle gun features a pistol-grip handle and a standard shut-off mechanism with pressure lance. Mounting: The EXP-PW-208.3P-10HP-3K.PSI is a skid-mounted unit for seamless transportation around the work site. Equipped with a heavy-duty steel frame, operators are provided access to a lifting bar and dual lifting eyes. Applications: High-pressure cleaning, wash-down, deposit/coating removal, hydro-blasting, hydro-demo, explosive work sites, oil and gas, industrial, construction and more.
