Explosion Proof Air Flow Sail Switch - Class I Divisions 1 & 2 - Class II Division 1

LARSON ELECTRONICSSKU: PL3-EXP-SNR-FSS-AFPS-R1
filler

Precio:
Precio de venta$4,516.00

Descripción

Specifications / Additional Information
EXP-SNR-FSS-AFPS-R1 - Explosion Proof Air Flow Sail Switch Ratings/Approvals
Listing: United States NRTL Listed for United States
Dimensions: 4.6"-D x 7.30"-W x 9.70"-H Class I, Divisions 1 & 2, Groups C, D
Weight: 6 lb Class II, Division 1, Groups E,F,G
Voltage Rating: 120-240 V AC NEMA 7
Current Rating: 7.4 Amps @ 120 V AC; 3.6 Amps @ 240 V AC NEMA 9
Switch Type: Air Flow Sail Special Orders - Requirements
Relay Type: SPDT
Media Temperature: 275°F (135°C) Max Toll Free: 1-800-369-6671
Ambient Operating Temperature: 120°F (49°C) Max Intl: 1-214-616-6180
Connection: 1/2" Female Conduit
Mounting: Vertical (Preferred) or Side Mount
' Product Overview '

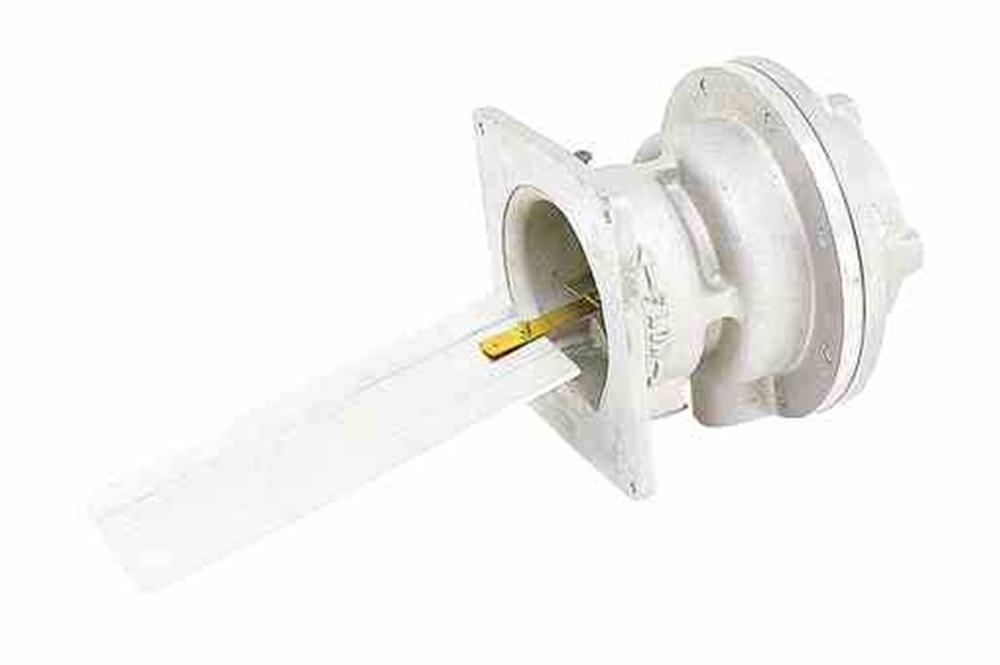

The EXP-SNR-FSS-AFPS-R1 from Larson Electronics is an Explosion Proof Air Flow Sail Switch that proves flow within ducts located in hazardous locations. It is rated for use in Class I Divisions 1 & 2 Groups C & D and Class II Division 1 Groups E, F, & G rated environments. The EXP-SNR-FSS-AFPS-R1 features 1/2" female conduit for installing either vertically (preferred) in air ducts or from the side. This air flow sail switch measures 9.7"H x 7.3"W x 4.6"D and weighs 6 pounds. Flow Rates Horizontal Duct Only
    Top Mount (Preferred) Side Mount
Minimum Flow 300 FPM 400 FPM
Minimum No Flow 100 FPM 100 FPM
Maximum Flow 1900 FPM 1900 FPM
Maximum No Flow 500 FPM 900 FPM
