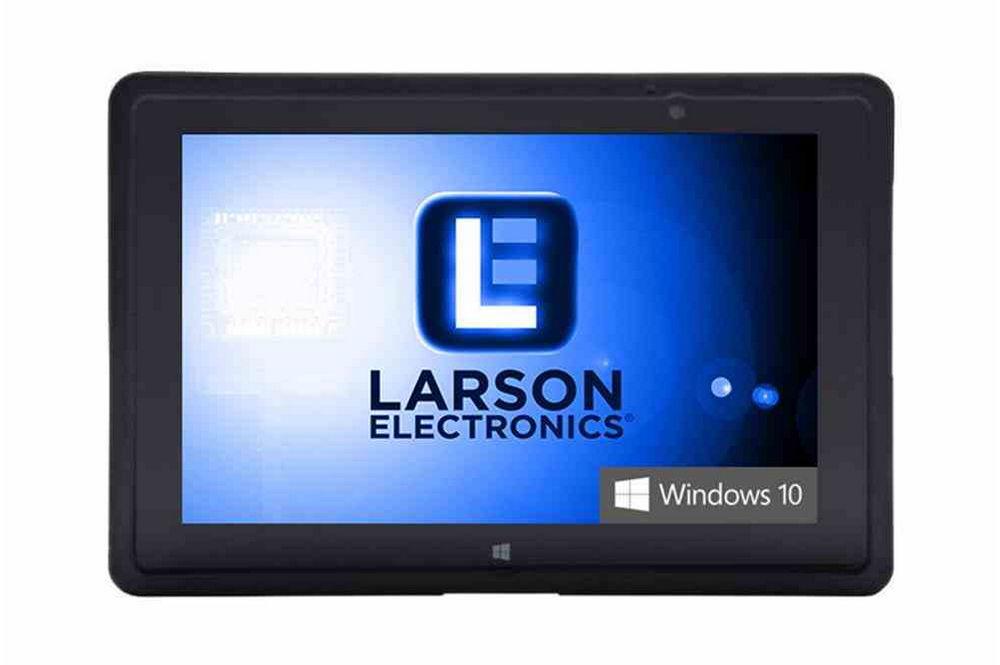

Explosion Proof Tablet - C1D1, ATEX/IECEx Zone 1 - 10.1" - 128GB, 4GB RAM - Windows 10 - IP65
Explosion Proof Tablet - C1D1, ATEX/IECEx Zone 1 - 10.1" - 128GB, 4GB RAM - Windows 10 - IP65
| EXP-TBLT-10I-W10-128G-4G Explosion Proof Tablet | Ratings |
| Unit Type: Explosion Proof Tablet | Class I, Divisions 1 & 2, Groups A,B,C,D |
| Dimensions: 10.75" x 7.28" x 0.66" | Class II, Divisions 1 & 2, Groups E,F,G |
| Weight: 2.6 lbs | Class III, Divisions 1 & 2 |
| Screen Size/Type: 10.1" AHVA Full HD Plus | CI Z0 Gr IIC T4 IP65, Tamb= -10°C…+50°C |
| Resolution: 1920 x 1200 | Ex ib IIC T6 Gb, Tamb = -10°C…+50°C |
| Cameras: (1) 8.0 MP Autofocus, Rear-facing Camera w/ Flash, (1) 2.0 MP Front-facing Camera | Ex ib IIIC T85°C Db IP6X, Tamb = -10°C…+50°C |
| Audio/Microphones: Stereo Speakers, Front/Rear Microphones | Ex ib I Mb, Tamb = -10°C…+50°C |
| CPU: Intel Quad-Core Atom Processor | Ex Il 2G Ex ib IIC T6 Gb, Tamb = -10°C…+50°C |
| Storage: 128GB | Ex Il 2D Ex ib IIIC T85°C Db IP6X, Tamb =-10°C…+50°C |
| RAM: 4GB | Ex I M2 Ex ib I Mb, Tamb = -10°C…+50°C |
| Operating System: Windows 10 | Intrinsically Safe |
| Connectivity: Wi-Fi 802.11ac/802.11 a/b/g/n Dual Band (2.4GHz and 5GHz), Bluetooth 4.0, NFC, Intel Wireless Display, 4G LTE | Works w/ Gloved Hands |
| Location: GPS/GLONASS | |
| Sensors: Ambient Light, Accelerometer, Gyroscope, E-Compass, SAR Proximity Sensor | |
| Ports: (1) USB 2.0, (1) USB 3.0 and (1) HDMI on System Connector, (1) Micro USB for Charging, (1) microSDXC Card Slot, (1) Headset Jack | Toll Free: 1-800-369-6671 |
| Charger: 110V AC Outlet Charger w/ USB Cable (Non-explosion Proof) | Intl: 1-214-616-6180 |
| Runtime: 12 Hours (Web Browsing) | |
| Accessories: Leather Case, Stylus, Glass Screen Protector, Non-explosion Proof Charge Station |
| The EXP-TBLT-10I-W10-128G-4G from Larson Electronics is an Explosion Proof Tablet for flammable work sites. The intrinsically safe device features a 10.1" touchscreen and 128GB of storage. Powered by an Intel Quad-Core Atom processor, 4GB of RAM is available for multi-tasking. This IP65-rated unit offers a runtime of 12 hours for web browsing applications and supports Wi-Fi (2.4GHz and 2.5Ghz), 4G LTE, Bluetooth 4.0 and NFC. Multi-touch capabilities work with gloved hands. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The EXP-TBLT-10I-W10-128G-4G is a compact tablet with explosion proof and intrinsically safe features. Operating on Windows 10, the unit features a 10.1" display with a 1920 x 1200 resolution. The device is powered by an Intel Quad-Core Atom processor and offers 4GB of RAM along with 128GB of storage. Ports around the tablet includes the following: USB 2.0, USB 3.0 and HDMI on system connector, micro USB, microSDXC card slot and a headset jack. The explosion proof unit features several cutting-edge features for image/HD video capturing and connectivity. Operators can use a rear-facing 8-megapixel camera with flash and a front-facing 2-megapixel camera to capture images/HD videos at the work site. Wi-Fi 802.11ac/802.11 a/b/g/n dual band (2.4GHz and 5GHz), 4G LTE, Bluetooth 4.0, NFC and Intel Wireless Display are available for wireless connections. The following sensors can be found on this tablet: ambient light sensor, accelerometer, gyroscope, e-compass, SAR proximity sensor. This IP65-rated device supports GPS and GLONASS for location services. Wiring/Power: The EXP-TBLT-10I-W10-128G-4G comes with a standard outlet charger and USB cable for charging in non-hazardous locations. This intrinsically safe device comes with a leather case, stylus, glass screen protector and non-explosion proof 110V AC charge station. Applications: Inspections, connectivity, documentation, site analysis, observation, surveying, monitoring of industrial drone fleets, security, camera systems, image capturing, hazardous locations, manufacturing, oil and gas, flammable work sites, agricultural operations, grain storage, woodshops, pipelines, NDT, military, law enforcement and more. |
