Explosion Proof Thermostat - C1D1/C2D1 - Mercury Free - 20M 16/3 SOOW Cord w/ EXP Cord Cap
Explosion Proof Thermostat - C1D1/C2D1 - Mercury Free - 20M 16/3 SOOW Cord w/ EXP Cord Cap
| EXP-TSTAT-250V-86F-20M-CE16 Explosion Proof Thermostat | Features/Ratings |
| Unit Type: Explosion Proof Thermostat | Class I, Divisions 1 & 2 Groups C & D |
| Dimensions: 5.9"- L, 4.3"- D | Class I, Zones 1 & 2 Groups IIA & IIB |
| Weight: 3 lbs | Class II, Division 1 Groups E, F & G |
| Voltage: 250V AC (Maximum) | Class II, Division 2 Groups F & G |
| HP: 1/2 HP @ 125V AC, 1 HP @ 250V AC | Class III |
| Switch Type: SPDT Snap Action | NEMA 7, 9 |
| Temperature Range: -49°F to 176°F (-45°C to 80°C) | CFC and Mercury Free |
| Adjustment Range: 36°F to 82°F (2°C to 28°C) | Corrosion Resistant |
| Deadband: 2.5°F (1.5°C) | |
| Materials: Precision Die-Cast Components | |
| Mounting: Wall or Surface | Toll Free:Â 1-800-369-6671 |
| Conduit Connection: 3/4" Female NPT | |
| Cord: 20 Meters of 16/3 SOOW Cord w/ EXP Cord Cap | |
| Cord Cap: 16A IEC 60309 EXP [200-250V] |

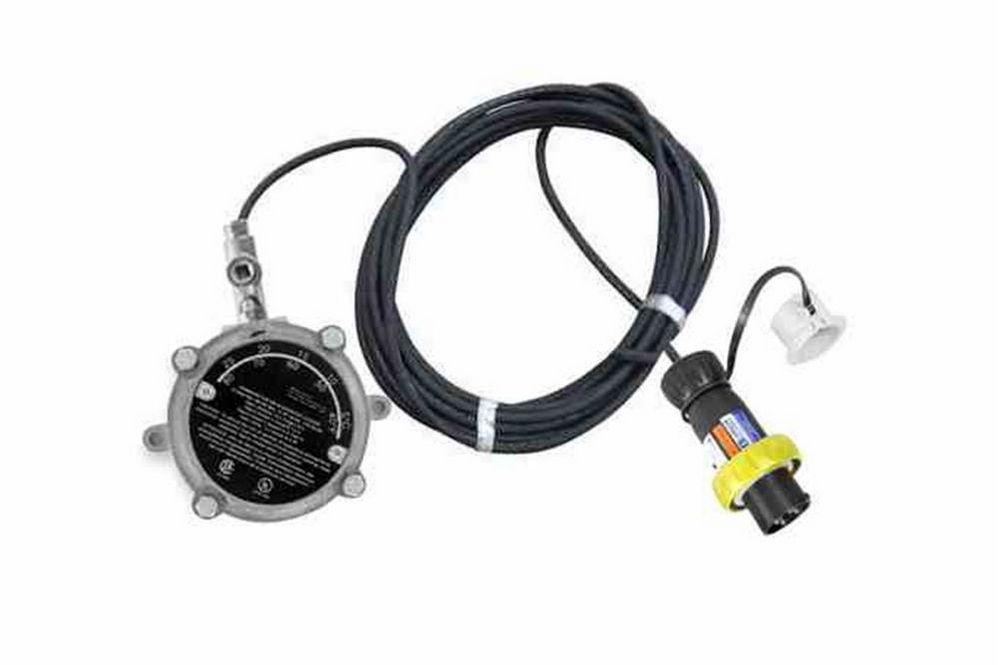

| The Larson Electronics EXP-TSTAT-250V-86F-20M-CE16 explosion proof thermostat is designed for temperature control in industrial facilities where flammable gases, vapors or dust are or may be present. This device is adjustable using a set point knob system, which is powered by an SPDT snap action switch. Equipped with a 20-meter 16/3 SOOW cord and an explosion proof cord cap, the unit features a temperature limit range of -49°F to 176°F (-45°C to 80°C) and is rated at 250V AC (maximum). The EXP-TSTAT-250V-86F-20M-CE16 offers accurate temperature control for heating, cooling and ventilation systems in hazardous locations. Featuring an SPDT snap action switch, this unit is rated at 250V AC (maximum). Operators may use an adjustable set point knob to configure the explosion proof thermostat, at a range of 36°F and 82°F (2°C to 28°C). The device is constructed of precision die-cast and corrosion resistant components for durability. To ensure safety, the unit does not contain any exposed copper or brass and mercury. When mounting the explosion proof thermostat inside the hazardous location, the unit must be positioned five feet above the floor. This improves the accuracy of temperature readings and reduces the possibility of false calculations due to the presence of nearby hot or cold elements. Operators may mount the device to walls or compatible surfaces using four cover bolts. This unit is equipped with 20 meters of 16/3 SOOW cord and a 16-amp 200-250V IEC 60309 explosion proof cord cap. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, agricultural sites, grain processing centers and other facilities where hazardous substances are handled or stored. |
