Explosion Proof 1080p Analog Observation Camera - Magnet Mount - Day/Night Infrared - 120/240V

LARSON ELECTRONICSSKU: PL3-EXPCMR-ALG-1080P-M-1227
filler

Precio:
Precio de venta$5,232.00

Descripción

Specifications / Additional Information
EXPCMR-ALG-1080P-M-1227 Explosion Proof Magnetic Mount Remote Observation Camera Quick Summary
Dimensions: 8"L x 6"W x 9"H Class I, Divisions 1 & 2, Groups B, C, D
Camera Weight: 8 lbs Class I, Zones 1 & 2, Groups IIB+H2, IIA
Total Watts: 3.5W Max Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 100-240 V 50/60Hz (primary), 12 V DC (secondary) Class III, Divisions 1 & 2
Video Framerate: 1080p @ 30fps Ex db IIC Gb
Image Sensor:  1/2.7" Progressive Scan CMOS Ex tb IIC Gb Db IP66
Signal System:  NTSC NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Effective Pixels: 1930(H) * 1088(V) (2) 100 lbs Magnets for Mounting to Flat Surfaces
Min. Illumination: 0.1 Lux @ F1.2 AGC On / 0 Lux w/ IR HD-TVI
Shutter Speed: 1/30s to 1/50,000s
Lens: 3.6mm
Angle of View: 90°
Day/Night: ICR
Infrared Range: Up to 50`
D/N Mode: Color / BW/ Auto / EXT
White Balance: Auto / User / Push / 8000K / 6000K / 4200K / 3000K
Privacy Mask: On/Off, maximum 2 zones
Motion Detection: On/Off, maximum 4 zones
Blacklight Compensation: Support
Anti-flicker: On/Off
Display Functions: Digital noise reduction, Mirror
Video Output: (1) Analog HD Output
Protocol: Coaxitron
Signal to Ratio: >52 dB
Language: English
Ambient Temperature Range: -10°C to +50°C
Housing Materials: Aluminum Toll Free: 1-800-369-6671
Lens Material: Tempered Glass Intl: 1-214-616-6180
Mounting: Adjustable Magnetic Bracket w/ (2) 100 lbs Magnets
Wiring Hub: (2) 3/4" NPT
' Product Overview '

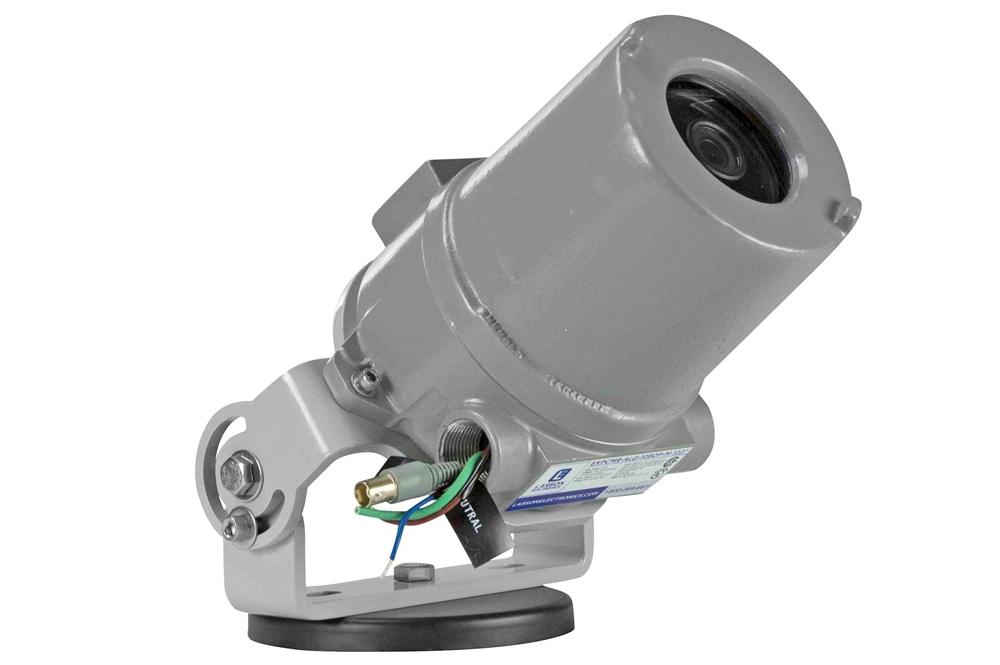

The EXPCMR-ALG-1080P-M-1227 explosion proof high definition analog camera with magnet mount from Larson Electronics is an inspection camera that can be used for remote observation in hazardous locations. It is available in a fixed lens configuration, a 3.6mm 90° lens to capture large wide areas, and can produce an image up to 1080p resolution. The EXPCMR-ALG-1080P-M-1227 allows operators to see visual process data from a centralized control room up. Camera Features: The EXPCMR-ALG-1080P-M-1227 portable explosion proof camera is designed to allow operators to have a live feed from inside a tank, reactor, vessel or other workplace observation in hazardous locations. The explosion proof camera is incredibly durable and ready to be deployed in many different workplace conditions. The camera is operated remotely from a centralized control room which saves both time and money as well as contributing to workplace safety. This explosion proof camera features an infrared LED array to allow for low light and nighttime visibility. The camera will automatically switch over to IR mode when lux levels drop below a preset level. This allows operators to has up to 50` of visibility in the dark True day/night infrared cutfilter removal creates a crisp, sharp image that transmits with zero latency to HD resolution via metal clad coax cable to customer provided remote mount DVR systems. This remote inspection camera features a pressure-resistant 316 stainless steel body and weighs just under 4.5 pounds. The camera itself features 1 lux sensitivity, a 2-wire transmitter and a stainless steel mounting bracket equipped with two 100 pound magnets for convenient mounting to flat magnetic surfaces as well as a built-in color CCD camera and a 1/3" CCD sensor. The lens of the EXPCMR-ALG-1080P-1227 features a viewing angle between 28° and 60° and the minimum lens to object distance is 3.15 inches. Wiring: Link-up with the camera is achieved via customer provided coax cable through a 3/4" NPT. The cable is ran back to the customer provided DVR system, mounted outside the hazardous location. Terminal strips within the camera allow customers to terminate the power supply for the camera through a separate 3/4" NPT. This unit operates on universal voltage 120/240V AC 50/60 Hz. Mounting: The EXPCMR-ALG-1080P-M-1227 explosion proof remote observation camera is typically mounted to flat surfaces for observation via two 100 pound magnets. The included adjustable flat surface magnetic mount bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the camera`s tilt orientation, and retighten to hold the camera in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the camera by loosening one bolt. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.
