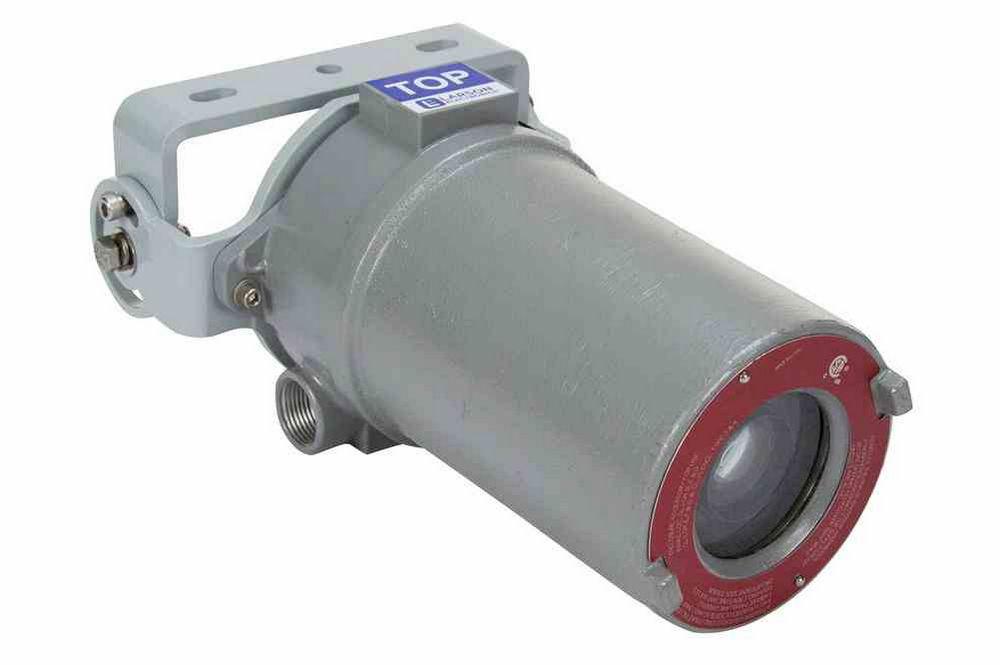

Explosion Proof 1080p HD Security Camera - Optical & Digital Zoom - IP67

LARSON ELECTRONICSSKU: PL3-EXPCMR-ALG-OZ-IC-1080P-1227
filler

Precio:
Precio de venta$9,474.00

Descripción

Specifications / Additional Information
EXPCMR-ALG-1080P-1227 Explosion Proof Remote Observation Camera Quick Summary
Dimensions: 8"L x 6"W x 9"H Class I, Divisions 1 & 2, Groups B, C, D
Camera Weight: 3.7lbs Class I, Zones 1 & 2, Groups IIB+H2, IIA
Total Watts: W Max Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 120-240V AC Class III, Divisions 1 & 2
Image Sensor:  CMOS Ex db IIC Gb
Signal System: NTSC Ex tb IIC Gb Db IP66
Connectors: Terminal Strips NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Effective Pixels: 1956(H) * 1266(V)
Min. Illumination: 0.1 Lux @ F1.2 AGC On / 0 Lux w/ IR
Shutter Speed: 1/25(1/30s) to 1/50,000s
Lens: 5-50mm Focal Length
Angle of View: 90°
Day/Night: ICR
Video Framerate: 1080p @ 30fps
Video Output: Analog over Copper Wire
Signal to Ratio: >62 dB
Language: English
Ambient Temperature Range: -10°C to +60°C
Housing Materials: Aluminum Toll Free: 1-800-369-6671
Lens Material: Tempered Glass Intl: 1-214-616-6180
Mounting: Adjustable Bracket
Wiring Hub: (2) 3/4" NPT
' Product Overview '
The EXPCMR-ALG-OZ-IC-1080P-1227 Explosion Proof Camera from Larson Electronics is designed for security and remote observation in both indoor and outdoor hazardous environments. This 1080p HD high resolution security camera features a 150` range, 10x optical zoom with autofocus, and 62x digital zoom for maximal coverage and accuracy. A digital inverter supports both HD-TVI and CVBS analog output. Camera Features: The EXPCMR-ALG-OZ-IC-1080P-1227 security camera provides operators in hazardous areas with crisp 1080p HD high resolution images. A 5-50mm motorized lens automatically adjusts focus, providing operators with a precise 10x optical zoom and autofocus and 62x digital zoom image. A digital inverter supports both HD-TVI and CVBS analog output to a customer provided remote mount DVR system. This camera measures a compact 12.34" x 3.96" x 4.22" and the mounting base allows for precise aiming with 90° of vertical adjustment. The EXPCMR-ALG-OZ-IC-1080P-1227 security camera is built to perform under harsh and rugged conditions. This IP67 rated waterproof unit resists the corrosive effects of weather, dust, dirt, and humidity. This Class I Divisions 1 & 2, Class II Divisions 1 & 2, Class III Divisions 1 & 2 rated camera provides property and product security while also protecting operators with its safe and reliable explosion proof and weatherproof design. Wiring: This unit is designed to operate on 120-240V AC. Link-up with the camera is achieved via customer provided standard stranded cable such as SOOW. The cable video/power drop cable can be routed either through the mounting surface or through a cable guide on the edge of the mounting base. Mounting: The EXPCMR-ALG-OZ-IC-1080P-1227 explosion proof security camera is secured to flat surface, such as a ceiling or wall, using and adjustable reverse pedestal style bracket. The included mounting bracket allows 90° vertical adjustment and 360° of swivel for precision aiming. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, offshore and land based rigs, indoor and outdoor security, commercial buildings
