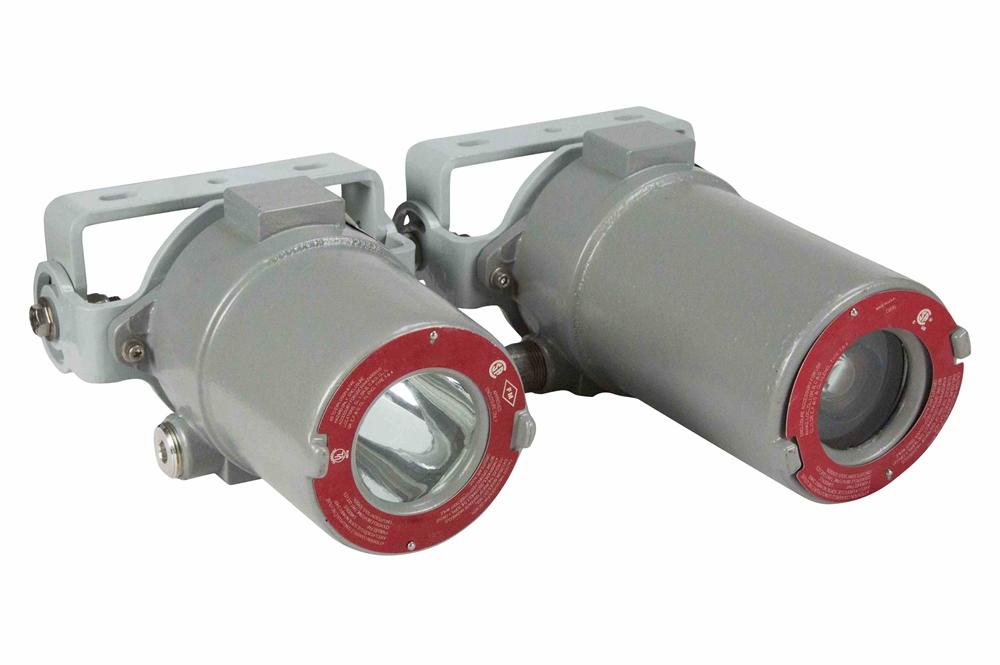

Explosion Proof 1080p HD Security Camera & Infrared LED Light Combination - Optical & Digital Zoom - 3/4"NPT

LARSON ELECTRONICSSKU: PL3-EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227
filler

Precio:
Precio de venta$13,434.00
 Más opciones de pago

Descripción

Specifications / Additional Information
EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227 Explosion Proof Camera & Infrared LED Light Ratings/Approvals
Listing: NRTL Listed for United States and Canada; ATEX/IECEx Rated Listed for United States & Canada
Dimensions: 18"W x 8"D x 6"H Class I, Divisions 1 & 2, Groups B, C, D
Weight: 35 lbs Class I, Zones 1 & 2, Groups IIB+H2, IIA
Wiring: (1) 3/4" NPT Wiring Hub Class II, Divisions 1 & 2, Groups E, F, G
Camera Specs Class III, Divisions 1 & 2
Watts: 12W NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
Voltage: 120-240V AC NRTL Listed to UL 508A
Image Sensor:  CMOS NRTL Listed to UL 1203
Signal System: NTSC NRTL Listed to CSA C22.2 No 14, 25, 30
Connectors: Terminal Strips
Effective Pixels: 1956(H) * 1266(V)
Min. Illumination: 0.1 Lux @ F1.2 AGC On / 0 Lux w/ IR
Shutter Speed: 1/25(1/30s) to 1/50,000s
Lens: 5-50mm Focal Length
Angle of View: 90°
Day/Night: ICR
Video Framerate: 1080p @ 30fps
Video Output: Analog over Copper Wire
Signal to Ratio: >62 dB
Language: English
Infrared Light Specs
Watts: -
Voltage: 120-240V AC
Lumens: -
Luminous Efficacy: -
Infrared Wavelength Options: 750 nm, 850 nm or 940 nm
LED Life Expectancy: 50,000 hours
Lighting Configuration: Spot or Flood
IR Spot Beam: 120`L x 60`W
IR Flood Beam: 80`L x 80`W
Ambient Operating Temp Range: -40°C to +60°C
Housing Material: Aluminum
Light Housing Color: Powder Coated - Grey
Lens Material: Polycarbonate
Mounting: Adjustable Surface Mount Brackets w/ Set Screws
' Product Overview '
The EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227 from Larson Electronics is a Combination Explosion Proof Camera & Explosion Proof Infrared LED Light Fixture that is designed for security and remote observation in both indoor and outdoor hazardous environments at both day and night. This 1080p HD high resolution security camera features a 150` range, 10x optical zoom with autofocus, and 62x digital zoom for maximal coverage and accuracy. A digital inverter supports both HD-TVI and CVBS analog output. This unit also features an explosion proof infrared light that is available in both spot or flood options and various wavelengths. Camera Features: The EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227 security camera provides operators in hazardous areas with crisp 1080p HD high resolution images. A 5-50mm motorized lens automatically adjusts focus, providing operators with a precise 10x optical zoom and autofocus and 62x digital zoom image. A digital inverter supports both HD-TVI and CVBS analog output to a customer provided remote mount DVR system. This camera measures a compact 12.34" x 3.96" x 4.22" and the mounting base allows for precise aiming with 90° of vertical adjustment. The monitoring device comes with built-in infrared lights to support image capturing in low-light conditions and after sunset. This component is available in two lighting configurations: spot and flood. Four Edison Edixeon® three watt LEDs producing 180 lumens each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. The spot configuration features a 10° beam that measures 120`L x 60`W. The flood configuration throws a 35° beam that measures 80`L x 80`W. The explosion proof infrared light is powered using a customer-provided 120-240V AC power source.
In-Use Robotic Sandblasting
The EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227 security camera is built to perform under harsh and rugged conditions. This IP67 rated waterproof unit resists the corrosive effects of weather, dust, dirt, and humidity. This Class I Divisions 1 & 2, Class II Divisions 1 & 2, Class III Divisions 1 & 2 rated camera provides property and product security while also protecting operators with its safe and reliable explosion proof and weatherproof design. Wiring: This unit is designed to operate on 120-240V AC. Link-up with the camera is achieved via customer provided standard stranded cable such as SOOW. The cable video/power drop cable can be routed either through the mounting surface or through a cable guide on the edge of the mounting base. The EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227 features separate leads for both the camera and the light fixture which allows them to be operated independently of one another if desired. This unit is equipped with a 3/4" NPT wiring hub for customer provided wiring. Mounting: The EXPCMR-ALG-OZ-IC-1080P-IR-1XLE3-1227 is secured to flat surfaces, such as a ceiling or wall, using and adjustable reverse pedestal style brackets. The included mounting bracket allows 90° vertical adjustment and 360° of swivel for precision aiming. The camera and the light each have their own bracket for mounting reliability and are connected via piping for increased strength and mounting durability. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, offshore and land based rigs, indoor and outdoor security, commercial buildings and more.
