Specifications / Additional Information

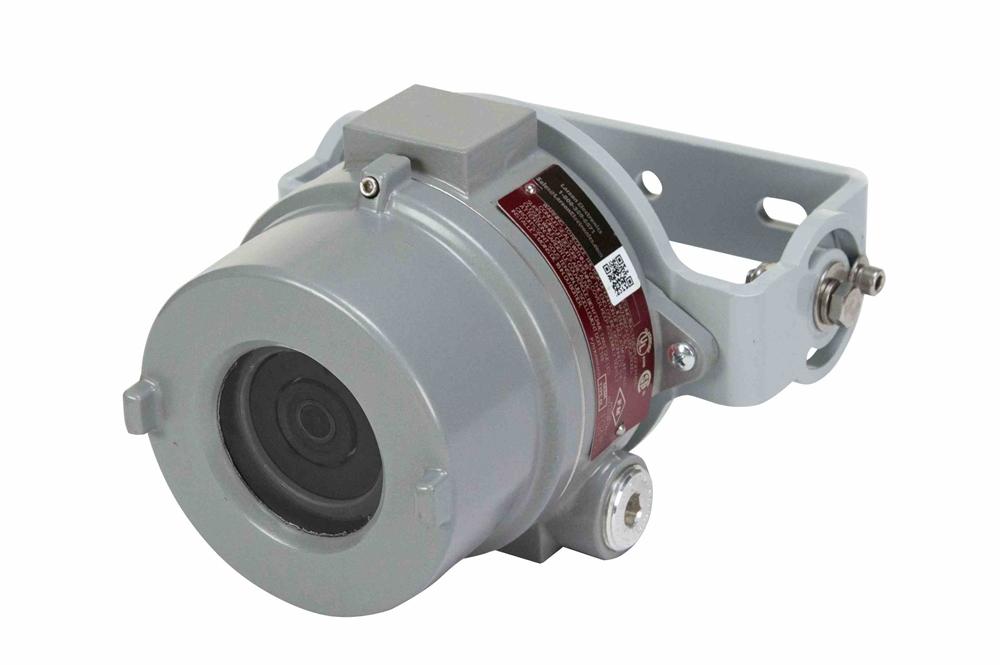

EXPCMR-NDAA-IP-POE-4MP-IR Network Explosion Proof Camera - NDAA Compliant | Ratings / Features |
Listing: NRTL Listed for United States & Canada | National Defense Authorization Act (NDAA) Compliant |
Dimensions: 8"L x 6"W x 13"H | Class I, Divisions 1 & 2, Groups B, C, D |
Weight: - | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
Total Watts: 6.4W (Max) | Class II, Divisions 1 & 2, Groups E, F, G |
Power Source: 12V DC ± 25%, PoE (IEEE802.3 af) | Class III, Divisions 1 & 2 |
Image Sensor: 1/3" Progressive Scan CMOS Sensor | NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G) |
Main Stream Video Resolutions: up to 4MP (2592×1520) - Max. 20 fps; 4MP (2560×1440) - Max. 25 fps; 3MP (2048×1520) - Max. 30 fps | Detect up to 150 Feet |
Sub Stream Video Resolution: up to 2MP (1920×1080) - Max. 30 fps | Recognize up to 75 Feet |
Mobile Data-Sensitive Stream Video Resolution: up to D1 (720×576) - Max. 30 fps | Identify Individuals up to 50 Feet |
Compression Type: H.265, H.264, MJPEG |  |
Bit Rate: 32Kbps - 8Mbps |  |
Focal Length: 4.0mm @ F1.8 |  |
Bit Rate: 32Kbps - 16Mbps |  |
Max Field of View: 80.8° of horizontal coverage; (45° vertical) |  |
Shutter Speed: Auto/Manual, 1/6 to 1/100,000 second |  |
Min. Illumination: Color video until 0.02 lux @F2.0, AGC ON 0 lux with IR on | |
Infrared Light: Built-in | |
Day/Night: IR-cut Filter w/ Auto Switch (ICR) | |
IR Range: up to 100' | |
Digital Noise Reduction: 2D/3D DNR | |
Ethernet Interface: RJ45 10M/100M Base-TX Ethernet | |
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | |
BLC: Yes, Zone Configurable | |
Alarm Trigger: Motion Detection, Tampering Alarm, Network Disconnect, IP Address Conflict, Storage Exception | |
Ambient Temperature Range: -31°F to +140°F | Special Orders/Requirements |
Housing Materials: Copper-free Aluminum Alloy | |
Lens Material: 3/8" Thick Tempered Glass | Toll Free: 1-800-369-6671 |
Mounting: Adjustable rear-mounted handle/bracket | Intl: 1-214-616-6180 |
Wiring Hub: (2) 3/4" NPT | |
Shipping Weight: 13lbs |
The EXPCMR-NDAA-IP-POE-4MP-IR Network Explosion Proof Camera from Larson Electronics is a remote inspection camera specifically designed for observation in hazardous locations. This explosion proof, dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed from inside tanks, reactors, vessels or other hazardous locations. Equipped with built-in infrared, this NDAA compliant remote inspection camera saves both time and money as well as contributing to workplace safety. Camera Features: The EXPCMR-NDAA-IP-POE-4MP-IR Network Explosion Proof Camera features a built-in 1/3" progressive-scan CMOS image sensor that delivers up to 4.0MP resolution at 20 fps. The fixed lens with 80.8° of horizontal coverage and 45° of vertical coverage is designed to cover large areas and work spaces. This explosion proof camera provides a crisp and clear image for everything within the focal area. Total distance is dependent on mounting height and angle. This outdoor security camera complies with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment. The explosion proof unit comes with built-in infrared lights. For additional infrared illumination, an external infrared light can be used with the explosion proof device (not included). For 12-24V DC applications, we recommend the Larson Electronics 12-watt explosion surface-mount infrared LED light (). As an alternative, we also offer the for 120-240V AC applications This remote inspection camera utilizes a day/night IR-cut filter with auto switch (ICR) to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level. Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well. Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant. Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR`s to work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each steam can be configured to different resolutions and frame rates. Mounting: The EXPCMR-NDAA-IP-POE-4MP-IR Network Explosion Proof Camera features an ATEX/IECEx certified copper-free aluminum alloy body. The camera includes an adjustable rear-mounted polished stainless steel mounting bracket/handle. Additional accessory pole mounts and magnetic mounts are available separately. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level. |
