Explosion Proof Network IP Camera - 4.0MP Resolution - 20FPS - Low Light IR Array - Pole Top Mount

LARSON ELECTRONICSSKU: PL3-EXPCMR-PT-IP-POE-4MP-IR
filler

Precio:
Precio de venta$5,938.00

Descripción

Specifications / Additional Information
EXPCMR-PT-IP-POE-4MP-IR Network Explosion Proof Camera Quick Summary
Dimensions: 8"L x 6"W x 13"H Class I, Divisions 1 & 2, Groups B, C, D
Camera Weight: 6 lb Class I, Zones 1 & 2, Groups IIB+H2, IIA
Total Watts: 5W (Max) Class II, Divisions 1 & 2, Groups E, F, G
Power Source: PoE (802.3af) Class III, Divisions 1 & 2
Image Sensor: 1/3" Progressive Scan CMOS sensor Ex db IIC Gb
Signal System: NTSC Ex tb IIC Gb Db IP66
Video Resolution: 4.0MP (2688*1520) NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Frame Rate: Up to 20fps @ 2688*1520 resolution Main steam and two sub streams
Compression Type: H.264, H.264 OVC, MJPEG Capable of programming unique settings per stream
Bit Rate: 32Kbps - 16Mbps ONVIF Profile S Certified
Focal Length: 4mm WDR (wide dynamic range) for auto adjusting
Max Field of View: 83°
Shutter Speed: 1/3s to 1/10,000s
Min. Illumination: 0.01 lux (Color) / 0 lux (IR)
IR Range: 45 ft
Day/Night: True D/N w/Mechanical Cut Filter
Digital Noise Reduction: 3D DNR
Ethernet Interface: RJ45
Ethernet Speed: 10/100
Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
Remote Configuration: Yes
Ambient Temperature Range: -22°F to +140°F
Housing Materials: Copper-free Aluminum Alloy
Lens Material: 3/8" Thick Tempered Glass Toll Free: 1-800-369-6671
Mounting: Slip Fit Yoke Mount w/ Adjustable Bracket Intl: 1-214-616-6180
Mount OD: 2", 2-1/4", 2-1/2", 2-3/4", 3", 4"
Wiring Hub: (2) 3/4" NPT
' Product Overview '

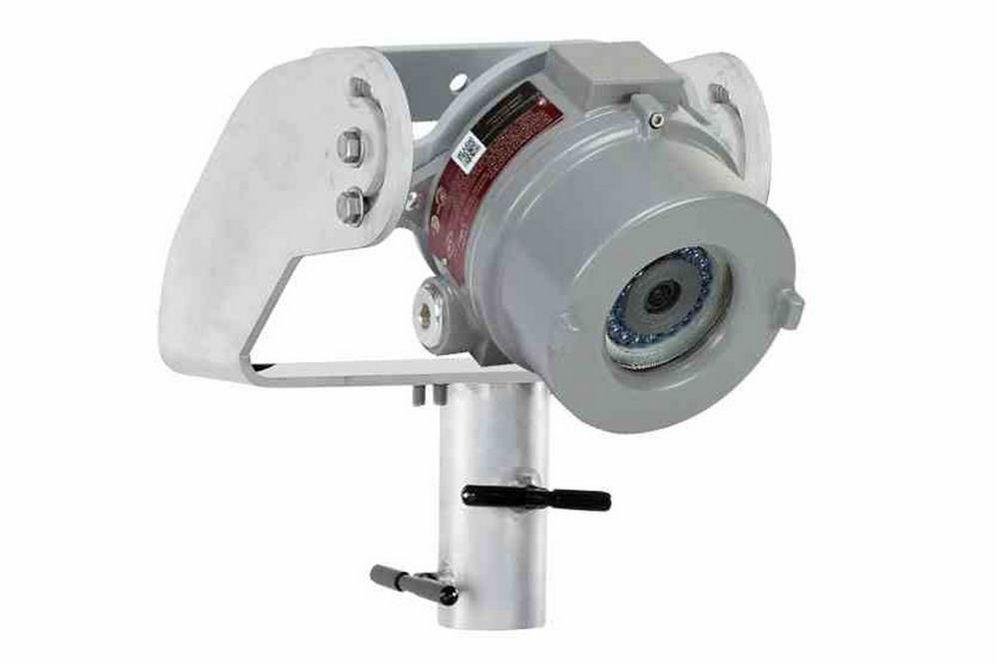

The EXPCMR-PT-IP-POE-4MP-IR Network Explosion Proof Camera from Larson Electronics is a remote inspection camera specifically designed for observation in hazardous locations. This explosion proof, dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed from inside tanks, reactors, vessels or other hazardous locations. Suitable for mounting on poles, this remote inspection camera saves both time and money as well as contributing to workplace safety. Camera Features: The EXPCMR-PT-IP-POE-4MP-IR Network Explosion Proof Camera features a built-in 1/3" progressive-scan CMOS image sensor that delivers up to 4.0MP resolution at 20 fps. The wide angle fixed lens with 83° field of view covers a large area, and an integrated IR LED array provides the operator with low light and nighttime visibility up to 45`. The camera automatically switches from full color to IR mode when visible light falls below a certain level. This remote inspection camera utilizes Advanced Infrared Technology, 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut filter Removal to produce clear images in variable and low light conditions. This explosion proof camera provides a crisp and clear image for everything within the 83° focal area. Total distance is dependent on mounting height and angle. Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well. Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant. Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR`s to work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each steam can be configured to different resolutions and frame rates. Mounting: The explosion proof camera features an adjustable swivel bracket constructed of 3/8" aluminum that allows over 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this monitoring device to their specific pole size. For example, selecting a 2" OD mount means that the yoke mount will fit onto pipes or bull horns with a 2" OD. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.
