300W Submersible UVC Induction Lamp - 120-240V AC - Waterproof, FEP Shatterproof - Remote Ballast - Chemical Resistant Cord

LARSON ELECTRONICSSKU: PL3-FRL-IDC-WP-300W-UVC-SPF-HTC-XB.WP
filler

Precio:
Precio de venta$6,314.00

Descripción

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
FRL-IDC-WP-300W-UVC-SPF-HTC-XB.WP Submersible UVC Sanitation Lamp Ratings/Approvals
Listing: - Germicidal Applications
Lamp Technology: UVC Induction Risk Group 3 UV product
Dimensions: - Waterproof and Submersible
Weight: - FEP Shatterproof (Food Safe)
Ballast Voltage: 120-240V AC, 50/60 Hz EPA Reg. No 98409-1
Total Watts: 300W EPA Est. No. 98409-TX-1
Total UV Output (Watts): -
Total Radiant Intensity: -
Lamp Life: 100,000+ Hours
UV Band: UVC 254nm (200nm - 280nm)
Peak Wavelength: 280nm
Lamp Type: Induction, Shatterproof
Lamp Base: -
Replacement Lamp: -
Beam Angle: 360°
Lighting Configuration: Flood Pattern
Ballast Type: External/Remote with Weatherproof (Non Submersible) Enclosure
Amps: 2.5A @ 120V, 1.25A @ 240V
Operating Temp Range: 300°F/150°C
Housing Material: -
Hardware/Hub Material: - Special Orders - Requirements
Lamp Coating: FEP Shatterproof Coating (Food Safe)
Wiring: High Temperature Chemical Resistant Cord Between Light & Ballast
Mounting: Surface Mount Bracket
Hub Quantity: -
Wiring Hub Size: -
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.***
.tb_button {padding:1px;cursor:pointer;border-right: 1px solid #8b8b8b;border-left: 1px solid #FFF;border-bottom: 1px solid #fff;}.tb_button.hover {borer:2px outset #def; background-color: #f8f8f8 !important;}.ws_toolbar {z-index:100000} .ws_toolbar .ws_tb_btn {cursor:pointer;border:1px solid #555;padding:3px} .tb_highlight{background-color:yellow} .tb_hide {visibility:hidden} .ws_toolbar img {padding:2px;margin:0px}
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

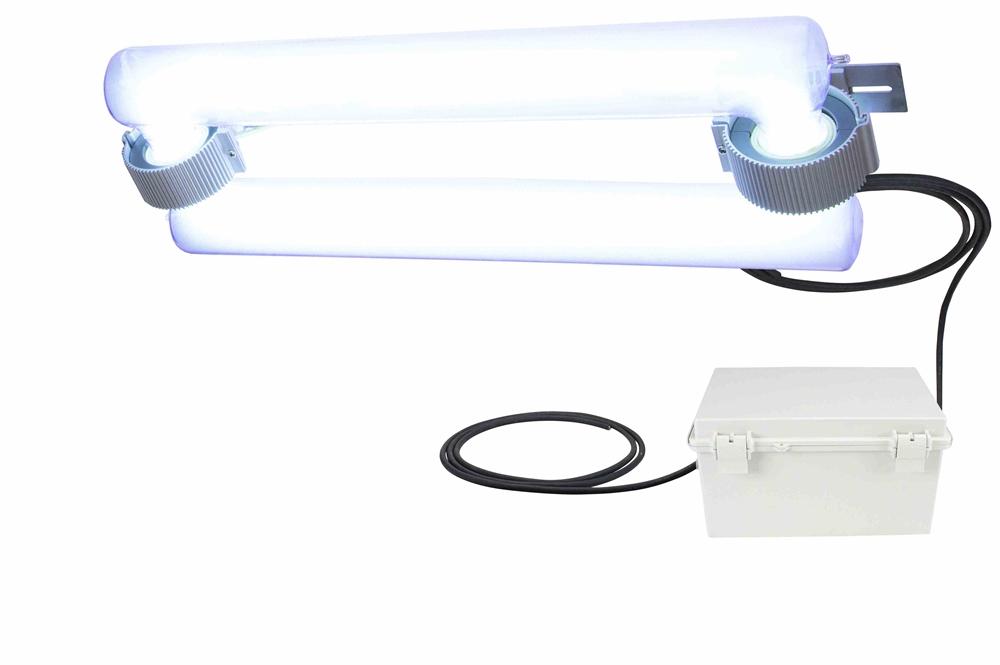

This unit is Made In USA - Manufactured in Texas The FRL-IDC-WP-300W-UVC-SPF-HTC-XB.WP from Larson Electronics is a Submersible UVC Induction Lamp that serves as a shatterproof disinfection solution in industrial facilities and high-temperature environments. This 300-watt unit features a UVC induction lamp with a 360° beam angle configuration. Powered via an electromagnet to reduce the risk of gas leaks associated with fluorescent lights, the food-safe luminary comes with a weatherproof (not submersible) remote ballast that operates on 120-240V AC, 50/60 Hz and a high temperature chemical resistant cord between the lamp and ballast. *Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. * The FRL-IDC-WP-300W-UVC-SPF-HTC-XB.WP is a powerful induction sanitation lamp that is suitable for germicidal illumination in extreme environments. This 300-watt lamp is fully submersible and provides UVC output within the 200nm - 280nm range. During use, the waterproof unit emits UV light with a 360° beam angle in a flood beam configuration. This mercury-based germicidal lamp operates on 120-240V AC, 50/60 Hz (ballast voltage) and does not contain electrodes. The food-safe lamp has a 100,000-hour useful lifespan, making the unit a long-lasting solution in work sites. Designed for extreme environments, this submersible UV lamp can withstand temperatures up to 300°F/150°C. A durable FEP coating makes the lamp shatter resistant and provides protection from impacts. Should the bulb break during an emergency, the internal contents and glass will remain trapped inside the unit. This coating adds an extra layer of safety for workers and customers alike. See Cert5 Chemical Resistance FEP Chart for more information. Operation: The FRL-IDC-WP-300W-UVC-SPF-HTC-XB.WP should only be used in non-occupied areas. The UVC radiation produced by this fixture is not safe for skin or eyes. These fixtures should also be set up on a separate circuit from other lighting. It is also advised to use a control circuit that incorporates a motion sensor with groupings of fixtures. This adds a level of safety because the lights will turn off if someone enters the area while the lights are on. This UV lamp is a Risk Group 3 UV product. UV radiation from the unit can damage the skin and eyes without proper protection. Operators should avoid exposure to the eyes and skin when the unit is unshielded (for use in enclosed environments only). In the event of lamp breakage, it is recommended to ventilate the room for 30 minutes and clean the area with gloves (not a vacuum cleaner). Contents should be stored in a sealed plastic bag and brought to a waste/recycling facility.
Mounting Height Irradiance/Second Exposure Time Required* Beam Length Beam Width
10 ft 166.92 uW/cm2 1.2 minutes 6.3 ft 6.3 ft
12 ft 121.34 uW/cm2 1.65 minutes 7.6 ft 7.6 ft
15 ft 82.86 uW/cm2 2.5 minutes 9.5 ft 9.5 ft
18 ft 61.15 uW/cm2 3.3 minutes 11.46 11.46
20 ft 51.48 uW/cm2 3.9 minutes 12.74 ft 12.74 ft
22.5 ft 42.61 uW/cm2 4.7 minutes 14.34 ft 14.34 ft
25 ft 36.06 uW/cm2 5.6 minutes 15.92 ft 15.92 ft
28 ft 30.25 uW/cm2 6.7 minutes 17.84 ft 17.84 ft
30 ft 27.21 uW/cm2 7.4 minutes 19.11 ft 19.11 ft
32.5 ft 24.11 uW/cm2 8.3 minutes 20.7 ft 20.7 ft
35 ft 21.59 uW/cm2 9.3 minutes 22.3 ft 22.3 ft
40 ft 17.75 uW/cm2 11.3 minutes 25.5 ft 25.5 ft
*Exposure time is based off of total irradiance. The above calculations are based on 12mJ total exposure. This level of exposure deactivates most organisms.
Note on Lamps: Induction lamps are similar to high-intensity discharge lamps. There is a glass bulb filled with gases, and an external ballast. The difference in the technology is, unlike metal halide or high pressure sodium that create an arc between two electrodes to ignite gases, induction lamps generate light from an electromagnetic interaction with the gases. This magnetic reaction with the gases provides a more energy efficient product and a longer lifespan over traditional high intensity discharge lamps. Additionally, there is no warm-up time generally associated with high intensity discharge lamps. Induction lamps provide instant-on light output similar to LED technology. The combination of induction lamp technology and UVC output provides the high output from high intensity discharge lamps with the instant-on, long life span, and energy efficiency of LED technology. Mounting: The FRL-IDC-WP-300W-UVC-SPF-HTC-XB.WP is equipped with surface mounting brackets at the back of the lamp. Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information. Applications: Germicidal, water purification, disinfection, food processing, air disinfection, pharmaceuticals, biotechnology and more.
