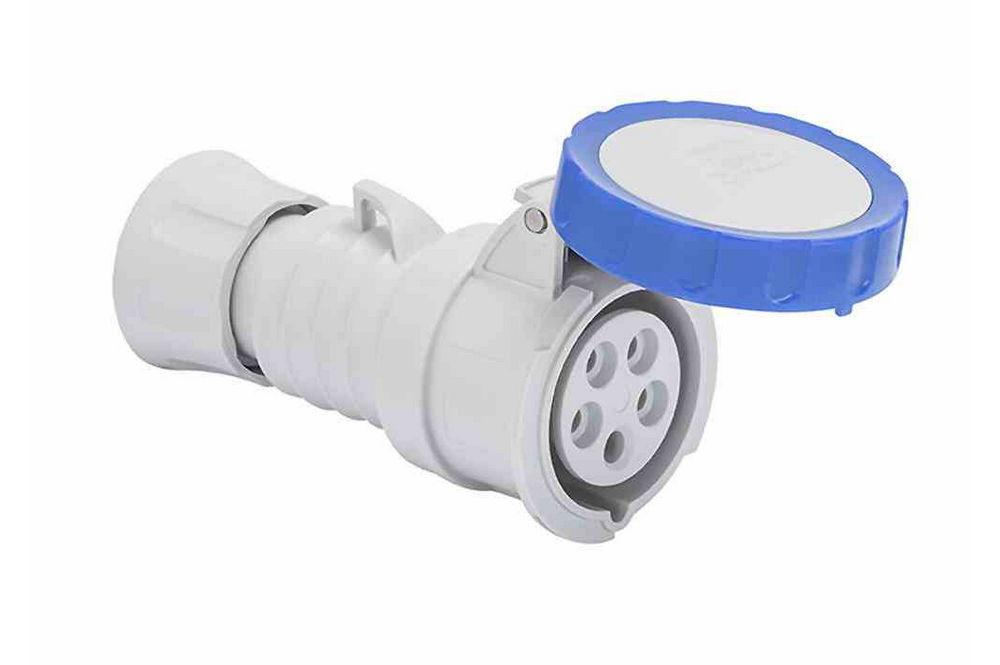

Industrial Pin and Sleeve Connector - 32 Amp - 208Y/120 3PH - 4P5W 3P+N+E - IP67 - Hinged Cover - 60309
Industrial Pin and Sleeve Connector - 32 Amp - 208Y/120 3PH - 4P5W 3P+N+E - IP67 - Hinged Cover - 60309
Sold by: LARSON ELECTRONICS
| GAU-120.208V-4P5W-32A-C-IP67 Water Tight Pin and Sleeve Connector | Certifications - Compliance |
| Device Series: IEC 60309 (International) | IEC 60309 |
| Device Type: Connector | IP67 Rated Weatherproof |
| Dimensions: - | IK07 Rated Drop Resistant |
| Weight: - | Flame Retardant (UL94 V2) |
| Amperage Rating: 32A | CE Certified |
| Voltage: 208Y/120 | RoHS Certified |
| Frequency: 50/60 Hz | Portable Receptacle w/ Hinged Cover |
| Phase: 3-Phase | Certified for Full Load Interrupting |
| Configuration: 4P5W (3P+N+E) |  |
| # of Poles: 4-Pole | Mating Plug: GAU-120.208V-4P5W-32A-P-IP67 |
| # of Wires: 5-Wire |  |
| Max Voltage Rating: 250V 3PH |  |
| Max Horsepower Rating: 3 HP |  |
| Clock Hour: 9H |  |
| Conductor Range: #12 AWG to #8 AWG |  |
| Current Interrupting: Certified for current interrupting at full rated current |  |
| Operating Temperature Range: -25°C to +65°C |  |
| Temperature Rise: Max +30°C |  |
| Waterproof Rating: IP67, NEMA 4X |  |
| Shock Resistance: IK09 |  |
| Flammability: V-2 Rated |  |
| Insulation Resistance: 500V for 1 min; >= 5MΩ | |
| # of Operations: > 1000 @ Full Load Breaking |  |
| Seals: Neoprene | |
| Contacts Material: Copper Alloy | |
| Housing Materials: Toughened PVC | |
| Color: Blue | Int'l: 1-214-616-6180 |
| Shipping Dimensions: - | |
| Shipping Weight: - |
| The Larson Electronics GAU-120.208V-4P5W-32A-C-IP67 Weatherproof Pin and Sleeve Connector is a 32 amp and 120/208 Volts AC rated connector approved for industrial use. This 4-pole 5-wire portable receptacle is designed to provide a secure connection for electrical equipment within the general industrial environment. This pin and sleeve connector features a hinged cover and has a maximum operating voltage of 120/208V AC. This water tight pin and sleeve connector is IP67 rated. This water tight 3P+N+E pin and sleeve portable receptacle is rated for 32 amps and 120/208V AC. The GAU-120.208V-4P5W-32A-C-IP67 industrial connector features toughened PVC construction, a hinged cover, a 32 amp current rating. The GAU-120.208V-4P5W-32A-C-IP67 is IEC 60309 rated for cross compatibility . Suggested Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors or wet areas.  |
