200W High Bay LED Fixture - 100-277V AC - Aluminum - Cold Forged Housing - IP65 - 0-10V Dimmable/DALI Network

LARSON ELECTRONICSSKU: PL3-GAU-ADC-HB-40L-LED-WP-WCM-D-V2
filler

Precio:
Precio de venta$2,526.00

Descripción

Specifications / Additional Information
GAU-ADC-HB-40L-LED-WP-WCM-D-V2 High Bay LED Lamp - DALI Network Ratings/Approvals
Lamp Technology: LED IP65
Dimensions: 6.77" -H x 11" -D Cold Forged
Weight: 5.24 lbs 180° Rotation
Voltage: 100-277V AC 0-10V Dimmable
Watts: 200W Password Protected Network Controls
Lumens: 30,000 No Programming Required
Luminous Efficacy: 150 LPW Modbus TCP/IP Connectivity
Lamp Life Expectancy: 50,000+ Hours DALI or Push Dim
Color Temp: 3,000K; 4,000K; 5,000K or 5,700K PWM Output Signal
CRI: >80 Inline Dimmer Control Box
Lamp Type:  -
Lamp Base:  -
Replacement Lamp:  -
Beam Angle: 90°
Lighting Configuration: -
Power Efficiency: -
Power Factor: -
Ambient Operating Temperature Range: -
Housing Material: Aluminum
Lens Material: Acrylic (PC)
Mounting: Hook, Bracket and Pipe

Signal Converter Specs
Watts: 0.5W
Input Voltage: 90-306V AC or 127-431V DC @ 47- 63Hz
Current: 0.1A
Input Signal: DALI or Push Dim
Output Channels: 4
Output Signal: PWM
Output Logic: Active High or Active Low
Dimming Range: 1-100%
Relay Switch: 240V AC, On/Off
Operating Temperature: -30°C to +60°C
Housing Material: Fully Isolated Plastic
Connection: Terminals (TB1, TB2 and JP1)

Analog Output Module Specs
Dimensions: 1.41" x 3.88" x 3.1"
Weight: 4.8 oz
Network Type: 10/100 Base-T Ethernet Port (Static IP address assignment or DHCP, HTTP Port Selectable)
Protocols: HTTP, XML, Modbus TCP/IP
Voltage: 9-28V DC
Max Current: 92mA-163mA @ 24V DC (10 Mbps Network Speed; 126mA-198mA @ 24V DC (100 Mbps Network Speed)
Configurable Channels: 5
Output Ranges: 0-5V, 0-10V, ±5V, ±10V, 4-20mA (Software Selectable)
Resolution: 16-bit DAC (0-65535)
Current Output (Voltage Mode): 10mA Max (Min Load = 1K), 30mA Max Short Circuit
Voltage Output Inaccuracy: ±0.2% FSR Includes Offset Error, Gain Error and Non-linearity Error
Max Load Capacitance: 20nF (no load), 5nF (1K load)
Current Output Range: 4-20mA
Output Compliance Voltage: 11.50V Minimum
Isolated Power Supply: Internal DC to DC Converter
Isolation: Galvanic, 1500V AC
ESD Protection: Integrated, 15kV Protection
Output Protection: Integrated Over-temperature, Open-line and Short Circuit Protection
Output Alarms: Open Current Loop, High Internal Temperature
Output @ Power Up: Programmable
LED Indicators: (8) Power On, Fault Condition (Channels 1-5), Network Linked, Network Activity
Operating Temperature: -40°C to 65.5°C
Housing Material: Lexan 940 Polycarbonate Plastic
Mount: Surface, Wall or DIN Rail
Password Protection: Yes @ Setup (Base 64 Encoding, 13 Characters)
Connectors: 12-position/Removable (Power/Outputs), 8-pin RJ-45 (Network)
' Product Overview '

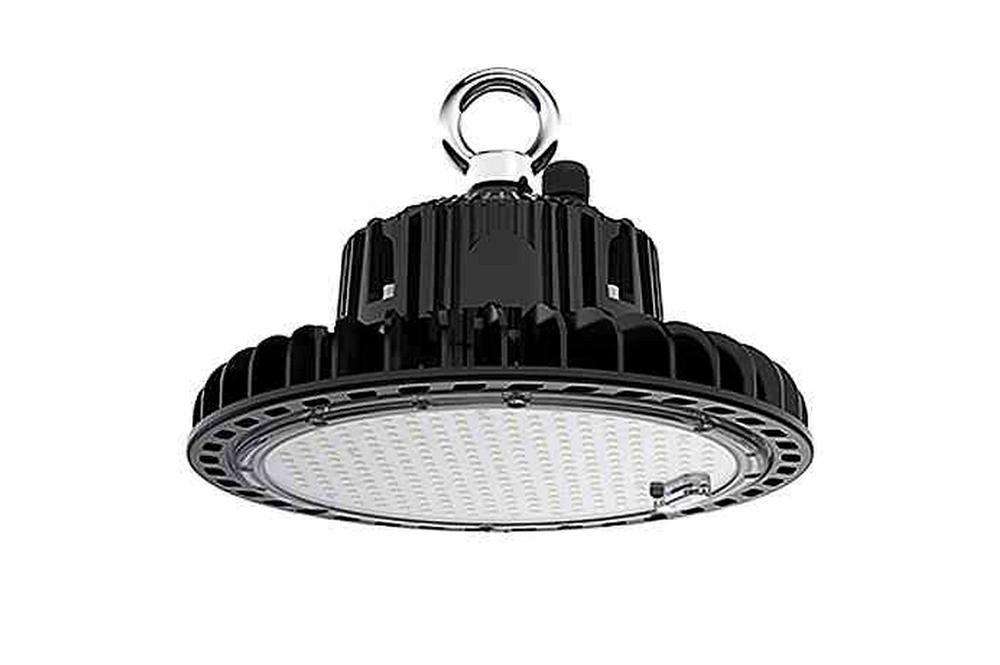

The GAU-ADC-HB-40L-LED-WP-WCM-D-V2 High Bay LED Fixture from Larson Electronics is designed for industrial work sites and elevated lighting requirements. The 200-watt fixture operates on 100-277V AC and emits 30,000 lumens of white light during use. Made out of aluminum with an acrylic lens, the 0-10V dimmable unit caters to Hook, Bracket and Pipe mounting configurations. Controls for the dimmable LED unit is facilitated by an analog output module using Modbus TCP/IP protocol. No programming is required during setup. The GAU-ADC-HB-40L-LED-WP-WCM-D-V2 is a powerful and dimmable lighting solution for large, industrial spaces. The high bay LED lamp operates on 100-277V AC and consumes 200 watts during operation. The circular fixture emits 30,000 lumens of white light. Color temperature options include: 3,000K; 4,000K; 5,000K or 5,700K. The unit was made using cold forging, which enhances the thermal resistance features of the lamp, with a beam angle of 90°. As a dimmable LED fixture, 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. Dimming controls are facilitated by an inline dimmer control box (not prewired by default). A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications. This high bay LED light is constructed of aluminum with an acrylic (PC) lens. The IP65-rated fixture is suitable for outdoor and humid environments. Consisting of 119 LED chips, the lamp should be mounted in elevated positions for best results. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Aevum Network Controlled Lighting Solution: The Aevum Network Controlled Lighting Solution from Larson Electronics enables connected and intelligent illumination using cutting-edge and existing networks. Using Modbus TCP/IP or DALI (for fixtures with dimming features), businesses can seamlessly control lights and sensors from remote locations, without traditional light switches. Web-based panels facilitate real-time monitoring of connected equipment and allows operators to switch units on/off, configure activation settings and more. Businesses may utilize their own systems and software with these controllers, ensuring robust flexibility and cost savings (no contracts). The Aevum Network Controlled Lighting Solution can improve productivity in the workplace by automating basic lighting controls and making lighting controls widely accessible in the facility, via local networks or the internet. Operators also have the option to monitor the status of fixtures from a remote location, which can improve maintenance and reduce downtimes. Larson Electronics offers equipment and accessories required for a DALI network. Controls: Controls for the LED fixture is accessible using a web-based control panel. Compatible with HTTP, XML, or Modbus TCP/IP protocols, network configuration is accessible using web-based pages (no programming required). Operators can monitor or setup controls from a remote area using the internet or local IP network and any standard web browser. Protective features include: integrated 15kV protection (ESD protection), integrated over-temperature, open-line and short circuit. Output alarms can be set for open current loop and high internal temperature. LED indicator lights on the device provide the real-time information about power, fault condition for all 5 channels and network link/activity. Password protection for the setup page is available (13 characters maximum). Operators can upload scripts during setup using the web-based panel. Signal Converter: The LED lighting system is equipped with a signal converter, which converts DALI signals to PWM signals. This component features built-in push dim functionality and a comprehensive dimming range of 1-100%. A total of four output channels can be found on the DALI-PWM signal converter. Selectable output PWM logic includes active high (factory setting) or active low. Network: The analog output module is equipped with five configurable channels. This unit works with 10/100 Base-T ethernet ports and allows static IP address assignment or DHCP, HTTP port selectable during setup. Compatible with 9-28V DC, the module features a 12-position, removable connector for power and outputs, as well as an accessible 8-pin RJ45 port. Operators can mount the device on walls, surfaces or din rails for space-saving benefits. Mounting: The GAU-ADC-HB-40L-LED-WP-WCM-D-V2 features a variety of mounting options: Hook, Bracket and Pipe. For hook mounting configurations, the LED fixture can hang suspended in the air, via a small eyelet located at the back of the unit. When secured using a mounting bracket, the configuration offers 180° of rotation. Pipe mounting configurations are suitable for sturdy support in overhead positions. Suggested Applications: Outdoor lighting, wet locations, retail spaces, lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers and more.
