380W High Output LED Linear Light Bar - 120-277V AC - 51,300 Lumens - DALI/Modbus Dimmable

380W High Output LED Linear Light Bar - 120-277V AC - 51,300 Lumens - DALI/Modbus Dimmable

$12,596.00 CAD
$12,596.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
GAU-ANC-LR-380W-LED-D-R2-SFC Linear High Output LED Light Bar Ratings/Features
LED Lamp Specs: 2000 Watt Metal Halide Replacement
Lamp Type: LED - Dimmable Ambient Op Temp -40°C to +80°C
Dimensions: 41.50"-L x 6.00"-W x 11.50"-D Ideal for Light Towers & LED Retrofits
Weight:  32.35 lb 98% Transmission High Purity PMMA Optics
Voltage: 120-277 V AC, 50/60 Hz Multiple LED Banks for Heat Dispersion
Total Watts: 380W 135 Lumens Per Watt Efficiency
Total Lumens: 51,300 lms 70% Lumen Retention after 80,000 Hours
Luminous Efficacy: 135 Lm/W NRTL Certified to UL1012
LED Life Expectancy: 80,000 hours NRTL Certified to UL60950-1
LED Color Temperature: Cool White - 5500-6500K CE Certified
Color Rendering Index: - RoHS Compliant
Lamp Type: - IP67 Rated Waterproof
Lamp Base: - No Programming Required
Replacement Lamp: - Modbus TCP/IP Connectivity
Beam Angle: 60°, 125° or 140° Modbus/DALI Gateway Not Included
Lighting Configuration: Flood Pattern
Optics Efficiency: 98% - PMMA High Transmittance Optics
LED Drive: 90%
Amp Draw: 3.16 A @ 120 V, 1.58 A @ 240 V, 1.37 A @ 277 V
Ambient Operating Temp Range: -40°C to +80°C
Housing Material: Die Cast Aluminum Housing, PMMA Optics
Housing Finish: Powder Coated - Black
Lens Material: -
Mounting: Flat Surface Trunnion Mount U-Bracket
Wiring: 2.5' Pigtail w/ Flying Leads

Network Controller Specs:
Dimensions: 1.41" x 3.88" x 3.1"
Weight: 5 oz
Network Type: 10/100 Base-T Ethernet Port
Protocols: HTTP, XML, Modbus TCP/IP
Power Supply: 9-28 V DC
Digital Input: (1) Optically Isolated 4-26 V DC
Current: 950 uA @ 4 V, 8.5 mA @ 26 V
Relay Contacts: (1) SPDT - 240 V AC / 30 V DC Max @ 12 A
Relay Modes: On/Off or Pulsed
Pulse Timer Duration: 0.1 to 86,400 Seconds
Input Functions: Monitor, Local Relay Control, Remote Relay Control Special Orders - Requirements
Operating Temperature: -40°C to 57°C
Housing Material: Lexan 940 Polycarbonate Plastic Toll Free: 1-800-369-6671
Mount: Surface, Wall or DIN Rail Intl: 1-214-616-6180
Password Protection: Yes @ Setup (Base 64 Encoding, 10 Characters)
Connectors: 3-position Removable (Relay- C, NO, NC), 5-position Removable (Power/Input), 8-pin RJ-45 (Network)
' Product Overview '

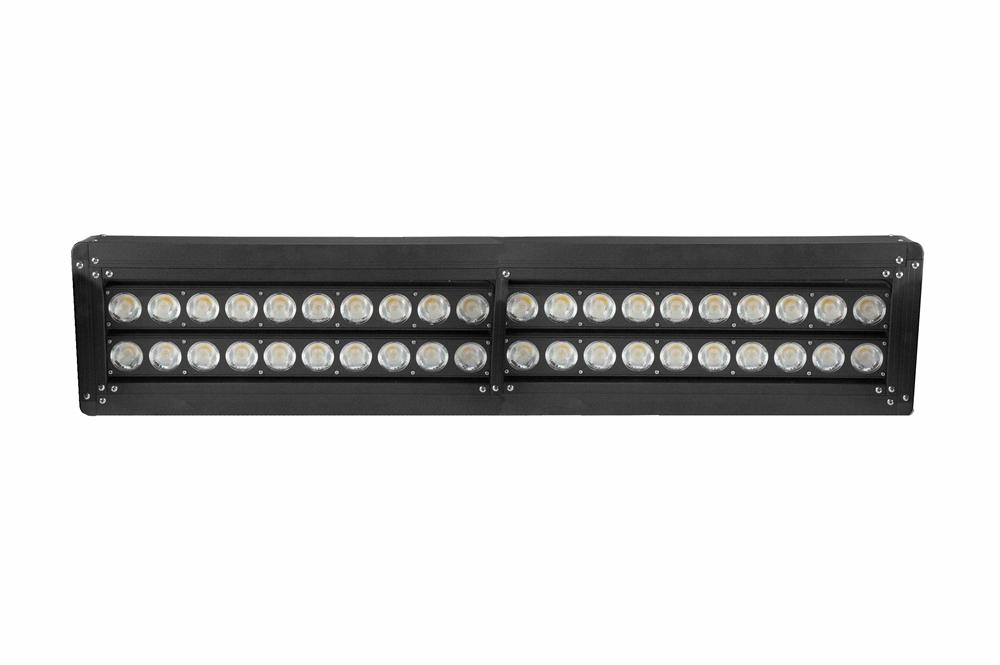

Made in the USA The GAU-ANC-LR-380W-LED-D-R2-SFC from Larson Electronics is a Linear High Output LED Light Bar that offers intense light output and is ideal for flood lighting, surfae mount lighting and industrial and outdoor lighting applications. Capable of producing 51,300 lumens and with an IP67 waterproof rating, this dimmable LED flood light provides operators with a rugged and powerful LED alternative to 2000 watt metal halide lamps. Operators can setup remote access, controls and configurations using the Modbus TCP/IP network controller (via a standard web browser). The GAU-ANC-LR-380W-LED-D-R2-SFC produces 51,300 lumens of high intensity light while drawing only 380 watts rom a 120 volt electrical system. Forty high output LEDs are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 34° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. GAU-ANC-LR-380W-LED-D-R2-SFC lights are ideal replacements for fragile and hot running 2000 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few. Aevum Network Controlled Lighting Solution: The Aevum Network Controlled Lighting Solution from Larson Electronics enables connected and intelligent illumination using cutting-edge and existing networks. Using Modbus TCP/IP or DALI (for fixtures with dimming features), businesses can seamlessly control lights and sensors from remote locations, without traditional light switches. Web-based panels facilitate real-time monitoring of connected equipment and allows operators to switch units on/off, configure activation settings and more. Businesses may utilize their own systems and software with these controllers, ensuring robust flexibility and cost savings (no contracts). The Aevum Network Controlled Lighting Solution can improve productivity in the workplace by automating basic lighting controls and making lighting controls widely accessible in the facility, via local networks or the internet. Operators also have the option to monitor the status of fixtures from a remote location, which can improve maintenance and reduce downtimes. Controls: Controls for the LED fixture is accessible using a web-based control panel. Compatible with HTTP, XML, or Modbus TCP/IP protocols, network configuration is accessible using web-based pages (no programming required). Operators can monitor or setup controls from a remote area using the internet or local IP network and any standard web browser. Functions and controls include: on/off, pulse and monitor. Password protection for the setup page is available (10 characters maximum). A modbus/DALI gateway is required (not included) to control this LED light. This gateway or controller, which facilitates light dimming and activation/deactivation, must support DALI output. Network: The network controller is equipped with one optically-isolated digital input and one SPDT relay contact. Compatible with 9-28 V DC, the unit features a 3-position removable relay (N, NO, NC), a 5-position removable power/inputs and an 8-pin RJ-45 port for network connections. Operators can mount the device on walls, surfaces or din rails for space-saving benefits.
The above image shows the comparison of the traditional (4) 2000 watt metal halides light fixtures mounted to a 30' light tower (left) to (4) GAU-ANC-LR-380W-LED-D-R2-SFC 380 watt LED light fixtures mounted to a 30' light tower. The area being illuminated by each tower is 300' in length and 250' in width. Unlike the metal halide light fixtures, there are no hot spots with these LED fixtures. This high output LED light fixture provides an even beam spread over the targeted work area without overcast, glare, light spillage, and wasted illumination. Color rendering is also increased with LED light plants, providing a more realistic night vision that more closely resembles natural daylight illumination.
LED Benefits:  Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. Durability: As well as unparalleled heat control, the GAU-ANC-LR-380W-LED-D-R2-SFC series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Voltage: This light is universal voltage capable and can be operated with 120-277 V AC, 50/60 Hz without modifications. This LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The extruded aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. Mounting: Each unit is equipped with a back mount trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 160° of vertical movement. To adjust the unit after mounting, the user simply loosens the set screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning.
