500W LED Crane Light - Marine Applications - 480V - 60,990 Lumens - Stainless Steel Bracket - UL1598

LARSON ELECTRONICSSKU: PL3-GAU-HB-500W-LED-SS-480V
filler

Precio:
Precio de venta$9,536.00

Descripción

Specifications / Additional Information
GAU-HB-500W-LED-SS-480V LED Marine Application Crane Light Features
Lamp Type: LED Light Weight Aluminum Construction
Dimensions: 22.92"L x 14.51"W x 6"D Instant On - No Warm Up Times
Total Watts: 500W 100,000+ Hours
Lumens: 60,990 Low Maintenance
Color Temperature: 4000K Reduces Energy Consumption
Color Rendering Index: 70 RoHS Compliant
Voltage: Multi- 347-480V AC, 50/60Hz UL1598 Rated for Wet Locations
Amps: 1.40 Amps @ 347V, 1.00 Amps @ 480V 3/16" Stainless Steel Mounting Bracket
Luminous Efficacy: 122 Lm/W Rubber Vibration Isolator Bushings
Lighting Configuration: Wide Flood Pattern Ideal for Crane Mounting in Wet Locations
Housing Material: Die Cast Aluminum Ideal for Marine Applications
Lens Material: Borosilicate Prismatic Glass
Housing Color: Grey
Mounting: 3/16" Stainless Steel Bracket w/ Rubber Vibration Isolator Bushings
Weight: 52 lbs
Temp Rating: -40°C to +80°C
' Product Overview '

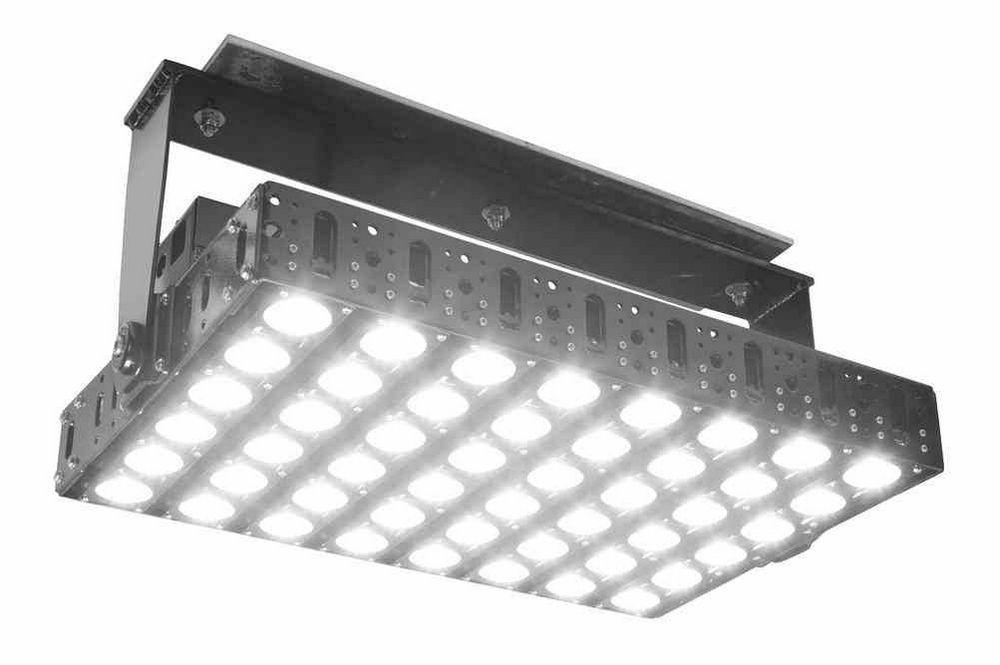

The GAU-HB-500W-LED-SS-480V from Larson Electronics is a Heavy Duty LED Light Fixture that makes an ideal light for outdoor cranes including cranes that are located in wet areas or used for marine applications. This LED light offers operators superior lighting output of 60,990 lumens and extreme ruggedness and durability with a UL1598 listing for wet locations. LED technology and light weight design makes this lamp an excellent energy efficient upgrade option for bulky and high maintenance cost fixtures. The durable die cast aluminum construction makes the GAU-HB-500W-LED-SS-480V a durable lighting option for large outdoor cranes in marine applications as well as other high mounting locations in wet locations and marine areas. The included stainless steel mounting bracket offers operators the peace of mind to know that once this LED light is installed it will stay secure and free of the corrosion that marine environments and wet locations can quickly cause on mounting brackets made from lower quality materials. The GAU-HB-500W-LED-SS-480V operates on voltages ranging from 347-480V AC while drawing 1.40 amps @ 347V and 1.00 amps @ 480V. This 500 watt LED marine location crane light fixture provides 60,990 lumens of high quality light while drawing only 500 watts and is ideal for use on cranes, high elevation mounting in wet areas, marine locations and anywhere an effective and efficient high mounting marine application lighting solution is needed. A borosilicate prismatic glass lens protects the LED light assembly and the die cast aluminum body reduces weight compared to larger metal halide and high pressure sodium fixtures. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 100,000 hour rated lifespan with 80% lumen retention. A 52 lbs weight, 3/16" stainless steel mounting bracket and low profile make this unit an attractive and energy efficient alternative to larger and heavier older light fixtures and requires less hardware to install. The included rubber vibration isolator bushings for the mounting bracket minimize any effect that the vibrations created during crane function and use could potentially cause. The GAU-HB-500W-LED-SS-480V features a grey housing that is powder coated for extreme durability. The LED modules in this LED light are have an IP66 waterproof rating and the entire fixture is UL1598 listed for wet locations. Voltage: This light is universal voltage capable and can be operated with 347-480 VAC without modifications. 347V is common in Western Canada, while 480V is common in the United States and Eastern Canada. This high mounting marine application and crane LED light fixture is IP66 rated, dust-proof, and the entire fixture is UL1598 listed for wet locations including marine areas.The cast aluminum body,LED lamp and stainless steel mounting bracket with rubber vibration isolator bushings give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This LED crane light is multi-voltage capable and can be operated with 347-480V AC, 50/60Hz without any need for a special ballast. The aluminum body and LED luminaries give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED light fixture produces 60,990 lumens of light with a color temperature of 4000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The LEDs used in this light use less energy and create less heat which reduces energy costs by lowering the amount of electricity needed to both illuminate and cool large areas. The GAU-HB-500W-LED-SS-480V features a 3/16" stainless steel mounting bracket with rubber bushings for vibration isolation. The stainless steel material of the mounting bracket will stand up to moisture exposure without rusting.
Suggested Applications: The GAU-HB-500W-LED-SS-480V is an ideal lighting solution for cranes and other high elevation mountings that are located in marine areas and other wet locations.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 80% lumen output after 100,000 operating hours. 6. Powder coated aluminum fixture body. 7. 3/16" stainless steel mounting bracket with rubber vibration isolator bushings. 8. Low profile - Light weight 9. 60,990 Lumen output from only 500 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
