400W High Bay LED Fixture - 200-480V AC, 50/60Hz - Cold Forged Housing - Energy Star/IP66

LARSON ELECTRONICSSKU: PL3-GAU-HB-80L-LED-WP-WCM-3480-M1
filler

Precio:
Precio de venta$2,530.00

Descripción

Specifications / Additional Information
GAU-HB-80L-LED-WP-WCM-3480-M1 High Bay LED Light Ratings/Features
Lamp Technology: LED IP65
Dimensions: 13.15"-H x 14.13"-W Energy Star Rated
Weight: 5.24 lbs Cold Forged
Voltage: 200-480V AC 1PH, 50/60 Hz 180° Rotation
Total Watts: 400W
Lumens: 54,000 lms
Luminous Efficacy: 135 Lm/W
Expected Lifespan: 55,000+ Hours
Color Temperature: 3,000K; 4,000K; 5,000K or 5,700K
CRI: >84
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 60°, 90° or 120°
Light Configuration: Flood
Power Efficiency: -
Power Factor: >0.95
Amps: 1.45A
Ambient Operating Temp Range: -22ºF to 122ºF
Housing Material: Aluminum
Lens Material: Acrylic (PC)
Mounting: Hook, Bracket and Pipe
Eye Bolt: M12
Wiring: 15' Wire
Housing Color: Black
' Product Overview '

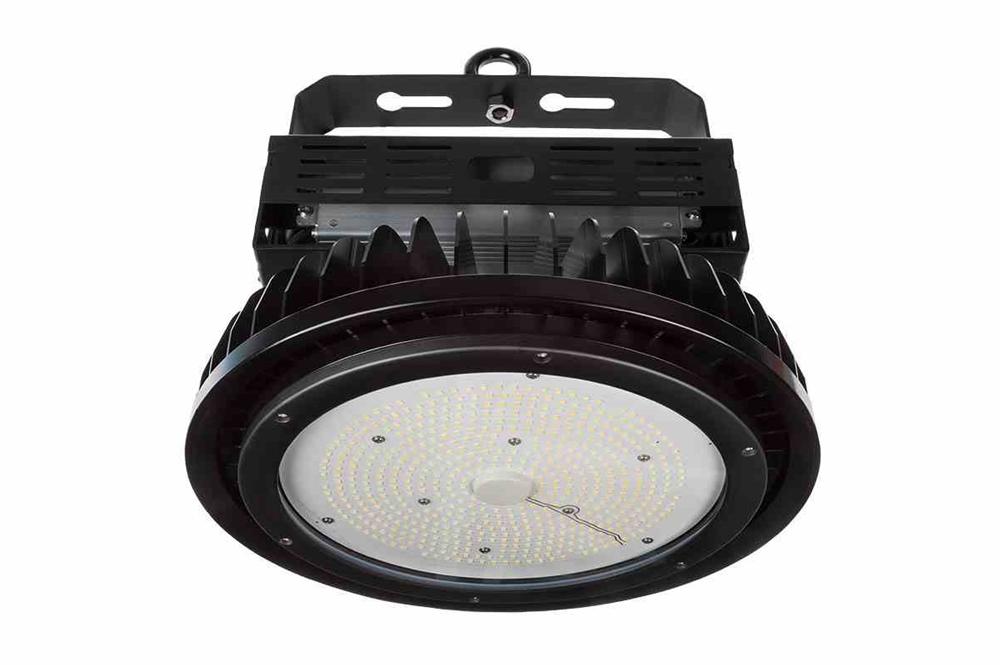

The GAU-HB-80L-LED-WP-WCM-3480-M1 from Larson Electronics is a High Bay LED Fixture that is designed for industrial work sites and elevated lighting requirements. The 400-watt fixture operates on 200-480V AC, 50/60 Hz and emits 52,000 lumens of white light during use. Made out of aluminum with an acrylic lens, the unit caters to Hook, Bracket and Pipe mounting configurations. The GAU-HB-80L-LED-WP-WCM-3480-M1 is a powerful lighting solution for large, industrial spaces. This high bay LED lamp consumes 400 watts during operation. The circular fixture provides 54,000 lumens of white light at 135 lm/W. A minimum CRI rating of 84 ensures accurate color depiction inside facilities. Color temperature options include: 3,000K; 4,000K; 5,000K or 5,700K. The unit was made using cold forging, which enhances thermal resistance. This LED lamp is offered with the following beam angle options: 60°, 90° or 120°. The high bay LED light is constructed of aluminum with an acrylic (PC) lens. The IP65-rated fixture is suitable for outdoor locations and complies with Energy Star standards. Designed for elevated mounting applications, the black LED lamp operates in -22ºF to 122ºF environments. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage/Power: The high bay LED light is compatible with single-phase 200-480V AC, 50/60Hz and has a current draw of 1.45 amps. Wiring: A 15" wire for power connections is included with this unit. Mounting: The GAU-HB-80L-LED-WP-WCM-3480-M1 features a variety of mounting options: Hook, Bracket and Pipe. For hook mounting configurations, the LED fixture can hang suspended in the air, via an M12 eye bolt located at the back of the unit. When secured using a mounting bracket, the configuration offers up to 180° of rotation, at 30° increments. Pipe mounting configurations are suitable for sturdy support in overhead positions. Suggested Applications: Outdoor lighting, wet locations, retail spaces, lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers and more.
