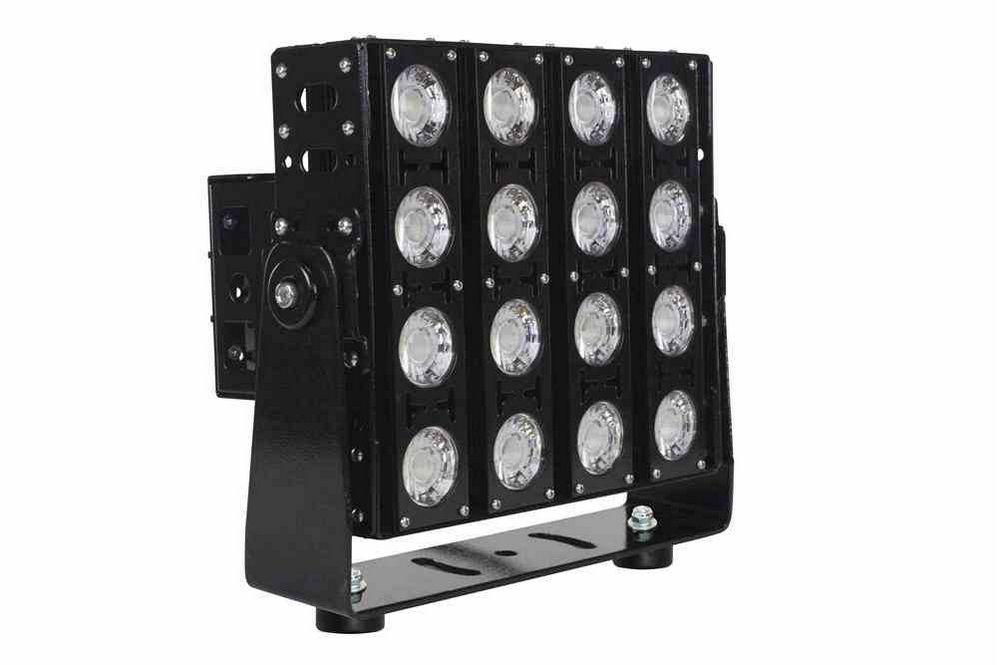

160W High Intensity LED Light - 21,600 Lumens - 120-277VAC - Anti-Shock Mount - High Mast Lighting

LARSON ELECTRONICSSKU: PL3-GAU-LTL-150W-LED-ASM
filler

Precio:
Precio de venta$3,546.00

Descripción

Specifications / Additional Information
GAU-LTL-150W-LED-ASM High Mast Anti-Shock Mount LED Light Quick Summary
Lamp Type: CREE® LED 300 Watt Metal Halide Replacement
Dimensions: 12.60"-L x 9.77"-W x 5.07"-D Ambient Op Temp -40°C to +80°C
Weight: 13.3 Lbs Ideal for Light Towers & LED Retrofits
Total Watts: 150 98% Transmission High Purity PMMA Optics
Total Lumens: 20,250 Multiple LED Banks for Heat Dispersion
Luminous Efficiency: 135 lm/w 135 Lumens Per Watt Efficiency
Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood 70% Lumen Retention after 80,000 Hours
LED Color Temperature: Cool White - 5500-6500K UL1012 Compliant
LED Life Expectancy: 80,000 hours UL60950-1 Compliant
Optics Efficiency: 98% - PMMA High Transmittance Optics CE Certified
Led Drive %: 90% RoHS Compliant
Voltage: 120-277V AC IP67 Rated Waterproof
Amp Draw: 1.25A @ 120V, 0.625A @ 240V, 0.54A @ 277V Rubber Isolators Reduce Shock/Vibration During Operation
Wiring: 10` Pigtail w/ Flying Leads
Mounting: Flat Surface Trunnion Anti-Shock Mount U-Bracket
Materials: Die Cast Aluminum Housing, PMMA Optics Toll Free: 1-800-369-6671
Housing Color: Powder Coated Black Intl: 1-214-616-6180
Ambient Temperature Range: -40°C to +80°C Fax: 1-903-498-3364
Waterproof Rating: IP67 E-mail:
' Product Overview '
The GAU-LTL-150W-LED-ASM High Mast Anti-Shock Mount LED Flood Light offers intense light output and is ideal for flood lighting, high mast lighting, light towers, as well as industrial and outdoor lighting applications. Producing 20,250 lumens, a 1.25 amp draw at 120V, 80,000 hour service life, 120-277 volt compatibility, and IP67 waterproof rating, this LED flood light provides operators with a rugged and powerful LED alternative to 400 watt metal halide lamps that uses little power and can withstand rugged use and abusive conditions including high vibration environments thanks to the anti-shock design. The GAU-LTL-150W-LED-ASM LED light from Larson Electronics produces 20,250 lumens of high intensity light while drawing only 150 watts at 1.25 amps from a 120 volt electrical system. Sixteen CREE® high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. The GAU-LTL-150W-LED-ASM features an anti-shock design that makes this LED light ideal for high vibration environments such as mining operations. GAU-LTL-150W-LED-ASM lights are ideal replacements for fragile and hot running 300 watt metal halide lamps. They offer low power requirements, high durability and a versatile anti-shock mounting system that makes these LED light emitters a superior lighting solution for demanding applications, such as mining operations, where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. Durability: As well as unparalleled heat control, the GAU-LTL-150W-LED-ASM series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Mounting: Each unit is equipped with a back mount trunnion style anti-shock mounting bracket that allows the light to be attached to flat surfaces and adjusted through 160° of vertical movement. Rubber isolators reduce shock/vibration during operation. One isolator per mounting bolt reduce vibration transferred between the mounting surface and the trunnion mount. These anti-shock absorbers allow this light to be installed in high vibration environments, such as on mining equipment. To adjust the unit after mounting, the user simply loosens the set screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning.
