Buy American Compliant

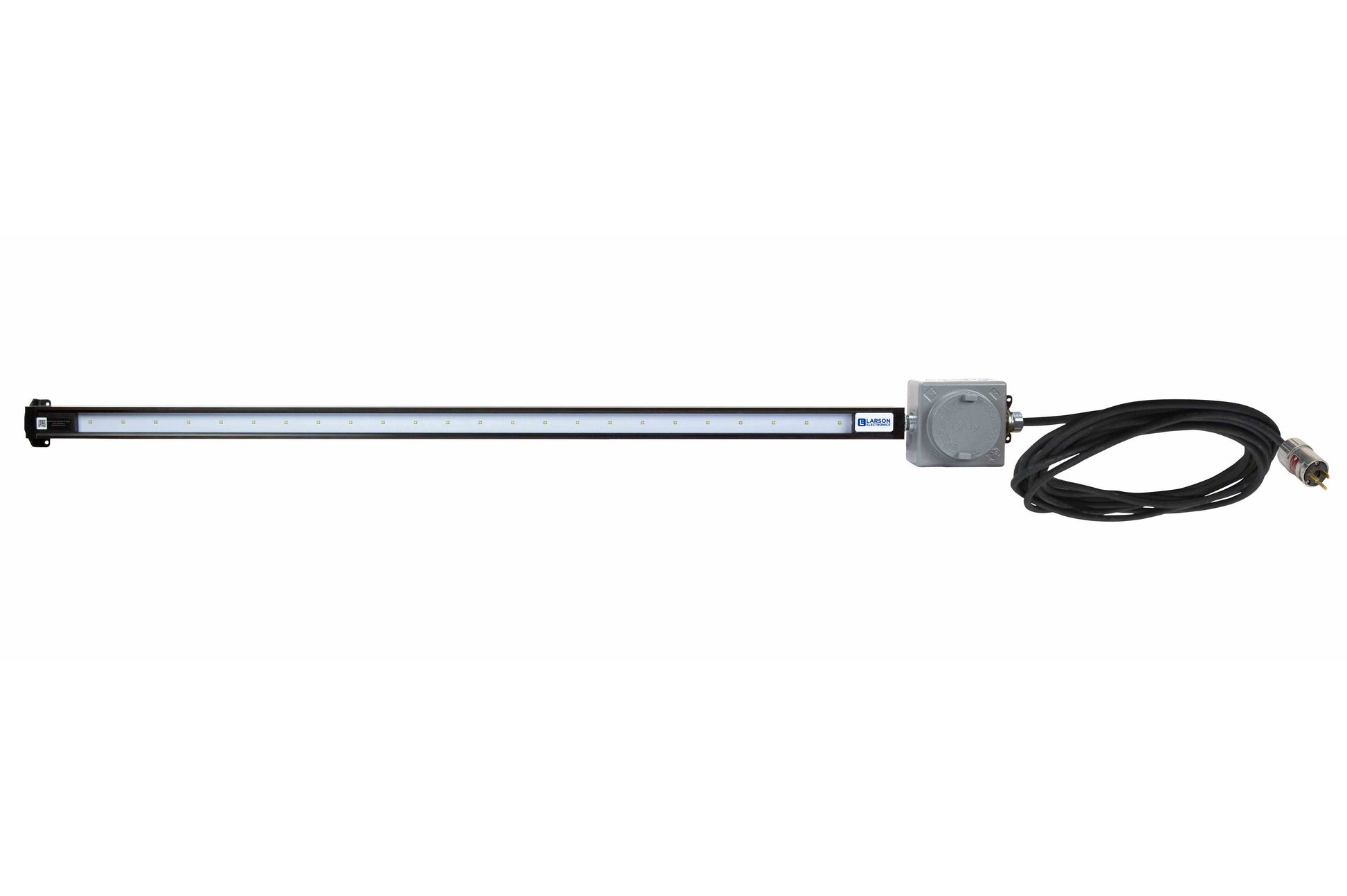

The Larson Electronics GSLEDIP48-C1D2-1227-25C-EPP is a high voltage hazardous location lighting solution approved for Class 1 Division 2 environments and UL 1598 compliant for use in wet locations. This powerful 46.88" long LED strip light produces 2416 lumens, operates from 120 to 240V AC, and is suitable for a variety of applications. The LED unit comes with 25` of 16/3 SOOW cord and an explosion proof cord cap.
The GSLEDIP48-C1D2-1227-25C-EPP is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This explosion proof light can be operated with voltages ranging from 120V to 240V AC. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 46.88" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures.
Durability/Mounting:
The GSLEDIP48-C1D2-1227-25C-EPP hazardous location LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and basic protection against splashing water such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered.
The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs.
Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light 170° vertically for the best placement. The entire assembly weighs 2.8 lbs and measures 46.88 inches in length, and 2.68 inches wide and 1.69 inches deep, making it ideal for mounting in areas where space is limited and a low profile fixture more readily installed.
5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug
Wiring & Plug:
The GSLEDIP48-C1D2-1227-25C-EPP is equipped with 25` of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
**PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the security camera will occur.
Versatility:
The GSLEDIP48-C1D2-1227-25C-EPP is ETL approved for Class 1 Division 2 groups A, B, C and D locations. This unit carries an IP54 water resistant rating ensuring protection against limited ingress from dusts, dirt, and basic protection against light water spray landing directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Lamp Type:
Dimensions: Lamp 46.88"-L 2.68" -W 1.69"- D
Weight: 2.8 lbs | 1.2 kg
Watts: 33.6
Voltage: 120-240 VAC
Lumens: 2416
Lamp Life Expectancy: 100,000 Hours
CRI: 75
Amps: 2.64 A @12 VDC | 1.32 A @ 24 VDC
Light Color: 6500K
Beam Type: 100° Flood
Mounting: Standard Triangle End Brackets
Temp Range: -40°C – +85°C
Wiring: 25` 16/3 SOOW Cord w/ EXP Cord Cap
Cord Cap Options: 5-15P, 5-20P, 6-20P
