Larson 28 Watt Vapor Proof LED 4 Foot Light - 125V DC Mining/Crane Lighting - 3500 Lumens - IP67 Waterproof

Larson ElectronicsSKU: PL3-GVP-48-1L-LED-125VDC
filler

Precio:
Precio de venta$618.00

Descripción

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

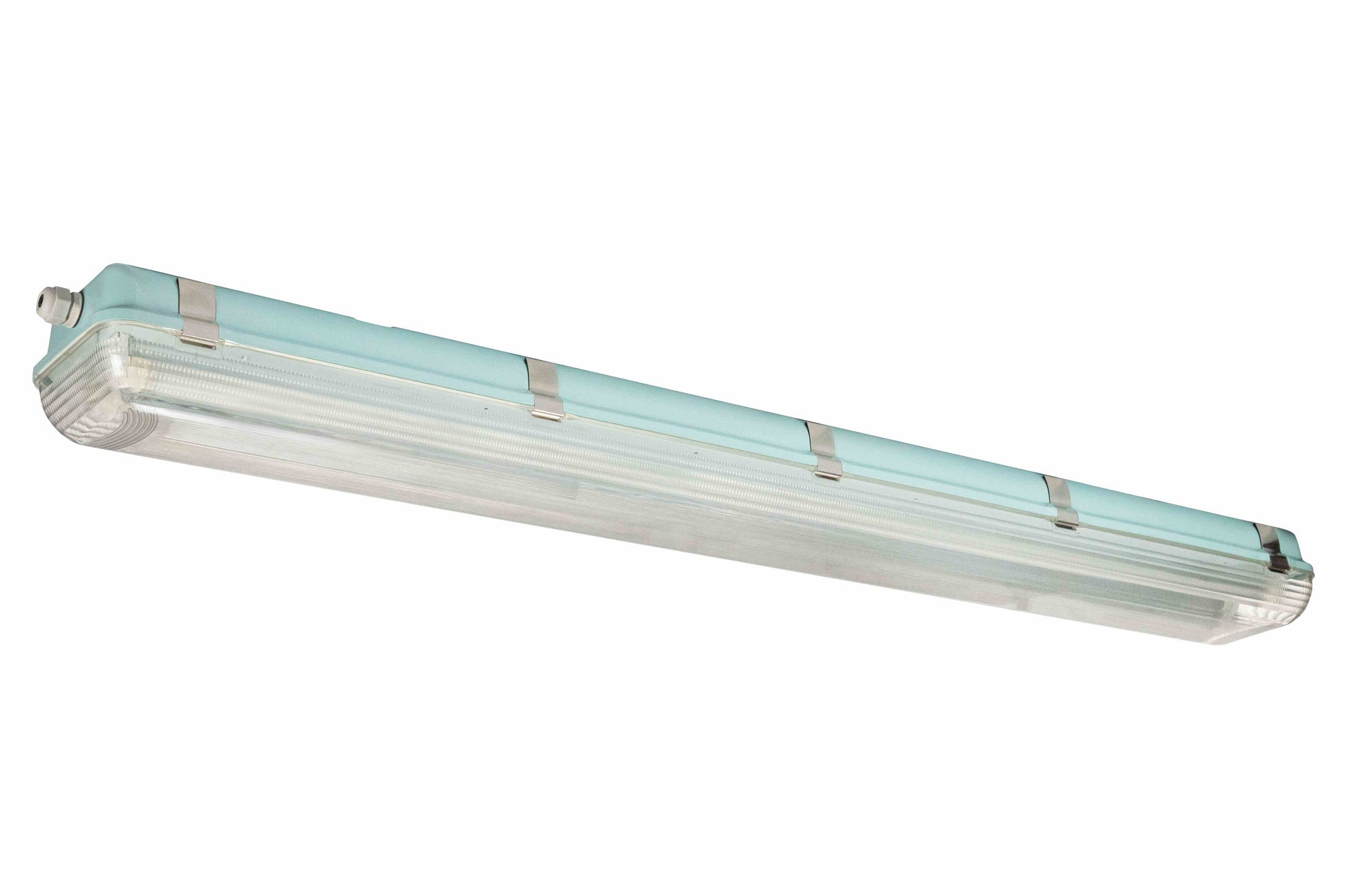

The Larson Electronics GVP-48-1L-LED-125VDC is similar to our popular explosion proof LED fixtures and provides an LED alternative to fluorescent fixtures that provides longer lamp life and higher performance. This single-lamp LED fixture produces more output and longer lamp life with impact/vibration resistant features. The vapor proof LED light is ideal for applications such as ships, offshore applications, cranes, and mininig environments where 125V DC is availlable and a vapor proof fixture is required.
Please note that this unit is vapor proof and not approved for use in hazardous locations.
This four foot long, single-lamp LED fixture is ideal for operators seeking a top quality vapor proof light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The GVP-48-1L-LED-125VDC LED light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This fixture is equipped with one specially designed LED T8 style LED bulb which produces 3500 lumens with a color temperature of 5600K or 4500K. The GVP-48-1L-LED-125VDC, four foot long, single-lamp LED light fixture is designed for those who wish to replace or upgrade from fluorescent equipped fixtures and offers better light output and longer lamp life with reduced maintenance costs. Without a ballast and solid state LED light tubes, this fixture draws less than 1 amp of power while offering durability and versatility that common fluorescent fixtures cannot match.
We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This single lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs.
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and overall complexity of installation. There is no ballast in this unit and the included
LEDT8-28W-V1
LED lamps have a 50,000+ hour service life, both of which results in extreme efficiency and greatly reduced maintenance costs. These fluorescent LED lamps have internal drivers, eliminating external power components. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. This second generation lamp is offered in 5600K cool white, 4500K natural white, and 3000K warm white. Our standard unit ships with 5600K unless different color temperature is specified.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 28 watt LED lamp produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. The lamp produces 3,500 lumens at 62.5 lumens per watt. A four foot, single lamp T8 fluorescent light, with a combined total of 28 watts, draws 0.27 amps at 120 volts DC. This LED version of the same light, with a total of 28 watts, draws only 0.23 amps at 120 volts DC. The GVP-48-1L-LED-125VDC operates on 125V DC (direct current) and is not designed to operate on AC current from standard electrical systems.
Energy Consumption Comparison
T5HO
T8
LED
Wattage
54 watts
32 watts
28 watts
Amp Draw @ 120V DC
0.45 amps
0.27 amps
0.23 amps
Lamp Life Expectancy
20,000 hours
24,000 hours
50,000 hours
Color Temperature
5000K / 4100K
4100K
5600K
Operation cost per year
$28.38
$16.82
$14.71
This unit is designed to be either surface mounted or hung from cable or chain and includes built in mounts. The GVP-48-1L-LED-125VDC light fixture comes with a multi-purpose mounting bracket that can be used for a direct surface mount or reversed and used for chain hanging the unit.
Applications:
Marine ships, offshore applications, cranes, mining spaces and anywhere a rugged and dependable fixture with high output, high efficiency, and 125V DC operation is needed.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Superior LED Benefits
1. 50,000 hour lifespan.

Specifications
Listing: United States - Canada
Dimensions: 49-3/4"L x 5-7/8"W x 4-3/16"H
Weight: 5 lbs
Voltage: 125V DC
Total Watts: 28W
Total Lumens: 3,500
Luminous Efficacy: 62.5 Lumens per Watt
LED Lamp Life Expectancy: 50,000+ Hours
Color Temp: 5600K, 4500K, 3000K
Color Rendering Index: >80
Beam Angle: 160°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range: -40° C to +65°C
Mounting: Surface or Chain Standard
Wiring Hub: 1/2" NPT
