185 Watt Hazardous Location LED Light - Base Stand Mount - C1D2 - ATEX - 100 foot Cord w/ EXP Plug

LARSON ELECTRONICSSKU: PL3-HAL-16BS-1X185LED-CPR-100
filler

Precio:
Precio de venta$5,618.00

Descripción

Specifications / Additional Information
HAL-16BS-1X185LED-CPR-100 LED Light with Base Stand Mount Ratings
Lamp Type: LED Listed for United States, Canada, Europe, International
LED Light Dimensions: 15.75"L x 15.75"W x 7.28"H Class I, Division 2, Groups A,B,C,D
Weight: 30 lbs IEC Ex / ATEX - Ex ec IIC T4 Gc
Voltage: Universal- 90-305V AC, 50/60Hz Approved for Zone 1, Zone 21
Total Watts: 185W NRTL Certified to UL 844
Total Lumens: 18,500 NRTL Certified to UL 1598
Luminous Efficacy: 100 Lm/W NRTL Certified to C22.2 No. 137
LED Lamp Life Expectancy: 100,000+ Hours NRTL Certified to C22.2 No. 250.0
Color Temp: 5700K, Cool White (Also available in 4000K and 2700K) NRTL Certifed to IEC 60079
Beam Angle: 120° NRTL Certifed to EN 60079
Power Factor: ~0.98 T4 Temperature Rating
Operating Temperature Range: -30°C to +65°C PSE Certified, SAA Certified
Housing Material: Die Cast Aluminum IP68 Waterproof
Lens Material: Tempered Glass
Housing Color: Grey
Mounting: Adjustable Base Stand Mount
Wiring: 100` 16/3 SOOW Cable
Cord Cap: 5-15, 5-20, or 6-20 Explosion Proof Cord Cap
' Product Overview '

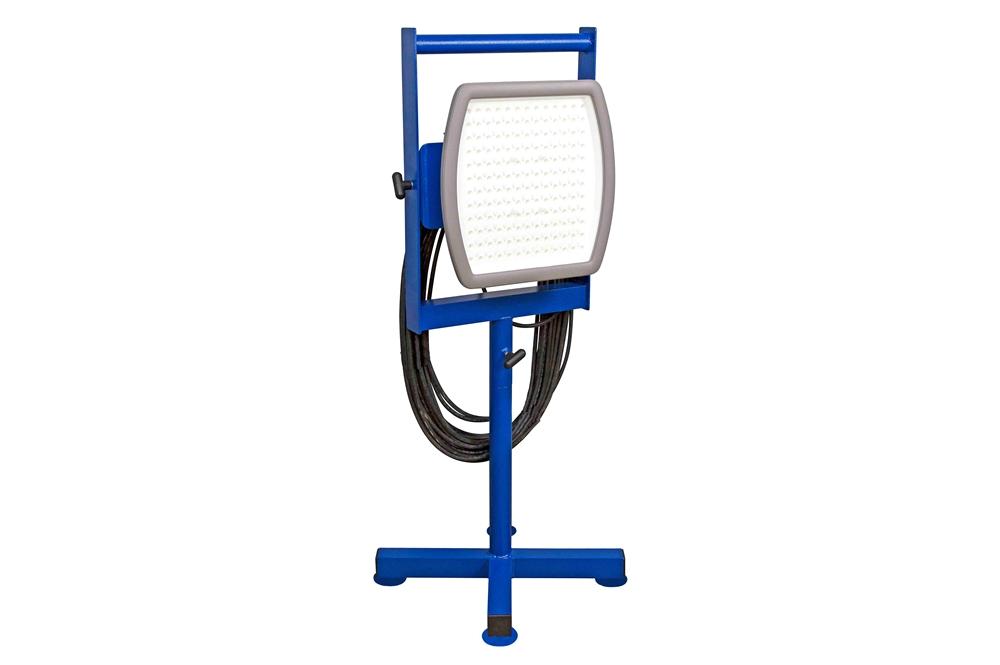

Made in Texas The Larson Electronics HAL-16BS-1X185LED-CPR-100 hazardous location LED light stand provides operators with a powerful and energy efficient alternative to other hazardous area luminaries such as high pressure sodium (HPS), metal halide (MH), and halogen lights. LED technology and a sturdy design make this light perfect for a wide variety of illumination needs. The durable base stand mount design can be adjusted for angle and provides a sturdy and rugged stand for portable illumination, temporary hazardous area lighting, and other hazardous location lighting needs. This Class I Division 2 explosion proof LED portable light tower provides 18,500 lumens of lighting power while drawing 185W. The fixture on this hazardous location base stand mount LED light stand is built from durable die cast aluminum with a tempered glass lens while the frame itself is made from rugged aluminum with a powder coated blue finish. This hazardous location LED light stand is rated for 100,000+ hours of lamp life and is adjustable to the desired angle. The HAL-16BS-1X185LED-CPR-100 is also a great option when upgrading lighting from older and higher maintenance cost explosion proof lighting. The HAL-16BS-1X185LED-CPR-100 is available in a wide range of voltage options from 90-305 VAC. It features 156 individual LEDs that offer high-quality light in a 120° beam spread. Recommended in a color temp of 5700K, this light is also available in 4000K and 2700K. The cool white of a 5700K color temperature fixture provides clear, bright light for great illumination of any work area. A dust resistant coating protects the rear cooling fins from excessive dust build-up making this hazardous area LED lighting unit from overheating and compromising the lifespan of the LEDs. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Tower:This C1D2 LED light fixture comes with a durable and ruggedly designed four-legged base stand for easy deployment in a wide variety of work areas. The angle of the hazardous location LED light fixture can be adjusted 90° up or down via a T-handle located on the side of the stand. Each of the four feet on this portable hazardous area light are adjustable to level the light during use in the field. The portable design of this hazardous location LED light stand makes for easy transportation around any location or work site. The small dimensions of the base stand design lends itself well as a temporary hazardous location lighting and as a source of illumination in tight areas. The 100 feet of 16/3 SOOW cable on the HAL-16BS-1X185LED-CPR-100 leaves plenty of room for easy movement around even large work areas.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: The HAL-16BS-1X185LED-CPR-100 is outfitted with 100` of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Applications:Refineries, Storage Facilities, Gas and Oil Facilities, Wastewater and Sewage Plants, Gas Stations, Farm Buildings, Aerospace, Military, Oil Rigs, and Frac Pads
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of durable die aluminum. 4. Superior color rendering compared to HPS, LPS, MH. 5. 100,000+ hours LED lamp life expectancy. 6. Tempered glass lens. 7. Portable and Angle Adjustable Base Stand Mount 8. Low profile - Light weight 9. 18,500 Lumen output from 185 watts 1. 100,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
