Class 1 Div 2 LED Pivoting Light - 2 foot 2 lamp - LED T series Style (Fluorescent Replacement) - 50' 16/3 SOOW Cord w/ Explosion Proof Cord Cap

LARSON ELECTRONICSSKU: PL3-HAL-24-2L-LED-BMSW-50C-EPP
filler

Precio:
Precio de venta$1,390.00

Descripción

Specifications / Additional Information
HAL-24-2L-LED-BMSW-50C-EPP Hazardous Area Ratings
Dimensions: 7"W x 25.5"L x 6.125"H NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Weight: 14 lb NRTL Certified to UL 1598A Marine Type
Voltage: Universal 120-277 V AC 50/60 Hz or 11-25 V AC/DC California Title 24 Compliant
Total Watts: 28 watts Class 1 Division 2, Groups A, B, C and D
Total Lumens: 3,500 NRTL Listed for United States and Canada
LED Lamp Life Expectancy: 50,000+ Hours
Luminous Efficiency: 125 Lumens per Watt
Color Temp: 5600K, 4500K, or 3000K
Color Rendering Index: >80
Beam Angle: 150°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-30° C to +85°C
Operating Temp Rating: T4A
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Sheet Aluminum
Lens Material: Acrylic
Mounting: Back Mount Swivel Bracket Toll Free: 1-800-369-6671
Wiring Hub: 3/4" NPT Intl: 1-214-616-6180
Wiring: 50' 16/3 SOOW w/ Explosion Proof Cord Cap Fax: 1-903-498-3364
Cord Cap Options: 5-15P, 5-20P or 6-20P
' Product Overview '

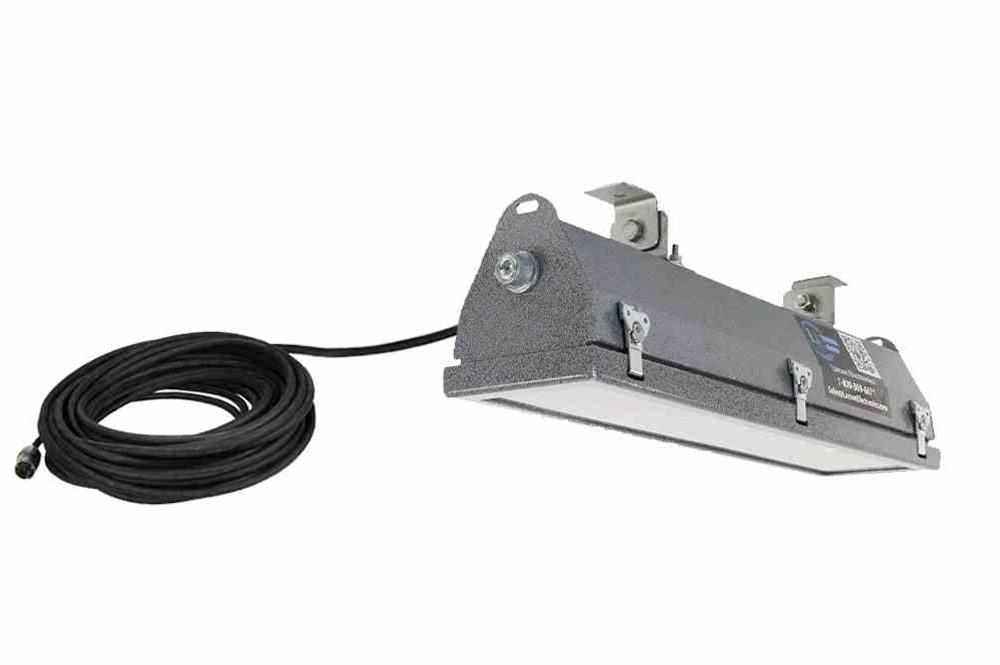

Made in the USA The Larson Electronics HAL-24-2L-LED-BMSW-50C-EPP Hazardous Area LED Light Fixture is Class I Division 2 Groups A, B, C and D rated - NRTL Certified to UL 1598A, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. The HAL-24-2L-LED-BMSW-50C-EPP is equipped with 50' of 16/3 SOOW cord that is terminated in an explosion proof cord cap. The HAL-24-2L-LED-BMSW-50C-EPP fixture is a 2 foot long, 2 lamp, UL listed Class I Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 14 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with four zinc coated steel draw latches. The fixture is constructed of copper free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277 V AC as well as 12-24 V DC and is NRTL Certified to UL 595 and UL 1598A Marine Type approved for use marine environments. The HAL-24-2L-LED-BMSW-50C-EPP is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4A temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8 bulbs. The 14 watt LED lamps produce more illumination than standard T8 bulbs, but draw only 3/4 of the current. The current generation of Larson Electronics LED T-series style bulbs produce 15% more light than standard T8 bulbs. This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277 Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (-LV suffix). Our HAL-24-2L-LED-BMSW-50C-EPP LED light fixture is NRTL Listed for United States and Canada. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the that hold the bracket to the mounting peg. This fixture allows 45 degrees of pivot from the 90 degree point.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof light is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
