Explosion Proof Fluorescent Fixture - Class I, Div. II - Hazardous Location - 220Volts, 50/60Hz

LARSON ELECTRONICSSKU: PL3-HAL-48-2L-220V
filler

Precio:
Precio de venta$1,496.00

Descripción

Specifications / Additional Information
HAL-48-2L-220V Hazardous Area Ratings
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-7"   L-49 3/4 "   H-6 1/8 " NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Weight: 33 Lbs NRTL Certified to UL 1598A Marine Type
Total Watts: 108 watts* California Title 24 Compliant
Voltage: 220Volts, 50/60Hz
Total Lumens: STD-T5-HO Bulbs 10,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs  92 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C
Beam Angle: N/A
Color Temp: 4100K-
Mounting: Bracket Standard - Pendant Optional
Wiring Hub:1/2" or 3/4" threaded

*Wattage totals are lamps only and may vary with different lamps.
' Product Overview '

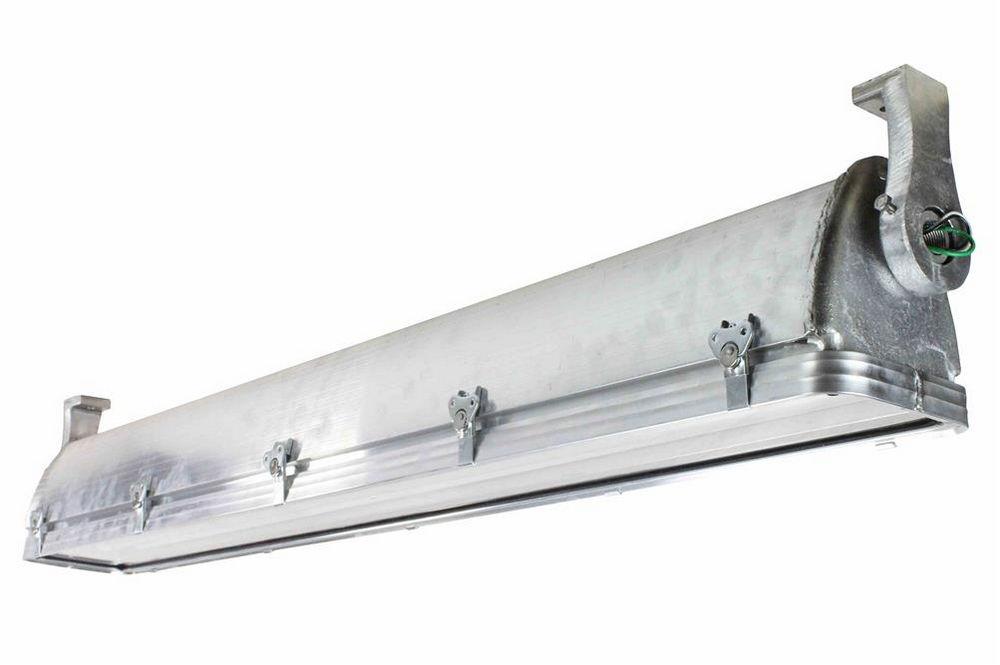

Made in the USA The Larson Electronics HAL-48-2L-220V  Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and Canada Class 1 Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered. This hazardous location fluorescent fixture runs off 220Volts, 50/60Hz and is equipped with standard surface end mounts. The HAL-48-2L-220V fixture is a 4 foot long, 2 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in applications where a high voltage lighting option is needed. This fixture is T4A temperature rated, comes standard with included F54-T5/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is designed to operate on 220Volts, 50/60Hz and is NRTL Certified to U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-48-2L-220V provides operators in hazardous locations with a reliable high voltage lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
Surface Mount Pendant Mount
NOTE ON LAMPS: This fixture comes equipped with F54-T5/841/HO €“ 54 Watt lamps producing 5,000 lumens per bulb, a 4100 Kelvin color and a 20,000 hour rated service life. We offer F48-T12/HO €“ 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color and F32-T8/841 €“ 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HAL-48-2L-220V has an electronic ballast and works with 220V 50/60Hz current.. Standard Surface Mount Brackets: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Mounting brackets are removable. A single through hole enables the operator to install the light to any surface. Cable and sliding bracket mounts are available in the related products menu below. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. 1/2" or 3/4", threaded access hole for wiring conduit.  7. Units can be wired end to end in series. F54-T5/841/HO €“ 54 Watt, 5000 lumens per bulb, 20,000 hours life, 4100 Kelvin color  F48-T12/HO €“ 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color  F32-T8/841 €“ 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color
