40W Hazardous Location LED RGB Pivoting Light - C1D2 - Dimmable/DMX Protocol - Meets USCG Specs

LARSON ELECTRONICSSKU: PL3-HAL-ADX-48-2L-LED-BMSW-D-V2-RGB
filler

Precio:
Precio de venta$3,626.00

Descripción

Specifications / Additional Information
HAL-ADX-48-2L-LED-BMSW-D-V2-RGB Hazardous Area Light Fixture Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I Division 2, Groups A, B, C & D
Lamp Technology: Dimmable LED NRTL Certified to UL 844
Dimensions: 51.1"-L x 7.09"-W x 8.65"-H NRTL Certified to UL 1598A Marine Type
Weight: - NRTL Certified for Canada
Lamp Qty: (2) Meets USCG Specs
Voltage: Universal 120-277V AC 50/60Hz California Title 24 Compliant
Total Watts: 40W DMX
Single-lamp Watts: 20W Dimmable
Total Lumens: -
Single-lamp Lumens: -
Luminous Efficacy: -
LED Lamp Life Expectancy: 50,000 Hours
LED Light Color: RGB - Dimmable
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 120°
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: -
Control Module: DMX (Color Changing and Intensity Levels)
Amps: -
Operating Temp Range: - Toll Free: 1-800-369-6671
Materials: Sheet Aluminum Housing, Acrylic Lens
Mounting: Back Mount Swivel Bracket
Wiring Hub: 1/2" or 3/4` Threaded
' Product Overview '

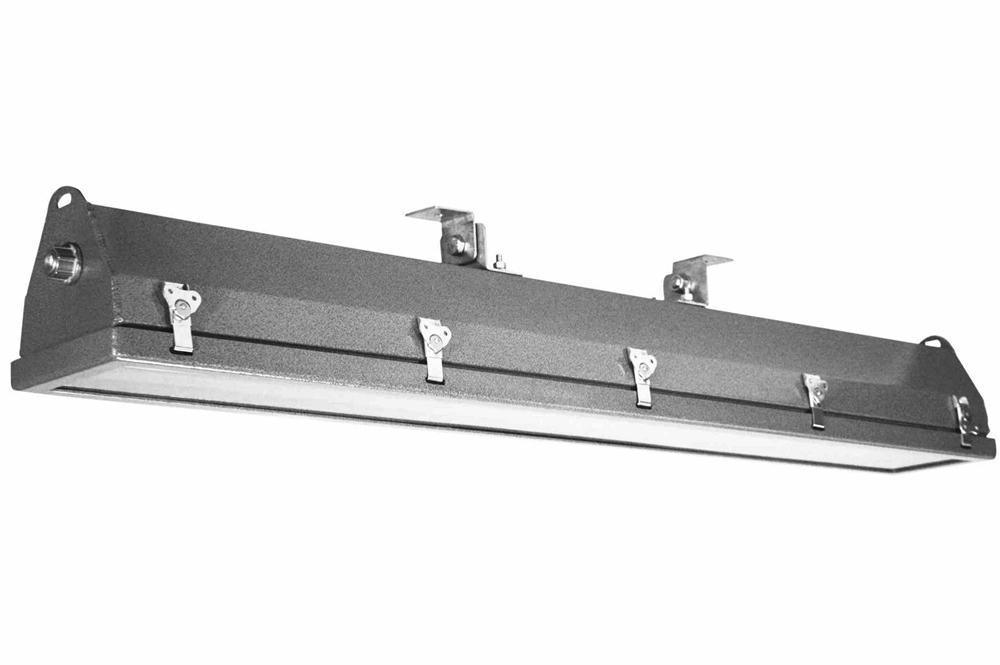

Made in the USA The Larson Electronics HAL-ADX-48-2L-LED-BMSW-D-V2-RGB Hazardous Location LED RGB Fixture is an energy-efficient lighting solution for Class I, Division 2 Groups A, B, C and D rated locations. Equipped with two 20-watt LED RGB lamps, this hazardous location LED light is compatible with DMX controls for changing the light color and intensity levels. The dimmable unit does not require programming during setup. This four-foot long, two-lamp, 0-10V dimmable LED RGB fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. This unit features two, 20-watt LED RGB lamps inside the unit. Operators can change colors and intensity levels via DMX control module. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches. This LED light fixture features 0-10V dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications. The fixture is constructed of copper free sheet aluminum and has powder coated finish. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This unit is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
Unlike the glass tube design of traditional fluorescent lamps, these LED lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting. The HAL-ADX-48-2L-LED-BMSW-D-V2-RGB is universal voltage, not multi-tap, and operates on any voltage from 100V to 277V AC 50/60hz without any modifications. Standard 0-10V dimming switches (mounted outside the hazardous location) are compatible with these hazardous location fixtures. Larson Electronics offers an for mounting within the hazardous location.
Energy Consumption Comparison
T5HO T8 LED
Wattage 108 watts 64 watts 56 watts
Amp Draw @ 120V AC 0.90 amps 0.54 amps 0.47 amps
Amp Draw @ 220V AC 0.49 amps 0.29 amps 0.25 amps
Amp Draw @ 240V AC 0.45 amps 0.27 amps 0.23 amps
Amp Draw @ 277V AC 0.39 amps 0.24 amps 0.20 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Color Temperature 5000K / 4100K 4100K 5600K
Operation cost per year (12hs/day @ 12c/kWh) $56.77 $33.64 $29.43
Mounting Options: Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the that hold the bracket to the mounting peg. This fixture allows 45° of pivot from the 90° point. Suggested Applications: Aircraft maintenance, oil drilling rigs, refineries, marine and salt water environments, ships, tankers, offshore, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants.
