Hazardous Location LED Pivoting Light - C1D2, C2D2 - Offshore LED Rig Light - Modbus TCP/IP Network
Hazardous Location LED Pivoting Light - C1D2, C2D2 - Offshore LED Rig Light - Modbus TCP/IP Network
Precio habitual
$2,886.00 CAD
Precio habitual
Precio de oferta
$2,886.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| HAL-ANC-48-2L-LED-BMSW Hazardous Area | Ratings/Approvals |
| UL Listing: United States - Canada | Class 1 Division 2, Groups A, B, C & D |
| Dimensions: 51.1"-L x 7.09"-W x 8.65"-H | UL 844 |
| Weight: 22.2 Lbs | UL 1598A Marine Type |
| Total Watts: 56 watts | cUL Listed for Canada |
| Total Lumens: 6720 | T4 Temperature Rating |
| Voltage: Universal 120-277V AC 50/60Hz or 12-24V AC/DC | Meets USCG Specs |
| LED Lamp Life Expectancy: 50,000 Hours | California Title 24 Compliant |
| Luminous Efficiency: 120 Lumens per Watt | Password Protected Network Controls |
| Operating Temp Range: T4A rated -40°C to +65°C | No Programming Required |
| Beam Angle: 150° | Modbus TCP/IP Connectivity |
| Color Temp: 5600K or 4500K - Color Rendering Index-75 | Â |
| Materials: Sheet Aluminum Housing, Acrylic Lens | Â |
| Mounting: Back Mount Swivel Bracket | Â |
| Wiring Hub: 1/2" or 3/4" Threaded | Â |
| Â | |
| Network Controller Specs | Â |
| Dimensions: 1.41" x 3.88" x 3.1" | Â |
| Weight: 5 oz | Â |
| Network Type: 10/100 Base-T Ethernet Port | Â |
| Protocols: HTTP, XML, Modbus TCP/IP | Â |
| Power Supply: 9-28V DC | Â |
| Digital Input: (1) Optically Isolated 4-26V DC | Â |
| Current: 950uA @ 4V, 8.5mA @ 26V | Â |
| Relay Contacts: (1) SPDT - 240V AC/30V DC Max @ 12A | Â |
| Relay Modes: On/Off or Pulsed | Â |
| Pulse Timer Duration: 0.1 to 86,400 Seconds | Â |
| Input Functions: Monitor, Local Relay Control, Remote Relay Control | Â |
| LED Indicators: (4) Digital Input Voltage Applied, Relay Coil Energized, Network Linked, Network Activity | |
| Operating Temperature: -40°C to 57°C | |
| Housing Material: Lexan 940 Polycarbonate Plastic | Toll Free:Â 1-800-369-6671 |
| Mount: Surface, Wall or DIN Rail | |
| Password Protection: Yes @ Setup (Base 64 Encoding, 10 Characters) | |
| Connectors: 3-position Removable (Relay- C, NO, NC), 5-position Removable (Power/Input), 8-pin RJ-45 (Network) |

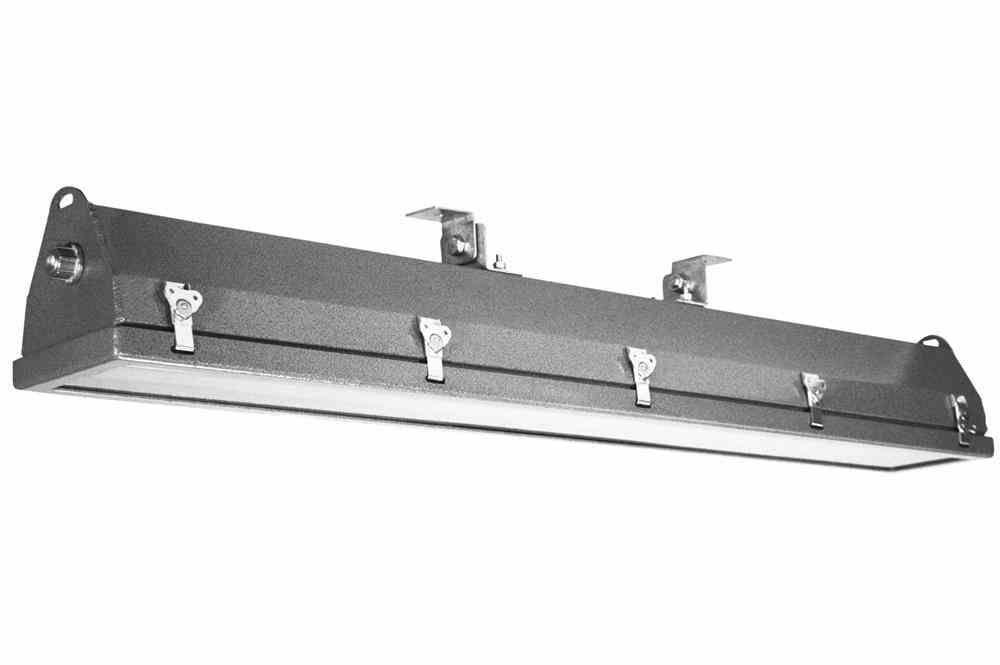

The Larson Electronics HAL-ANC-48-2L-LED-BMSW Hazardous Area LED Light Fixture is a U.S./Canada UL Listed connected lighting solution for Class 1 Division 2 Groups A, B, C and D work sites. Modbus TCP/IP network capable, this hazardous location LED light carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers. Operators can setup remote access, controls and configurations using the Modbus TCP/IP network controller (via a standard web browser).
This four foot long, two lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HAL-ANC-48-2L-LED-BMSW fixture is a 4 foot long, 2 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 28 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches.
We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This two lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs.
Aevum Network Controlled Lighting Solution: The Aevum Network Controlled Lighting Solution from Larson Electronics enables connected and intelligent illumination using cutting-edge and existing networks. Using Modbus TCP/IP or DALI (for fixtures with dimming features), businesses can seamlessly control lights and sensors from remote locations, without traditional light switches. Web-based panels facilitate real-time monitoring of connected equipment and allows operators to switch units on/off, configure activation settings and more. Businesses may utilize their own systems and software with these controllers, ensuring robust flexibility and cost savings (no contracts). The Aevum Network Controlled Lighting Solution can improve productivity in the workplace by automating basic lighting controls and making lighting controls widely accessible in the facility, via local networks or the internet. Operators also have the option to monitor the status of fixtures from a remote location, which can improve maintenance and reduce downtimes.
Controls: Controls for the explosion proof LED fixture is accessible using a web-based control panel. Compatible with HTTP, XML, or Modbus TCP/IP protocols, network configuration is accessible using web-based pages (no programming required). Operators can monitor or setup controls from a remote area using the internet or local IP network and any standard web browser. Functions and controls include: on/off, pulse and monitor. LED indicator lights on the device provide the real-time information about digital input voltage, relay coil, network status and network activity. Password protection for the setup page is available (10 characters maximum).
|
||||||||||||||||||||||||||||||||||||||||||||||
This fixture carries a T4A temperature rating and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The fixture is constructed of copper free sheet aluminum and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The HAL-ANC-48-2L-LED-BMSW is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3360 lumens at 120 lumens per watt, for a combined 6720 total lumen light output. A HAL-48-2L-T8 hazardous location fluorescent light, with a combined total of 64 watts, draws 0.54 amps at 120 volts AC. This LED version of the same light, with a total of 56 watts, draws only 0.47 amps at 120 volts AC. The HAL-ANC-48-2L-LED-BMSW is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power.
Network: The network controller is equipped with one optically-isolated digital input and one SPDT relay contact. Compatible with 9-28V DC, the unit features a 3-position removable relay (N, NO, NC), a 5-position removable power/inputs and an 8-pin RJ-45 port for network connections. Operators can mount the device on walls, surfaces or din rails for space-saving benefits.
|
