C1D2 Hazloc LED Pivoting Light - 2' (2) Lamps - Dual Emergency Backup, 90 Minutes @ Full Output

LARSON ELECTRONICSSKU: PL3-HAL-EMG-24-2L-LED-2XL
filler

Precio:
Precio de venta$3,506.00
 Más opciones de pago

Descripción

Specifications / Additional Information
HAL-EMG-24-2L-LED-2XL Hazardous Area LED Light Ratings
NRTL Listed for United States & Canada Class I, Division 2 Groups A,B,C,D
Dimensions: W-7" L-25 1/2" H-6 1/8" NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Lamp Technology: LED NRTL Certified to UL 1598A Marine Type
Lamp Qty: (2) 2` LED Lamps California Title 24 Compliant
Weight: 14 lbs Switch Leg for Powering Light On/Off
Voltage: Multi- 120V @ 60Hz, 220V @ 50Hz, 240V @ 60Hz, 277V @ 60Hz
Low Voltage (Optional): 12-24V DC
Total Watts: 30W
Single-lamp Watts: 15W
Total Lumens: 2,700 lms
Single-lamp Lumens: 1,350 lms
Luminous Efficacy: 90 Lm/W
LED Lamp Life Expectancy: 50,000+ Hours
Color Temperature: 5300K
Color Rendering Index: 75
Power Efficiency: -
Power Factor: -
Beam Angle: 150°
Lighting Configuration: Flood
Battery Type: High Temperature Rated Nickel Cadmium
Battery Runtime: 90 Minutes
Emergency Mode Lumens: 2,700 lms - Dual @ Full Output
Amps: 0.25A @ 120V, 0.125A @ 240V, 0.108A @ 277V
Operating Temp Range: -30°C to +85°C
Temperature Rating: T4A
Minimum Operating Temp: -30° C
Maximum Case Temp: 90° C
Materials: Powder Coated Aluminum, Acrylic Lens
Mounting: Back Mount Swivel Bracket
Wiring Hub: 1/2" or 3/4" Threaded
' Product Overview '

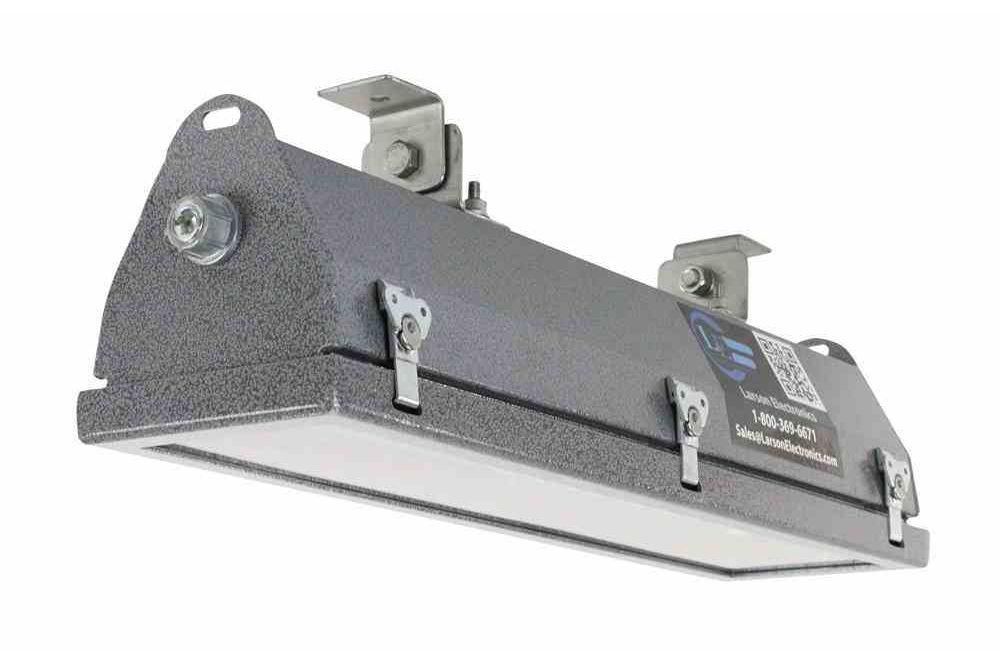

  The Larson Electronics HAL-EMG-24-2L-LED-2XL Hazardous Area LED Light Fixture with Emergency Failsafe Battery Backup provides powerful illumination in combustible facilities. Equipped with a T4A temperature rating, the LED light is ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. In emergency mode, the 30-watt unit operates both LED lamps for 90 minutes @ full output. The HAL-EMG-24-2L-LED-2XL fixture is a 2 foot long, 2 lamp Class I, Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds longer lamp life and efficiency with high output LEDs. This 30-watt fixture is T4A temperature rated and comes standard with our high powered 15-watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with four zinc coated steel draw latches. The fixture is constructed of copper free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277V AC as well as 12-24V DC and is approved for use marine environments. The luminary is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
This light works, mounts and is wired like our HAL-24-2L-LED explosion proof light fixtures. The main difference is that we added a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run both LED lamps at the standard suggested 90 minutes after power is lost at full light output. The light recharges the battery once electrical power is restored. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode. We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4A temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8 bulbs. The 15 watt LED lamps produce more illumination than standard T8 bulbs, but draw only 3/4 of the current. The current generation of Larson Electronics LED T-series style bulbs produce 15% more light than standard T8 bulbs. This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277 Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (-LV suffix). Our HAL-EMG-24-2L-LED LED light fixture is NRTL Listed to U.S. and Canada. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top of the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the cap screws that hold the bracket to the mounting peg. This fixture allows 45 degrees of pivot from the 90 degree point.
