0-10V Dimmable C1D2 Emergency LED Pivoting Light - 4 Foot 2 Lamp - Offshore LED Rig Light - Meets USCG Specs
0-10V Dimmable C1D2 Emergency LED Pivoting Light - 4 Foot 2 Lamp - Offshore LED Rig Light - Meets USCG Specs
Precio habitual
$4,094.00 CAD
Precio habitual
Precio de oferta
$4,094.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| HAL-EMG-48-2L-LED-BMSW-D-V2 Hazardous Location LED Fixture | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Class I Division 2, Groups A, B, C & D |
| Lamp Technology: LED | NRTL Certified to UL 844 |
| Lamp Qty: (2) 4' | NRTL Certified to UL 1598A Marine Type |
| Dimensions: 51.1"-L x 7.09"-W x 8.65"-H | T4 Temperature Rating |
| Weight: 22.2 Lbs | Meets USCG Specs |
| Voltage: 120V or 277V | California Title 24 Compliant |
| Total Watts:Â 56W | 0-10V Dimmable |
| Single-lamp Watts:Â 28W | Â |
| Total Lumens:Â 7,000 lms | Â |
| Single-lamp Lumens:Â 3,500 lms | Â |
| Luminous Efficacy: 120 Lumens per Watt | Â |
| Lamp Life: 50,000+ Hours | Â |
| Color Temp: 5600K, 4500K or 3000K | Â |
| Color Rendering Index: >80 | Â |
| Lamp Type: - | Â |
| Lamp Base: - | Â |
| Replacement Lamp: - | Â |
| Beam Angle: 150° |  |
| Lighting Configuration: Flood | |
| Power Efficiency: 90% | |
| Power Factor: >0.95 | |
| Emergency Runtime: 90 Minutes | |
| Emergency Battery Charging Duration: 24 Hours | |
| Emergency Lumens: (1) Lamp - Output Depends on Dim Setting | |
| Amps: - | |
| Ambient Operating Temp Range: -40°C to +65°C | |
| Operating Temp Rating: T4 | |
| Materials: Sheet Aluminum Housing, Acrylic Lens | |
| Mounting: Back Mount Swivel Bracket | |
| Wiring Hub: 1/2" or 3/4" Threaded |
Made in the USA

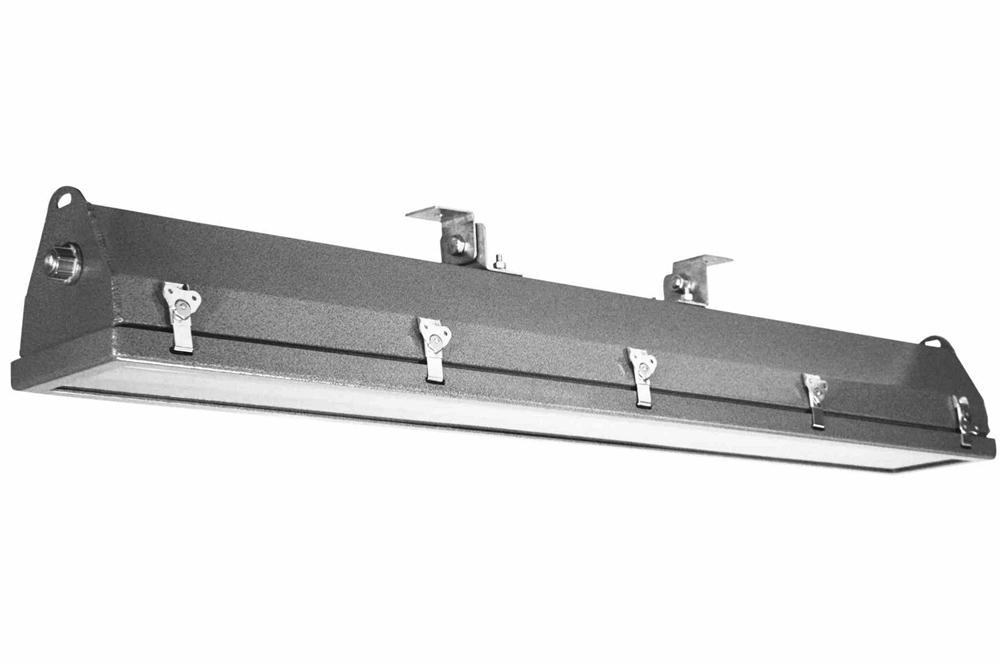

The Larson Electronics HAL-EMG-48-2L-LED-BMSW-D-V2 Hazardous Area 0-10V Dimmable LED Emergency Light Fixture is NRTL Listed for United States and Canada Class I Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. This emergency hazardous location LED light carries a United States Coast Guard approval, making it recommended for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers.
This four foot long, two lamp, 0-10V dimmable emergency LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HAL-EMG-48-2L-LED-BMSW-D-V2 fixture is a 4 foot long, 2 lamp, Class I Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 28 watt LED lamps. The emergency lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches.
We now offer our second generation dimmable LED tube lamps with this fixture which have increased this hazardous location light`s performance. This two lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000+ hours of service life, which is over twice as long as standard T8 bulbs.
Dimming: This LED light fixture features 0-10V dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications.
Emergency Operation: The LED light features an emergency backup battery that will run one lamp for 90 minutes following power outage or any loss of power. Emergency lamp output depends on the dim setting. The emergency backup battery takes 24 hours to recharge.
This fixture carries a T4A temperature rating and is NRTL Certified to U.L. 595 and UL 1598A Marine Type approved for use marine environments. The fixture is constructed of copper free sheet aluminum and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The HAL-48-2L-LED-G2 is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
|
||||||||||||||||||||||||||||||||||||||
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and overall complexity of installation. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. This second generation lamp is offered in 5600K cool white, 4500K natural white, and 3000K warm white. Our standard unit ships with 5600K unless different color temperature is specified.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3,500 lumens at 125 lumens per watt, for a combined 7,000 total lumen light output. Standard 0-10V dimming switches (mounted outside the hazardous location) are compatible with these hazardous location fixtures. Larson Electronics offers an for mounting within the hazardous location.
Voltage: The HAL-EMG-48-2L-LED-BMSW-D-V2 operates on 120V or 277V.
|
