60 Watt Hazardous Location Integrated LED Light Fixture - Emergnecy Battery Backup - Failsafe Light
60 Watt Hazardous Location Integrated LED Light Fixture - Emergnecy Battery Backup - Failsafe Light
| HAL-EMG-48-60W-ITG-LED HAZLOC Failsafe Lighting | Ratings/Approvals |
| Listing: United States - Canada | Class I, Division 2, Groups A, B, C, D |
| Dimensions: W-5.76" x L-51" x H-3.92" | Class I, Zone 2, Groups IIC, IIB, IIA |
| Weight: 32.9 Lbs | Class II, Divisions 1 & 2, Groups E, F & G |
| Voltage: Universal 120-277V AC 50/60 Hz | UL 844 for Hazardous Locations |
| Total Watts: 60 watts | ANSI/UL 1598(A) Marine Type (Saltwater) |
| Total Lumens: 7,064 | UL 8750 for LED Lighting |
| LED Lamp Life Expectancy: 60,000+ Hours | UL 924 for Emergency Lighting |
| Luminous Efficacy: 117 Lumens per Watt | CSA C22.2 No. 137-M1981 |
| Color Temp: 5000K | IEC Certified for Zone 2 & Zone 21 |
| Color Rendering Index: >70 | AEx nAII, Ex nAII |
| Beam Angle: 160° | Ex nA IIC T6 to T3, Gc |
| Battery AC Input Voltage: 120/277V AC 60Hz | Ex tb IIC T95°C Db |
| Illumination Time: 90+ Minutes | Tamb -50°C = Tz = +65°C |
| Battery Lifespan: 7 to 10 Years | ATEX Certified |
| Battery Recharge Time: 24 Hours | ABS Approved |
| Ambient Operating Temp Range:-30° C to +65°C | IP66 Waterproof |
| Operating Temp Rating: T6 Rated | NEMA 3, 4X |
| Minimum Operating Temp: -30°C | Approved for Confined Spares |
| Maximum Case Temp: +65°C | No Glass - Group G - Food Suitable |
| Housing Material: Copper Free Extruded Aluminum | Â |
| Lens Material: Impact Resistant Polycarbonate | |
| Gasket Material: Temperature Rated Silicone | |
| Mounting: Slot, Swivel, Wall or Ceiling Brackets, Beam Clamps | |
| Wiring Hub: 1/2" NPT | |
| Â |

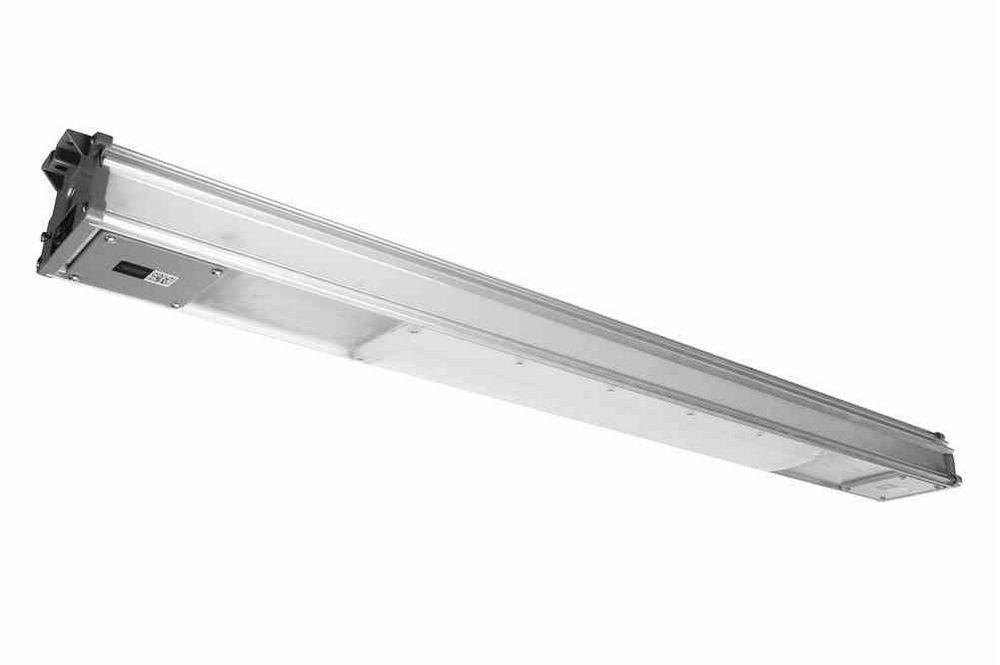

| The Larson Electronics HAL-EMG-48-60W-ITG-LED 60 Watt Explosion Proof Linear LED Emergency Light with 90 minute battery backup has a T6 temperature rating and is approved Class 1 Division 2 and Class 2 Division 1 & 2. This durable and long-lasting explosion proof LED light is designed for installation in locations where flammable vapors and gases and combustible dusts and fibers exist or have the potential to exist as well as NEMA 3, 4X, IP66 locations where wind, water, snow, or high ambients can be expected The Larson Electronics HAL-EMG-48-60W-ITG-LED 60 Watt Explosion Proof Linear LED Emergency Light generates almost double the lumens of a standard fluorescent fixture and provides crisp white light and high chromaticity for excellent color rendering but uses significantly less energy and produces less heat than fluorescent lighting. Measuring only 3.92†tall and 4.25’ long and weighing less than 40 lbs, this extremely low profile 60 watt LED fixture delivers 7,064 lumens while drawing only 0.50 amps on 120 volts (though it is compatible with all 120-277 VAC 50/60Hz). The HAL-EMG-48-60W-ITG-LED produces both more light output and superior quality light than traditional fluorescent lighting fixtures while at the same time offering substantially reduced energy use and increased reliability, longevity, and safety. Unlike the glass tube design of traditional fluorescent lamps, these LED explosion proof linear lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state LED design of the Larson Electronics HAL-EMG-48-60W-ITG-LED provides 212,000 hours of maintenance free operation before reducing to 70% of the original output, making it an altogether more reliable, stable, durable, cost-effective, and energy efficient light source over traditional fluorescent lighting. | ||||
The 60 watt LED is protected by a single impact and vibration resistant polycarbonate lens with a diffuse finish to reduce glare, and the LED assembly is housed within a low profile one piece copper-free extruded aluminum body designed to withstand hazardous and harsh conditions. A one wiring access plate makes for easy access to driver lead, and high temperature rated silicone gasketing between the lens and the housing provides NEMA 4X and IP66 sealing. Both the housing and the external screws are constructed to resist moisture, corrosion, ingress of dust and particles as well as being vibration and weather resistant. In addition to the rugged lens and body, the HAL-EMG-48-60W-ITG-LED comes equipped with supplemental 20kA/10kA surge protection and a 90 minute internal emergency battery backup.
The HAL-EMG-48-60W-ITG-LED is designed to accommodate a variety of mounting options include swivel brackets, wall and ceiling brackets, or beam clamps. The slot back design of the lamp allows multiple mounting access points across the length of the lamp. These slots can be used with 5/16†or 8mm bolts and nuts, three housing slots, one center back, and two at 45°. The end caps of the fixture each have two mounting feet built in, plus a safety strap attachment point. Additionally, each end cap features a 3/4†NPT hub, and the fixture comes furnished with one 3/4†close-up plug and two 3/4†to 1/2†reducers which provide 1/2†dead-end to 3/4†feed through flexibility.
The Larson Electronics HAL-EMG-48-60W-ITG-LED 60 Watt Explosion Proof Linear LED Emergency Light is a tough, durable, and low to no maintenance alternative to traditional fluorescent lighting. Its versatile power and mounting options, extreme longevity, low energy consumption, high light output, ultra low profile, and rugged lens and body design make it ideal for a variety of applications including, but not limited to: both land based oil rigs and offshore oil platforms, chemical and petrochemical processing facilities, sewage treatment plants, garages, storage facilities, tunnels, and grain/food facilities. In addition, the HAL-EMG-48-60W-ITG-LED carries ABS type approval for marine applications including use on decks, vessels, platforms, barges, ships, boats, and is suitable for dock and marina operations.
Suggested Applications:
Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste treatment plants, gas processing plants.
|
||||
