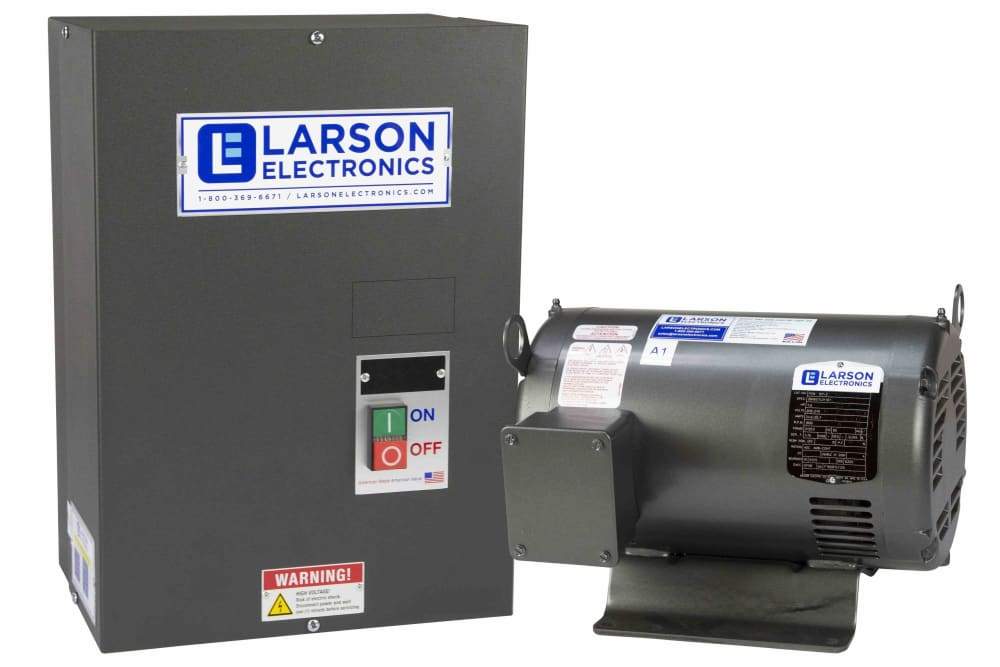

C1D2 Hazloc Rotary Phase Converter,6HP Hard Load, 240V 1PH to 3PH, 15.7A Output, 15HP IdlerN3R

LARSON ELECTRONICSSKU: PL3-HAL-MTPC-HD-RB-240V-15HP-6HP-N3R
filler

Precio:
Precio de venta$12,258.00
 Más opciones de pago

Descripción

Specifications / Additional Information
HAL-MTPC-HD-RB-240V-15HP-6HP-N3R Rotary Phase Converter Ratings/Approvals
Unit Type: Rotary Phase Converter NRTL Certified to United States & Canada Standards
Phase Conversion: Single Phase to Three Phase Class I, Division 2, Groups A, B, C, D
Kilowatt Rating: 11.2 KW Class II, Division 2, Groups F & G
Kilo Volt-Amp Rating: 15 KVA T2B Temperature Rating
Idle Motor Horse Power: 15 HP Indoor/Outdoor Use (NEMA 3R)
Single Phase Voltage Input: 240V Built-in Motor Starter
Minimum Fuse/Circuit Breaker Size: 30 Start/Stop Push Button Switch
Maximum Fuse/Circuit Breaker Size: 80 Accurate Voltage Balancing
Minimum Wire (Input) to Converter: 6 AWG Power Indicator Light
Minimum Electrical Service Required: 20 KVA Made in the USA
Idle Amps: -
Service Load Type: Hard motor loads
Three Phase Voltage Output: 240
Maximum Single Motor Load HP: 6 HP
Recommended Combined HP: 6 HP
Optimal Output Amps: 15.7A
Maximum Output Amps: 37A
Maximum Resistive Amps: 21A
Voltage Balance: 2-5%
Minimum Wire to Device Load: 8 AWG
Form Factor: Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Color: Natural Gray
Weight: - lbs
Dimensions: -
Shipping Weight: - lbs
Shipping Dimensions: -
' Product Overview '
Made in the USA The Larson Electronics HAL-MTPC-HD-RB-240V-15HP-6HP-N3R 15 horsepower hazardous location rotary phase converter is designed to convert single phase power to three phase power for Hard motor loads. This phase converter accepts a single-phase 240V input and provides a three-phase 240V output. Operators may use this rotary phase converter to power equipment and machines with Hard motor loads up to 6 horsepower and 15.7 amps that require three phase power in hazardous (classified) locations where only single phase power is available and flammable gases, vapors, or dusts stand the potential to exist. Applications: The HAL-MTPC-HD-RB-240V-15HP-6HP-N3R is ideal for applications that utilize Hard motor loads within Class I, Division 2 and Class II, Division 2 hazardous locations. This includes CNC laser table, CNC lathe, CNC mill, CNC plasma table, CNC router, CNC turning machine, CNC waterjet, cooling fan, exhaust fan, gearhead lathe, industrial fan, laser cutter, laser table, plasma cutter, plasma table, plastic grinder, printing press and any other application that induces a Hard motor load up to a recommended 6 horsepower. The HAL-MTPC-HD-RB-240V-15HP-6HP-N3R rotary phase converter is suitable for converting single phase 240V on-site power to three phase 240V power for equipment. This 15 HP idler motor phase converter connects to existing 240V single phase. After conversion, the phase converter provides three-phase 240V on the output side at 15.7 continual amps with a maximum of 37 inrush amps. All MTPC series phase converters provide +/- 2-5% voltage balance on the output side, depending on the single phase input power, for maximum efficiency and reduced stress on the motor. This rotary phase converter features a built-in motor starter with a start/stop push button switch for seamless activation. The power distribution blocks are oversized for easy installation in the preferred location. The HAL-MTPC-HD-RB-240V-15HP-6HP-N3R control panel is housed in a NEMA 3R / NEMA 4X enclosure, making it suitable for indoor and outdoor environments. This level of protection allows the rotary phase converter to withstand the ingress of solid objects, such as falling dirt. All of Larson Electronics LLC's phase converter control panels are NRTL certified to UL 508A. The HAL-MTPC series of specifically designed for C1D2 and C2D2 applications within classied (hazardous) areas. The MTPC series of rotary phase converters are designed to operate based on overall load size. This includes operating multiple devices from one rotary phase converter, providing the combined horsepower of all devices being operated simutaniously does not exceed the horsepower rating for the load type. This includes fractional motors up to 6 HP motors, and any combination of motor sizes in between. Instant reversal motors are no problem for the MTPC series phase converters. Each phase converter comes ready to install. Rotary Sizing: The HAL-MTPC-HD-RB-240V-15HP-6HP-N3R is sized for heavy/hard motor loads up to 6 horsepower. When correctly sized, Larson Electronics phase converters will provide years of trouble free service for your equipment. Larson Electronics offers single phase to three phase static and rotary phase converters for easy, medium, hard, and very hard motor loads. The motor load is dependant on the devices intended to operate on the phase converter. For additional load types or for additional sizes, please see the below links or call us today.
