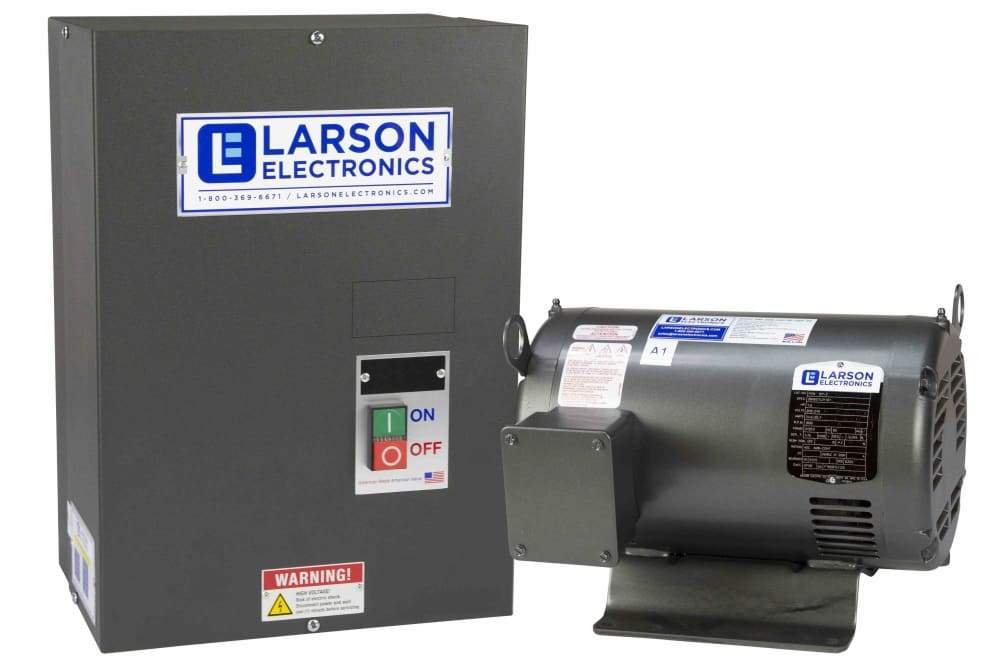

C1D2 Hazloc Rotary Phase Converter,75HP Medium Load, 220V 1PH to 3PH, 214A Output, 125HP Idler

LARSON ELECTRONICSSKU: PL3-HAL-MTPC-MD-RB-220V-125HP-75HP-N3R
filler

Precio:
Precio de venta$59,180.00

Descripción

Specifications / Additional Information
HAL-MTPC-MD-RB-220V-125HP-75HP-N3R Rotary Phase Converter Ratings/Approvals
Unit Type: Rotary Phase Converter NRTL Certified to United States & Canada Standards
Phase Conversion: Single Phase to Three Phase Class I, Division 2, Groups A, B, C, D
Kilowatt Rating: 94 KW Class II, Division 2, Groups F & G
Kilo Volt-Amp Rating: 125 KVA T2B Temperature Rating
Idle Motor Horse Power: 125 HP Indoor/Outdoor Use (NEMA 3R)
Single Phase Voltage Input: 220V Built-in Motor Starter
Minimum Fuse/Circuit Breaker Size: 200 Start/Stop Push Button Switch
Maximum Fuse/Circuit Breaker Size: 500 Accurate Voltage Balancing
Minimum Wire (Input) to Converter: - Power Indicator Light
Minimum Electrical Service Required: 167 KVA Made in the USA
Idle Amps: -
Service Load Type: Medium motor loads
Three Phase Voltage Output: 220
Maximum Single Motor Load HP: 75 HP
Recommended Combined HP: 75 HP
Optimal Output Amps: 214A
Maximum Output Amps: 297A
Maximum Resistive Amps: 175A
Voltage Balance: 2-5%
Minimum Wire to Device Load: -
Form Factor: Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Color: Natural Gray
Weight: - lbs
Dimensions: -
Shipping Weight: - lbs
Shipping Dimensions: -
' Product Overview '
Made in the USA The Larson Electronics HAL-MTPC-MD-RB-220V-125HP-75HP-N3R 125 horsepower hazardous location rotary phase converter is designed to convert single phase power to three phase power for Medium motor loads. This phase converter accepts a single-phase 220V input and provides a three-phase 220V output. Operators may use this rotary phase converter to power equipment and machines with Medium motor loads up to 75 horsepower and 214 amps that require three phase power in hazardous (classified) locations where only single phase power is available and flammable gases, vapors, or dusts stand the potential to exist. Applications: The HAL-MTPC-MD-RB-220V-125HP-75HP-N3R is ideal for applications that utilize Medium motor loads within Class I, Division 2 and Class II, Division 2 hazardous locations. This includes band saw, battery charger, bench grinder, broom maker, car wash water pump, coffee roaster, commercial blender, commercial mixer and mixing machines, conveyer belt, crane, dough mixer, dry cleaning equipment, electrical discharge machine (EDM), elevator, feed mixer, fuel pump, gasoline pump, grain bucket elevator, grain conveyer, grain dryer, grain mixer, hoist, hydraulic metal press, hydraulic metal sheer, Industrial grinder, injection molding, ironworker, irrigation center pivot systems, irrigation pump, jet fuel pump, lawn pump, machining center, manual lathe, meat grinder, meat saw, paint booth, paper cutter, paper shredder, pipe machine, pizza mixer, pizza oven, plasma cutter, plastic pump, printer, radio transmitter, refrigerator, ribbon blender, rock crusher, rotisserie, sewage pump, sewing machine, shaper, spring coiler, submersible pump, swimming pool pump, turning machine, vacuum pump, wastewater pump, water pump, welder, wheel balancer, wide belt sander, x-ray machine and any other application that induces a Medium motor load up to a recommended 75 horsepower. The HAL-MTPC-MD-RB-220V-125HP-75HP-N3R rotary phase converter is suitable for converting single phase 220V on-site power to three phase 220V power for equipment. This 125 HP idler motor phase converter connects to existing 220V single phase. After conversion, the phase converter provides three-phase 220V on the output side at 214 continual amps with a maximum of 297 inrush amps. All MTPC series phase converters provide +/- 2-5% voltage balance on the output side, depending on the single phase input power, for maximum efficiency and reduced stress on the motor. This rotary phase converter features a built-in motor starter with a start/stop push button switch for seamless activation. The power distribution blocks are oversized for easy installation in the preferred location. The HAL-MTPC-MD-RB-220V-125HP-75HP-N3R control panel is housed in a NEMA 3R / NEMA 4X enclosure, making it suitable for indoor and outdoor environments. This level of protection allows the rotary phase converter to withstand the ingress of solid objects, such as falling dirt. All of Larson Electronics LLC's phase converter control panels are NRTL certified to UL 508A. The HAL-MTPC series of specifically designed for C1D2 and C2D2 applications within classied (hazardous) areas. The MTPC series of rotary phase converters are designed to operate based on overall load size. This includes operating multiple devices from one rotary phase converter, providing the combined horsepower of all devices being operated simutaniously does not exceed the horsepower rating for the load type. This includes fractional motors up to 75 HP motors, and any combination of motor sizes in between. Instant reversal motors are no problem for the MTPC series phase converters. Each phase converter comes ready to install. Rotary Sizing: The HAL-MTPC-MD-RB-220V-125HP-75HP-N3R is sized for heavy/hard motor loads up to 75 horsepower. When correctly sized, Larson Electronics phase converters will provide years of trouble free service for your equipment. Larson Electronics offers single phase to three phase static and rotary phase converters for easy, medium, hard, and very hard motor loads. The motor load is dependant on the devices intended to operate on the phase converter. For additional load types or for additional sizes, please see the below links or call us today.
