Hazardous Location Lighting - 150 Watts - 30 LEDS - Class 1, Division 2 - Aluminum Pedestal Mount

LARSON ELECTRONICSSKU: PL3-HAL-PM-1X150LED-100
filler

Precio:
Precio de venta$5,082.00

Descripción

Specifications / Additional Information
HAL-PM-1X150LED-100 U.L Ratings
Lamp Type: LED U.L Rated for Wet Area Use
Lumens: 14,790 Total Class 1 Division 2 Groups C and D
Total Watts: 150 U.L Approved Marine Environments
Dimension: 28"-H, 16"-D 18"-W. T1 Temp Rating
Voltage: 100-277 Volts AC, 50/60Hz
Lighting Configuration: Flood Pattern
Mounting: Pedestal Stand
Weight: 35lbs
U.L. Listing: Wet Area / Marine Environment Approved
Total Coverage: 18,000 Sq. Feet
Wiring: 100 Feet SOOW Abrasive Oil Resistant Cord.
Cord Cap: 5-15P 15A 125V, 5-20P 20A 125V, 6-15P 15A 250V, 6-20P 20A 250V
' Product Overview '

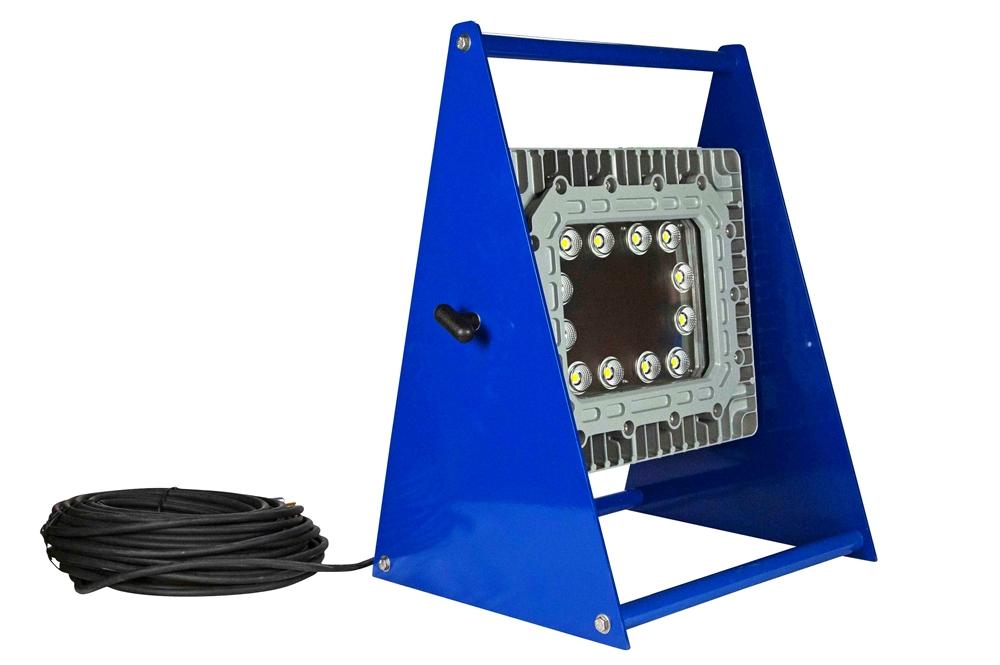

Made in the USA The high output HAL-PM-1X150LED-100 LED hazardous area light from Larson Electronics produces 14,790 lumens of light and illuminated an area 18,000 square feet in size. Weather proof and marine use suitable, this LED equipped hazardous area fixture is mounted within an aluminum frame that provides simple setup and easy carry transport. This LED light is ideal for hazardous locations where workers desire a light they can simply set down and plug in without any special mounting or placement needed. The HAL-PM-1X150LED-100 hazardous area light from Larson Electronics produces 14,790 lumens of high intensity light while drawing only 150 watts @12.5 amps from a 12 volt electrical system. Thirty CREE XLamp XPG® five watt LEDs producing 493 lumens each are arranged in rows and paired with high purity optics to produce a 60 degree floodlight beam that is ideal for providing light over a large area, making these units ideal for use as portable workspace and area lights.
The lamp housing on this unit is weatherproof and constructed of die cast aluminum featuring a hinged, removable front-access door with two captive closure screws for easy servicing and heat/impact-resistant tempered flat door glass. The mounting frame is constructed of aluminum and designed to allow users to simply place the unit on any flat surface for stable deployment. This unit is lightweight and the aluminum frame allows operators to simply carry the unit from one location to another as needed. Included with this light is 100 feet of SOOW cord ending in a standard 1523 explosion proof plug for safe and secure connection. This lamp is suitable for use in areas where flammable petrochemical vapors are sometimes. This light is highly durable, produces high light output in a wide flood pattern, and operates effectively at temperatures to -20 degrees F. This hazardous area light is U.L. rated Class 1 Division 2, Groups A B, C, D and UL1598 listed for Outdoor Salt Water Marine use. This unit operates with 120 VAC and all electronic components are protected within the weatherproof IP 65 rated housing.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof flood light is equipped with 100 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, 6-15 15 amp straight blade plug for use with 220-240V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur
Metal Halide LED
Wattage 400 watts 150 watts
Amp Draw @ 120V AC 3.83 amps 1.25 amps
Amp Draw @ 220V AC 2.09 amps 0.68 amps
Amp Draw @ 240V AC 1.92 amps 0.63 amps
Amp Draw @ 277V AC 1.66 amps 0.54 amps
Amp Draw @ 12V DC 38.33 amps 12.5 amps
Amp Draw @ 24V DC 19.12 amps 6.25 amps
Lamp Life Expectancy 20,000 hours 50,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $78.84
Each LED light fixture has the potential to save $150.00+ per year in electricty alone, not including maintainence costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
These units can withstand temperatures of -40 degrees Celsius to 80 degrees Celsius, are IP65 rated waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from cast aluminum and the lenses are tempered glass. All hardware on this unit is corrosion resistant and the die-cast aluminum lamp housing exterior has an electro-coat dark bronze paint finish. The CREE XLamp XPG® LEDs help these units achieve 15.6Grms rated resistance to vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. We recommend these LED lights for use in applications where a lot of dust, dirt, dampness and abusive working conditions are encountered.
