Rear Access Paint Spray Booth Lay-In Panel Light Fixture - 4ft, 4 Lamp - Class 1 Div. 2 - Explosion
Rear Access Paint Spray Booth Lay-In Panel Light Fixture - 4ft, 4 Lamp - Class 1 Div. 2 - Explosion
| HAL-RA-48-4L-T5HO Paint Booth Fixture | Ratings |
| UL Listing: United States - Canada | Class 1 Division 2, Groups A, B, C, D |
| Fixture Dimensions: 50.25"-L x 15.5"-H x 3.5"-D | Class 2 Division 2 Groups F,G |
| Hole Dimensions: 50-7/8"-L x 20-3/4"-H | T3C (160 degree C) |
| Total Watts: 216 watts | ETL listed U.S. and Canada |
| Voltage: Multi- 120-277 Volts 50/60 Hz | |
| Total Lumens: STD-T5HO Bulbs 20,000 | |
| Lamp Life Expectancy: STD-T5HO Bulbs 20,000 Hours | |
| Efficiency: STD-T5HO- Bulbs 92 Lumens per Watt | |
| Operating Temp Range: T3C Rated | |
| Beam Angle: N/A | |
| Color Temp: 5000- F54-T5/850/HO Bulbs | |
| Mounting: Recessed Panel Mounting | |
| Wiring Hub: 1/2 inch threaded NPT | |
|  |  |
Made in the USA

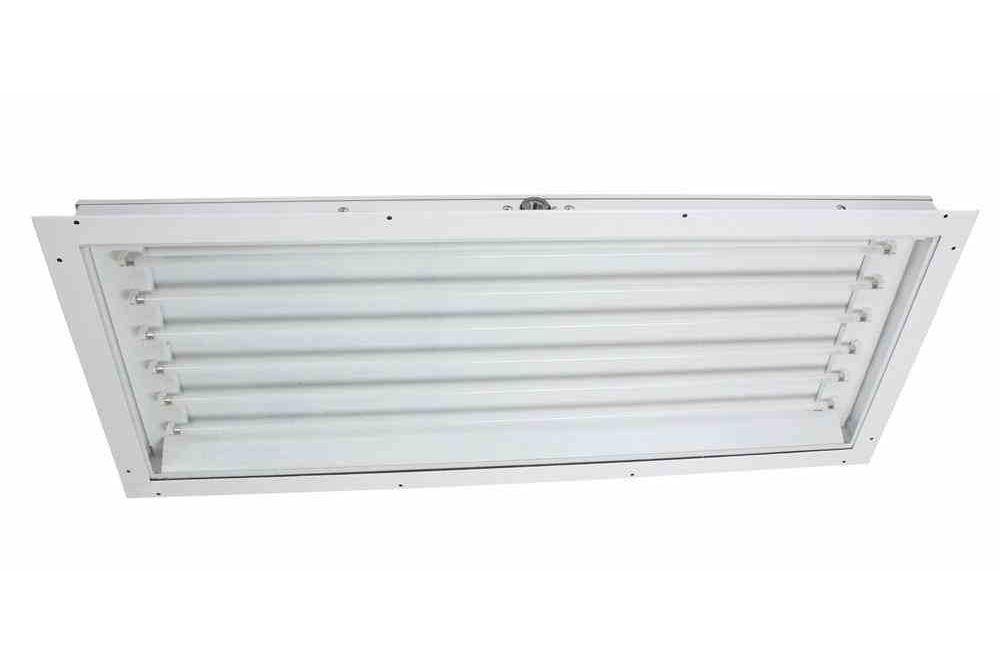

The Larson Electronics HAL-RA-48-4L-T5HO Hazardous Area Fluorescent Rear Access Lay-In Light Fixture is designed to provide a thin fixture profile that allows the maximum use of available space. This fluorescent fixture is U.S./Canada approved Class 1 Division 2, Groups A, B, C and D - Class 2 Division 2, Groups F and G and designed for paint spray booths and locations where flammable chemical/petrochemical vapors are present. THIS FIXTURE IS NOT APPROPRIATE FOR SURFACE MOUNT APPLICATIONS.
***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***
The HAL-RA-48-4L-T5HO Explosion Proof fixture is a 4 foot long, 4 lamp, Class 1 Division 2 hazardous area fluorescent light and ideal for use in paint spray booths and hazardous locations where space for lighting fixtures is limited. This fixture is T3C temperature rated, comes standard with F54-T5/850/HO bulbs. The rear access paint spray booth fixture features a hinged door on the back side of the fixture, allowing servicing of the lamps from outside of the paint booth. No access to the fixture is done from within the booth.
|
||||
Mounting: This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accomodating the fixture housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this fixture`s glass frame will extend 3/8" into the spray booth.
Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present.
|
||||
|  |
