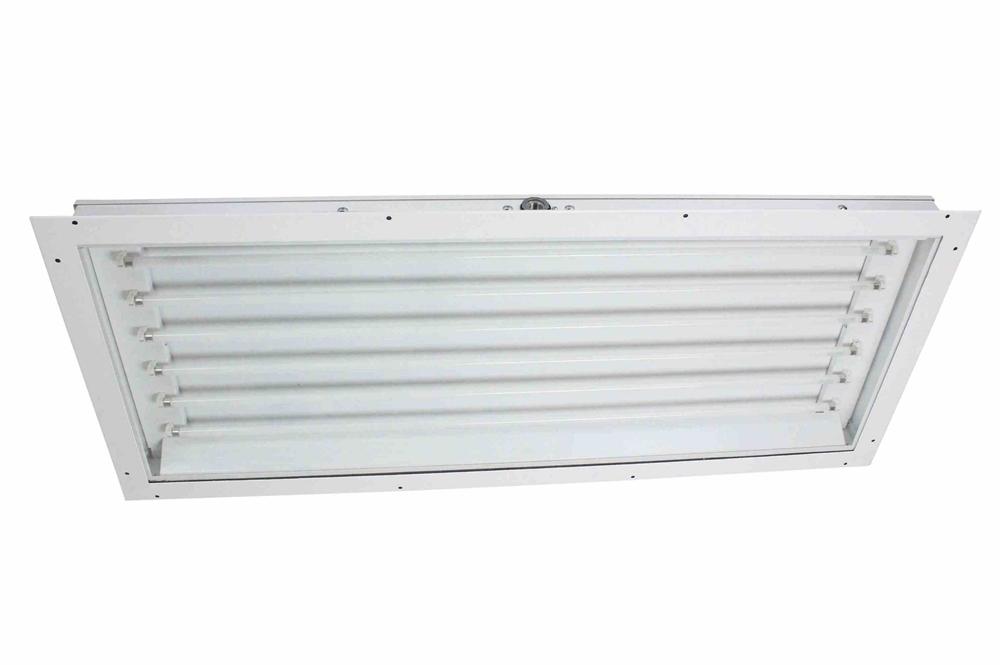

Rear Access Paint Spray Booth Lay-In Panel Light Fixture - 4ft, 6 Lamp - Class 1 Div. 2 - LED

LARSON ELECTRONICSSKU: PL3-HAL-RA-48-6L-LED
filler

Precio:
Precio de venta$3,908.00

Descripción

Specifications / Additional Information
HAL-RA-48-6L-LED Paint Booth Fixture Ratings
UL Listing: United States - Canada Listed for United States and Canada
Fixture Dimensions: 47" - L x 1.03" OD UL-1993
Hole Dimensions: 50-7/8"-L x 20-3/4"-H UL-1993 CLS
Total Watts: 168 watts CAN/CSA C22.2 No. 1993
Voltage: 100-277V AC, 50/60 Hz , 11-25V AC/DC Internal Driver
Total Lumens: 21,000 Single Ended Power
Lamp Life Expectancy:  50,000+ Hours LEL Listed
Efficiency: 125 Lumens per Watt
Lens: Clear, Heavy, Heavy Frosted
Beam Angle: 150 degrees
Color Temp: 3000K, 4500K, 5600K
Mounting: Recessed Panel Mounting
Wiring Hub: 1/2 inch threaded NPT

' Product Overview '
Made in the USA The Larson Electronics HAL-RA-48-6L-T5HO Hazardous Area Fluorescent Rear Access Lay-In Light Fixture is designed to provide a thin fixture profile that allows the maximum use of available space. This fluorescent fixture is U.S./Canada approved Class 1 Division 2, Groups A, B, C and D - Class 2 Division 2, Groups F and G and designed for paint spray booths and locations where flammable chemical/petrochemical vapors are present. THIS FIXTURE IS NOT APPROPRIATE FOR SURFACE MOUNT APPLICATIONS. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HAL-RA-48-6L-T5HO Explosion Proof fixture is a 4 foot long, 6 lamp, Class 1 Division 2 hazardous area fluorescent light and ideal for use in paint spray booths and hazardous locations where space for lighting fixtures is limited. This fixture is T3C temperature rated, comes standard with F54-T5/850/HO bulbs. The rear access paint spray booth fixture features a hinged door on the back side of the fixture, allowing servicing of the lamps from outside of the paint booth. No access to the fixture is done from within the booth.
Click Photo to Enlarge
The lamp housing is 3-1/2" thick, designed for recessed mounting, constructed of 20 Gauge steel and coated with a baked on white enamel finish. This fixture is multi-voltage capable and is approved for use paint spray booths. The HAL-RA-48-6L provides operators in hazardous locations with a reliable and durable, low profile lighting solution.
Mounting: This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accomodating the fixture housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this ftixture`s glass frame will extend 3/8” into the spray booth. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. 3. Fixture constructed of 20 gauge steel with a baked on white enamel finish. 4. Relamping done via fixed hinge, drop open door. 5. Reflectors coated with high gloss reflective enamel finish. 6. 1/2 NPT conduit hub for wiring. 7. Integrally mounted magentic cutoff switch for connection to relay system allows automatic shutoff of paint system when fixture door is opened. 8. Low profile fixture housing is only 2 1/4" thick, providing the maximum amount of room in space limited spray booth enclosures. F54-T5/850/HO – 54 watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color
