Hazardous Location LED Traffic Light - C1D2 - (4) Relays - (2) LED Lamps - Corrosion Resistant

Hazardous Location LED Traffic Light - C1D2 - (4) Relays - (2) LED Lamps - Corrosion Resistant

$4,306.00 CAD
$4,306.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
HAL-TL-2X10W-C-MOD1 Ratings/Approvals
Lamp Type: LED United States & Canada
Dimensions:- Class I, Division 2 Groups A,B,C,D
Total Watts: 20W NRTL Certified to UL Listed to CSA 22.2-137
Voltage: 120-277V AC 50/60 Hz, 12V DC or 24V DC NRTL Certified to UL 844: Class1 Division 2 Hazardous Location
Lamp Life: 50,000+ Hours NRTL Certified to UL 595: Outside Marine
Lighting Configuration: Strobe light or Steady Burn NRTL Certified to UL 1570/1571: Wet Locations
Light Colors: Red & Green, Red & White, Red & Blue, Red & Amber, Red & Purple, White & Blue, White & Green, White & Amber, White & Purple, Blue & Green, Blue & Amber, Blue & Purple, Amber & Green, Amber & Purple, Green & Purple NEMA 4X
Relays: 4 (Channels 1-4) CSA Approved/ USCG Accepted
Supply Voltage (EXP Relay Box): 24V New York City Department of Buildings Approved
Ambient Temp: -40°C to +60°C Material Meets NRTL Certified to UL 94-V-0 Standards for Flame Retardancy
Temp Rating: T3C
Materials: Polycarbonate
Mount: Predrilled Aluminum Base




' Product Overview '

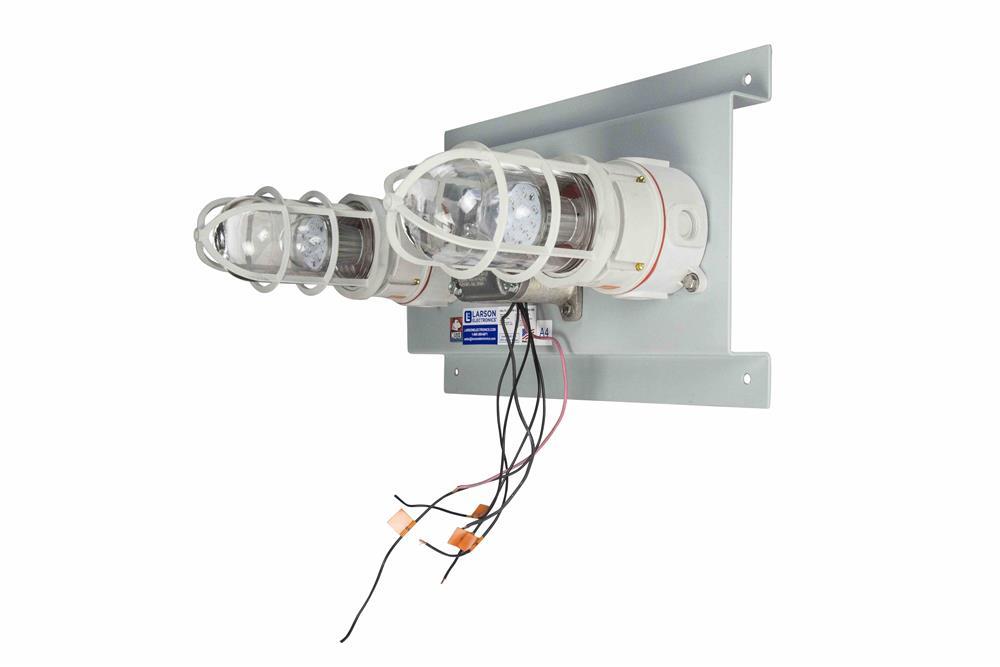

Made in the USA The HAL-TL-2X10W-C-MOD1 Hazardous Location LED Traffic Light from Larson Electronics is chemical resistant and approved for use in wet locations and marine environments. Equipped with two LED lamps and a relay control box, this unit is designed for use in industrial refueling stations and areas where trucks and equipment pick up or deposit hazardous materials. The powerful and durable HAL-TL-2X10W-C-MOD1 explosion proof LED light from Larson Electronics is an ideal indicator lighting solution for industrial refueling stations and areas where trucks and equipment pick up or deposit hazardous materials. This explosion proof fixture is configured for dual color output (one lamp each color) in the following options: red, white, blue, amber, green, or purple. The LED lamps in this traffic light are 10 watts each and offer cool operation and clean bright output that surpasses that of 100 watt incandescent indicator lamps. This hazardous area LED light has a -29C to 40C (-29F to 104F) operating temp range. The HAL-TL-2X10W-C-MOD1 is Class 1, Division 2 approved, carries UL 1570/1571 and UL 595 compliance, and is waterproof and suitable for spray down areas and marine locations. Power is provided by two cords equipped with straight blade plugs to allow independent operation of each lamp, making this unit ideal for fuel depots where stop and go indicators are necessary. This LED light carries UL and CSA certification, USCG acceptance, NTRL Listing for wet locations in any orientation, UL595 approval for marine environments, and NEMA 4X compliance for hose down areas. Explosion Proof Relay Box: This explosion proof unit is equipped with four relays (Channel 1-4), which connect to a customer-provided control station. Two of the relays are designed to control the lights, and the other two relays are for customer-provided equipment. Powered by a 24V supply, the relays are housed inside a durable explosion proof enclosure.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Mounting: Mounting is provided by a heavy gauge aluminum base with four predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations.
