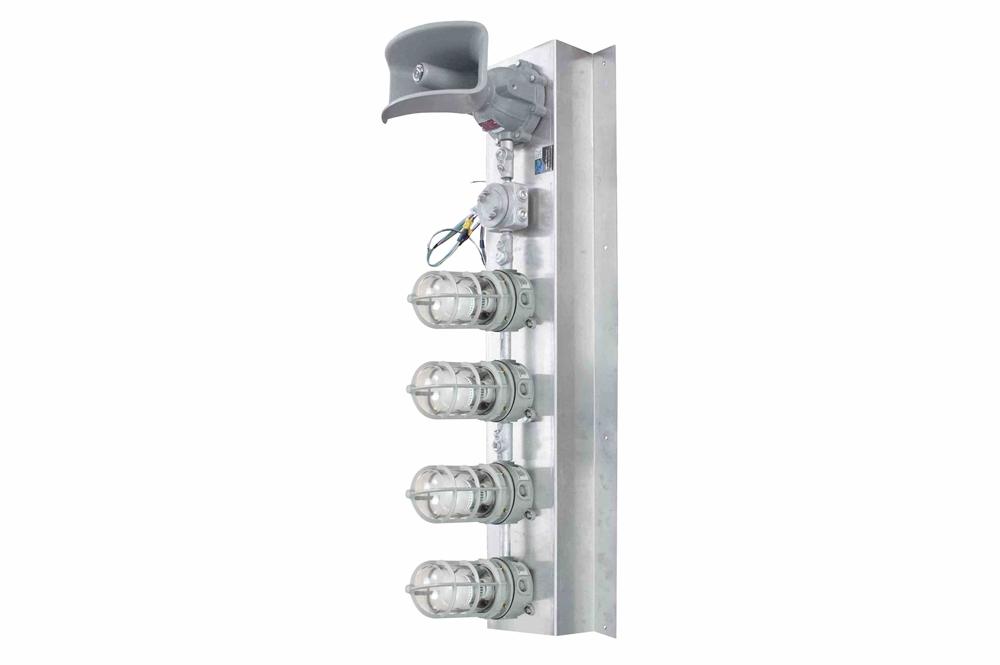

Hazardous Location LED Stack Light w/ Audible Horn - C1D2 - 24V DC - (4) Lamps - NEMA 4X
Hazardous Location LED Stack Light w/ Audible Horn - C1D2 - 24V DC - (4) Lamps - NEMA 4X
| HAL-TL-4X10W-C-PA-24VDC-MOD1 Signal Stack Light w/ Alarm | Ratings/Approval |
| Listing: NRTL Listed for United States, Canada | Class I, Division 2 Groups A,B,C,D |
| Lamp Technology: LED | NEMA 4X |
| Lamp Qty: (4) | Â |
| Dimensions: - | Â |
| Weight: - | Â |
| Voltage: 24V DC | Â |
| Total Watts: 40W | Â |
| Single-lamp Watts: 10W | Â |
| Total Lumens: - | Â |
| Single-lamp Lumens: - | Â |
| Luminous Efficacy: - | Â |
| Lamp Life: 50,000+ Hours | Â |
| LED Colors: (2) Amber, (1) Green, (1) Red | Â |
| Color Rendering Index: - | Â |
| Lamp Type: - | Â |
| Lamp Base: - | Â |
| Replacement Lamp: - | Â |
| Beam Angle: 360° |  |
| Lighting Configuration: (1) Amber/Steady, (1) Amber/Strobe, (1) Green/Steady, (1) Red/Steady | Â |
| Sound Level:Â Up to 110dbAW @ 10ft from Horn | Â |
| Power Efficiency: - | Â |
| Power Factor: - | Â |
| EXP Horn Peak Output: 110 dBA | Â |
| Horn Tone Selection: (4) | Â |
| Amps: - | Â |
| Ambient Operating Temp Range: - | Â |
| Operating Temp Rating: T3 | |
| Housing Material: Non-metallic Polymer (Lamps), Fiberglass (Horn) | |
| Lens Material: Pyrex Globe | |
| Gasket Material: - | |
| Mounting: Ceiling, Wall, Flat Surface via Pre-drilled Aluminum Base | |
| Wiring:Â 3/4" Hub - Flying Leads |
| The HAL-TL-4X10W-C-PA-24VDC-MOD1 Hazardous Location LED Stack Light w/ Audible Horn from Larson Electronics is approved for use in hazardous environments where explosive and flammable gases, vapors, and dusts potentially exist, as well as wet locations and marine environments. This hazardous location unit is equipped with four LED lamps and operates on 24V DC. A pre-drilled aluminum base facilitates surface, ceiling and wall mounting requirements at the site. The HAL-TL-4X10W-C-PA-24VDC-MOD1 is suitable for use in Class I, Division 2 and Class II, Division 2 rated hazardous locations and facilities. Designed to operate on low voltage 24V DC, this unit features four 10-watt LED lamps and an audible horn. The hazardous location device is configured for amber/steady, amber/strobe, green/steady and red/steady output (one lamp each color). The hazardous location audible alarm sounds a unique tone per lamp color, providing operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. The LED lamps are protected by durable Pyrex globes and polymer globe guards for added durability, and offer cool operation and clean, bright output surpassing that of 100 Watt incandescent indicator lamps. The LED lamps are colored LEDs instead of colored globes, providing more light output. The housing is constructed of a non-metallic polymer, while the horn is made of fiberglass with an aluminum mounting base. This unit is T3 temperature rated, weatherproof/dust-proof, and NEMA 4X and marine rated for wet environments. | |
|
|
|
| This stack light is equipped an explosion proof horn. Attached to the far end of the fixture, this audible horn provides operators with 4 different tones that can reach a peak output of 110dBA, powerful enough to be heard over industrial operations. Each lamp is configured to sound a unique tone when illuminated. There is no dimming or volume control for the lights or horns. Wiring: This explosion proof unit features flying leads and a 3/4" conduit access hub for completing power and wiring connections. Power is provided by individual conductors to allow independent operation of each lamp and tone combination. Operators can tap the junction box in order to connect to a power source. Mounting: Mounting is provided by a heavy gauge aluminum base with pre-drilled holes designed to be bolted to walls, ceilings and flat surfaces for permanent and secure attachment. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations. Suggested Applications: This explosion proof signal stack LED light with alarm system is an ideal fixture indicator for PLCs, manufacturing facilities, routing shipping lanes and any hazardous work area where status indicators and audible alarms are necessary. |
