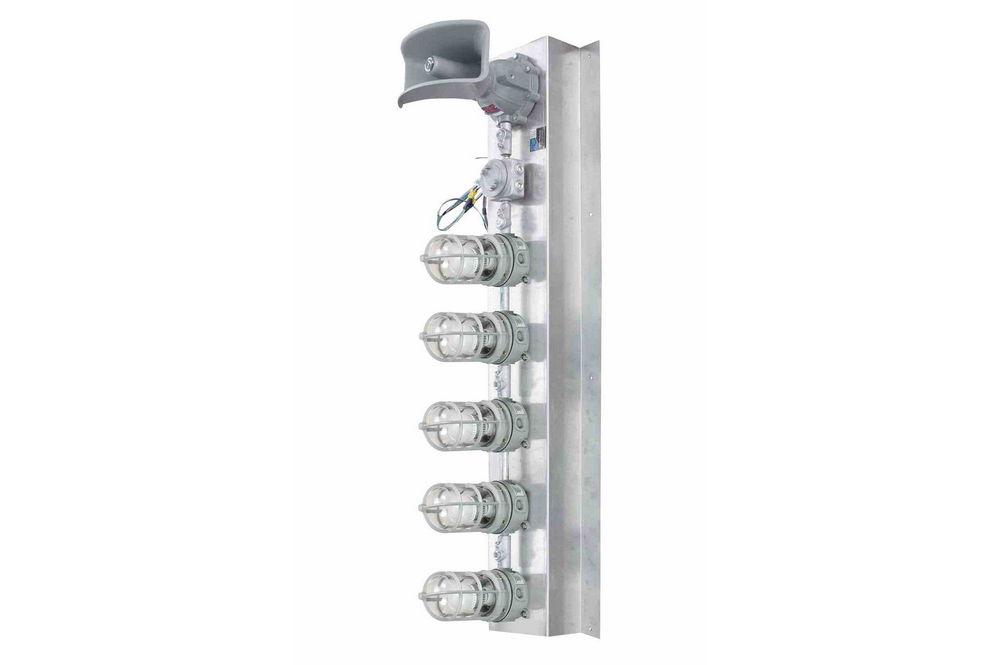

50W Hazardous Location Stack Light - (1) Signal Horn - Red, Blue, Amber, Green, White - C1D2

LARSON ELECTRONICSSKU: PL3-HAL-TL-5X10W-C-PA
filler

Precio:
Precio de venta$9,430.00

Descripción

Specifications / Additional Information
HAL-TL-5X10W-C-PA Signal Stack Light w/ Alarm Ratings/Approval
Lamp Type: LED United States & Canada
Colors: Red, Blue, Amber, Green, White Class I Division 2 Groups A,B,C,D
Watts: 10 Watts Per Lamp - 50W Total NRTL Certified to UL 1598A
Voltage: 120 V AC, 240 V AC or 24 V DC NRTL Certified to UL 844
Lighting Configuration: Steady Burn or Strobe NRTL Certified to CSA 22.2-137
Sound Level: Up to 110dbAW @ 10ft from Horn NEMA 4X
Mounting: Ceiling, Wall, or Flat Surface
Temp Rating: T3 Special Orders - Requirements
Wiring: 3/4" Hub - Flying Leads
Lamp Life: 50,000+ Hours Toll Free: 1-800-369-6671
Mounting: Predrilled Aluminum Base Fax: 1-903-498-3364
E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in the USA The HAL-TL-5X10W-C-PA from Larson Electronics is a Class I Division 2 LED Stack Light with Signal Horn that is approved for use in hazardous environments where explosive and flammable gases, vapors, and dusts stand a potential to exist, as well as wet locations and marine environments. This hazardous location signal stack light is designed for routing traffic in industrial refueling stations and processing status indications in manufacturing facilities. The HAL-TL-5X10W-C-PA hazardous location signal stack LED light with audible horn is a signal/traffic light that offers 50 watts of LED light in red, blue, amber, green, and white. Rated for Class I Division 2 and Class II Division 2 work environments, this light unit is T3 temperature rated, weatherproof/dust-proof, and NEMA 4X and marine rated for wet environments. These indicator lights have 50,000 hours of operational life and the unit is available in 120 V AC, 240 V AC or 24 V DC configurations for standard or low voltage operation. This hazardous location fixture is configured for red, blue, amber, green, and white output (one lamp each color) and offers exceptional lumen output. Even though there are 5 lights, this hazardous location audible alarm setup has four different tones, providing operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. An explosion proof junction box protects the internal wiring and can be tapped in order to connect this stack light to power sources. This hazardous location stack light is durable, can operate in any weather condition, and is rated for Class I Division 2 areas where flammable gas and have potential to exist. The LED lamps in this hazardous location stack light consist of 10 watt colored LED lamps, with a lifespan of 50,000 hours, are protected by durable Pyrex globes and polymer globe guards for added durability, and offer cool operation and clean, bright output surpassing that of 100 Watt incandescent indicator lamps. The LED lamps are colored LEDs instead of colored globes, providing more light output. We offer strobe or steady burn lamps for this fixture. The light housing is constructed of a non-metallic polymer, while the horn is made of fiberglass with an aluminum mounting base. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This stack light is equipped with an explosion proof horn. Attached to the top of the fixture, the audible horn provides operators with 4 different tones that can reach a peak output of 110dBA per horn which is powerful enough to be heard over industrial operations. There is no dimming or volume control for the lights or horns. Flying leads allow operators to connect this unit to a PLC system for programming. Wiring: Wiring is through a 3/4" conduit access hub. The unit can be ordered in 120 V or 240 V AC configuration for use with standard line voltages, or 24 V DC for low voltage use. Mounting is provided by a heavy gauge aluminum base with predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. Power is provided by individual conductors to allow independent operation of each lamp and tone combination. Operators can tap the C1D1 junction box in order to connect to a power source. This 50 watt five lamp explosion proof signal stack LED light with four tone alarm system is an ideal fixture indicator for manufacturing facilities, routing shipping lanes, and any hazardous work area where status indicators and audible alarms are necessary. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations.
