6000W Water Cooled Diesel Generator - 30' Telescoping Tower - (4) EXP LED Lamps
6000W Water Cooled Diesel Generator - 30' Telescoping Tower - (4) EXP LED Lamps
| HAL-WCDE-4X150RTÂ Mobile LED Light Tower | Ratings/Approvals |
| Light Tower/Trailer Specs | External Grounding |
| Boom Height: Up to 30 Feet | Low Oil, High Engine Temp Auto Shut-Off - Spark arrestor and insulate muffler |
| Mounting: Towable Trailer, 3500lbs Axle, 2" Ball | Three Point Outrigger System |
| Â | Hour Meter - Charging indicator |
| Generator Specs | Individual Light Switches |
| Power: Water Cooled Diesel Engine | Withstands 65Mph Winds at Full Extension |
| Generator: 6,000 watts, 120/240 volt, 1ph. @ 60hz | Explosion Proof Receptacles |
| Fuel: 15 Gallon Fuel tank |  |
| Run Time: Up To 15 Hours on Single Tank of Fuel | LED Lamp Ratings/Features |
| Noise Level: Db level 63 Db @23 ft | Listed for United States and Canada |
| Power Supplies: 2-120V &Â 2-240V Class I, Division 1 Receptacles | Class I, Divisions 2, Groups C and D |
| Â | Class II, Divisions 1 & 2, Groups E,F,G |
| LED Lamp Specs | Class III, Divisions 1 & 2 |
| Lamp Qty: (4) | NRTL Certified to UL 844 Ed. 13 |
| Lamp Type: LED | NRTL Certified to UL 1598 |
| Dimensions: 14"H x 16"W 5"D | NRTL Certified to UL 1598 |
| Weight: - | Certified to C22.2 No. 137 Rev 2009 |
| Voltage: 100-277 Volts AC, 50/60Hz | Certified to C22.2 No. 137 Rev 2009 |
| Total Watts: 600W | Certified to C22.2 No. 250.0 |
| Single-lamp Watts: 150W | T5 Temperature Rating |
| Total Lumens: 84,000 lms | Paint Spray Booth Approved |
| Single-lamp Lumens: 21,000 lms | IEC 60529 Tested |
| Luminous Efficiency: 166.67 Lm/W | IP67 Rated Waterproof |
| Lamp Life: 60,000+ Hours | DLC Approved |
| Color Temp: 5600K, 4500K, 3000K | Multiple Driver Banks |
| Color Rendering Index: >75 CRI | 80% Lumen Retention after 60,000 Hours |
| Beam Angle: 60° or 125° | Factory Sealed Light Fixture |
| Lighting Configuration:Flood Pattern | Â |
| Power Efficiency: >95% | Â |
| Power Factor: 0.992 | Â |
| Amperage: 5A @ 120V, 2.5 @ 240V, 2.16 @ 277V | Â |
| Maximum Inrush Current: 1.65A @ 120V | Â |
| Ambient Operating Temp Range:-50° C to +65°C |  |
| Operating Temp Rating: T5 | |
| Housing Material: Copper Free Cast Aluminum | |
| Lens Material: Hardened Borosilicate Glass | |
| Gasket Material: Silicone | |
| Mounting: Mast | |
| Â | |
| Shipping Weight: - |

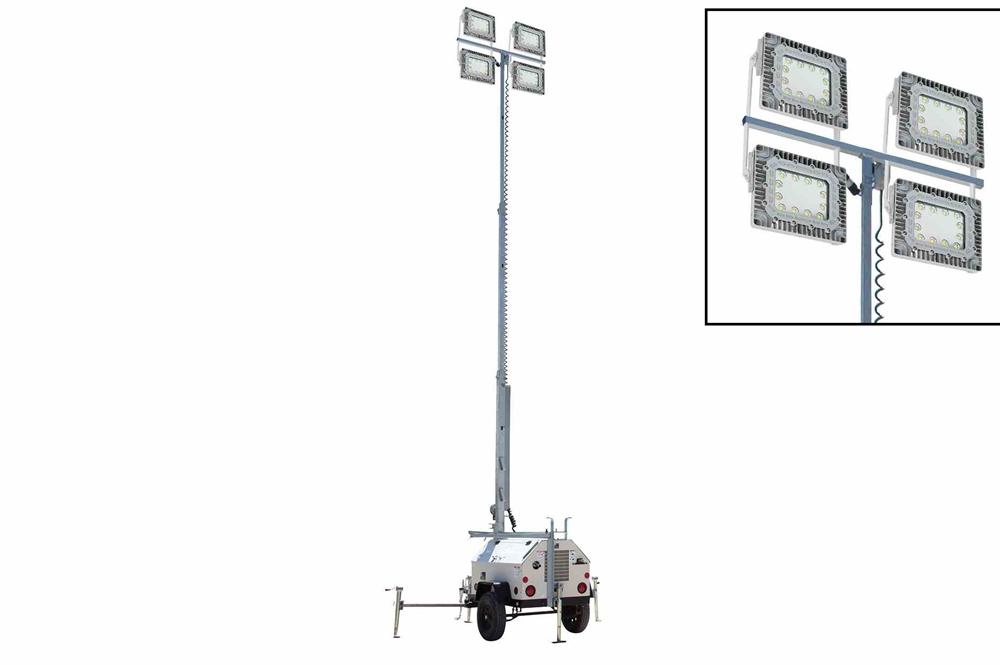

| The HAL-WCDE-4X150RT Mobile LED Light Tower from Larson Electronics is a towable lighting package powered by a water cooled diesel engine turning a single bearing 4-pole generator, which produces 6,000 watts and 120/240V@60Hz. The four 150-watt explosion proof LED lamps included with this unit produce 84,000 lumens and will illuminate a 3-4 acre area continuously without refueling for up to 15 hours. The HAL-WCDE-4X150RT mobile light tower is a self contained towable LED light tower package that produces enough light to illuminate an area up to 4 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current for four, Class I, Division 2 150-watt LED lights producing 21,000 lumens each, for a combined total of 84,000 lumens of light. This unit can run uninterrupted for up to 15 hours straight without refueling and includes a telescoping light mast which can elevate the four LED lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. |
| The HAL-WCDE-4X150RT mobile light tower includes a water cooled diesel engine that produces 20 horsepower at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. The 15 gallon fuel tank is sized to allow the engine to operate for up to 15 hours continuously without refueling. Generator: The 6,000 watt, 6kva generator is a single bearing 4 pole design with Class F minimum insulation producing 120/240 volt, 1ph. @ 60hz. This hazardous location light tower includes an ignition spark arrestor and heat insulated muffler (fiberglass wrap). The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems. The system is equipped with two explosion proof EDC-2023 Class 1, Div. 1, 120 Volt AC plugs rated at 15 amps, and two explosion proof EDC-20232 Class I, Div. I 250 Volt plugs rated at 20 amps. Lights: The mobile light tower contains four explosion proof LED flood light fixtures. Each unit provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. The explosion proof lights produce illumination with a color temperature of 5600K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). The explosion proof LED light fixtures features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. Controls: The operations system for this unit is a centrally located control panel located within the light tower enclosure. Four Class 1 Division 1 switches allow individual on/off control of the lights while an individual hour meter tracks unit operating time. Also included is a battery charging indicator and alternator failure gauges. Telescoping Boom: The telescoping boom consists of three sections extending up to 30 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and comes powder coated to prevent friction and rusting between tower sections. This system is capable of withstanding 65 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design stabilizing outriggers with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1500 lbs, swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed with a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db level @ 23 ft. Trailer: The entire unit is mounted onto a two wheel trailer with a 3,500 lbs leaf spring axle and 15†wheels with protected fenders. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire light tower system generator weighs 1850 pounds with shipping dimensions measuring 13 feet long, 8 feet wide and 6 feet tall. |
| Â |
