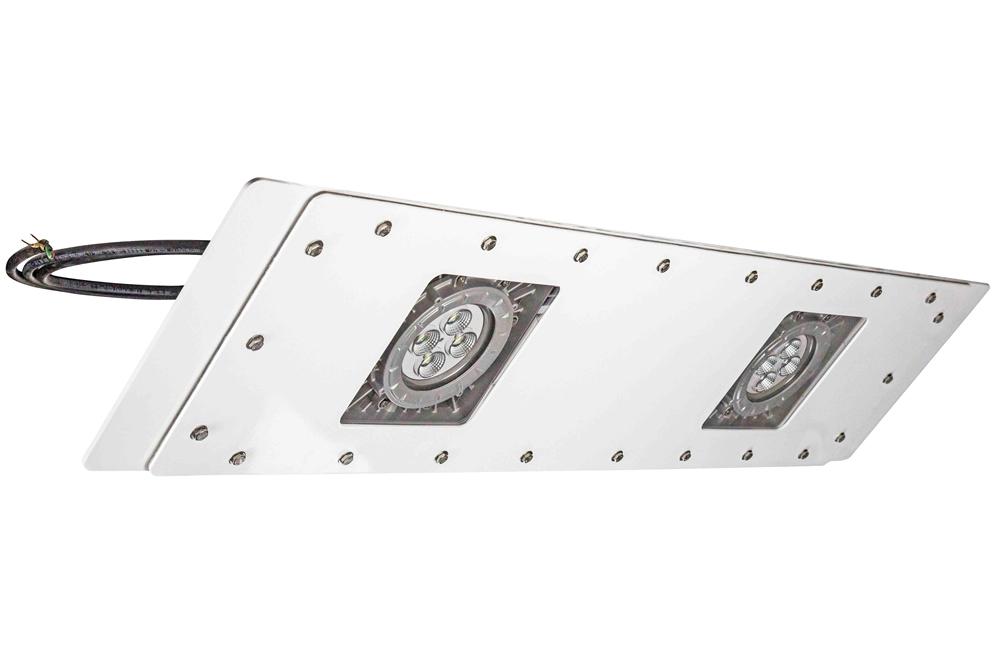

100W Explosion Proof LED Light - 1x4 Lay-In Troffer - C1D1/C2D1 - Paint Spray Booth - Front Access - 0-10V Dimmable
100W Explosion Proof LED Light - 1x4 Lay-In Troffer - C1D1/C2D1 - Paint Spray Booth - Front Access - 0-10V Dimmable
| HALD-48-1X4-2X50LED-DIMM HAZLOC Lay-In Panel Mount 0-10V Dimmable Light | Ratings/Approvals |
| Listing: United States, Canada | Class I, Divisions 1 & 2, Groups C and D |
| Lamp Technology: Cree LED | Class II, Divisions 1 & 2, Groups E,F,G |
| Dimensions: 47-3/4"-L x 11-3/4"-W x 8"-D | NRTL Certified to UL 844 Ed. 13 |
| Flange Dimensions: 48"L x 12"W | NRTL Certified to UL 1598 |
| Weight: 80 lb | NRTL Certified to C22.2 No. 137 Rev 2009 |
| Voltage: 100-277 V AC | NRTL Certified to C22.2 No. 250.0 |
| Frequency: 50/60 Hz | NRTL Certified to C22.2 No. 30-M-1986 Rev 2012 |
| Total Watts: 100W | T5 Temperature Rating |
| Total Lumens: 14,000 lms | Paint Spray Booth Approved |
| Luminous Efficacy: 140 Lm/W | IEC 60529 Tested |
| Lamp Life: 60,000+ Hours | IP67 Rated Waterproof |
| Light Color: White | LEL Approved |
| Color Temperature: 5600K, 4500K or 3000K | Multiple Driver Banks |
| Color Rendering Index: >75 CRI | 80% Lumen Retention after 60,000 Hours |
| Lamp Type: - | Factory Sealed Light Fixture |
| Lamp Base: - | Recessed Panel Mounting |
| Replacement Lamp: - | No Rear Access |
| Beam Angle: 60° or 125° | 0-10V Dimmable |
| Lighting Configuration: Flood Pattern | |
| Power Efficiency: >95% | |
| Power Factor: 0.992 | |
| Amperage: 0.83 A @ 120 V, 0.41 A @ 240 V, 0.36 A @ 277 V | |
| Ambient Operating Temp Range: -50°C to +65°C | |
| Operating Temp Rating: T5 | |
| Housing Material: Copper Free Cast Aluminum | |
| Housing Finish: Powder Coated - White | |
| Lens Material: 1/8" Polycarbonate | |
| Gasket Material: - | |
| Mount: Recessed Panel Mounting | |
| Wiring: 10' 16/3 SOOW w/ Flying Leads | |
| Color: White | |
| LED Driver Specs |  |
| Input Voltage: 100-277 V AC | Special Orders - Requirements |
| Input Current: 1.8 A Max | |
| Power Factor: >98% | |
| Efficiency: >88% | |
| Output Voltage: 54 V Max | |
| Output Current: 2.1 A |
| The Larson Electronics HALD-48-1X4-2X50LED-DIMM Explosion Proof 0-10V Dimmable LED Light is a powerful lighting solution for combustible sites and industrial facilities. This 100-watt front-access LED lamp is an excellent replacement or upgrade option for paint booths and hazardous locations where flammable chemical/petrochemical vapors are present. Constructed of copper-free aluminum, with a powder coated finish, the 1x4 lay-in fixture is compatible with recessed mounting applications. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-48-1X4-2X50LED-DIMM is a Class I, Division 1 & 2 and Class II, Division 1 & 2 rated dimmable LED fixture for use in paint spray booths and hazardous environments where space for lighting systems are limited. This 100-watt fixture operates on 100-277V AC. During use, the 1x4 lay-in LED light provides 14,000 lumens of output, with a color temperature rating of 5600K, 4500K or 3000K. A color rendering index of 75 ensures accurate production of colors and details. This LED light provides a flood beam pattern, with 60° or 125° beam angles for effective coverage. The internal components of the dimmable LED lamp are accessible via the front (no rear access). To open the fixture, the faceplate must be removed and the LED module is dropped down from the front of the unit. For rear access requirements or servicing, Larson Electronics offers the HALD-48-1X4-2X50LED-DIMM-V2. Constructed of copper-free aluminum, the front-access LED assembly is protected by a sturdy frame and a 3/16" thick polycarbonate door. The IP67-rated lamp features a powder coated white finish for durability. Equipped with a T5 temperature rating, the LED light is suitable for use in environments ranging between -50°C to +65°C. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. The integrated LED assembly in this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains eight individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. This LED light fixture features 0-10V dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications. Wiring: The HALD-48-1X4-2X50LED-DIMM comes with 10' of 16/3 SOOW cord with flying leads for connection to a preferred power source. Mounting: This 0-10V dimmable fixture is designed for recessed mounting applications and requires a mounting hole to be made in booth panels capable of accommodating the fixture's housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this fixture's door frame will extend 3/8†into the spray booth. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present. |
