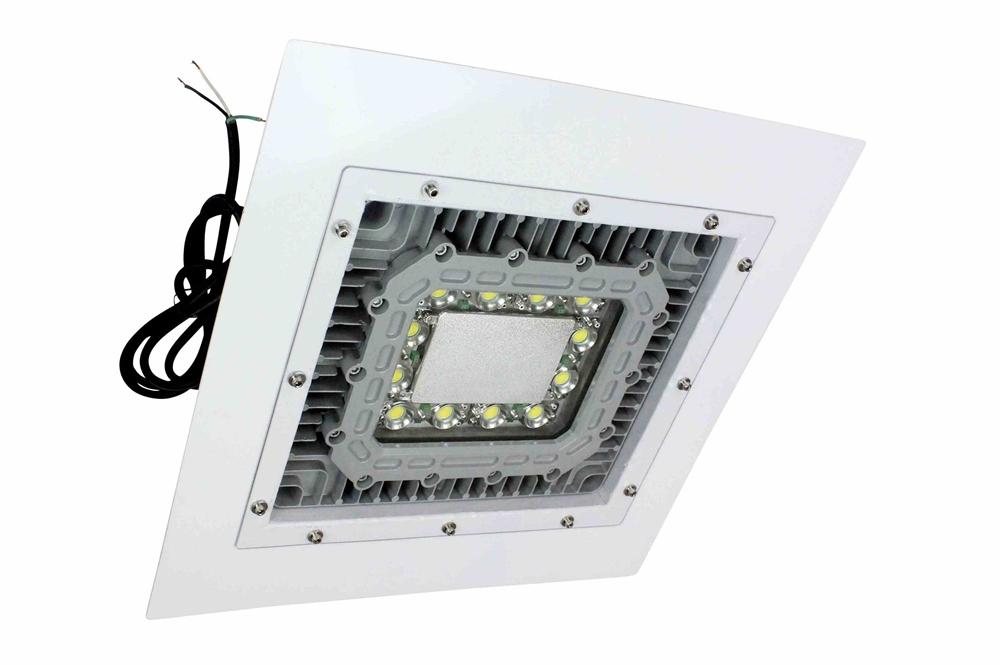

Explosion Proof LED Light, 2X2 Hard Lid Flange, Class 1 Div 1&2, Paint Spray Booth Rated

Explosion Proof LED Light, 2X2 Hard Lid Flange, Class 1 Div 1&2, Paint Spray Booth Rated

$4,574.00 CAD
$4,574.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
HALD-FA-24-1X150LED-V4 HAZLOC Lay-In Panel Mount Light Ratings/Features
Listing: United States - Canada Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 18.25"-L x 16.25"-W x 7"-D Class II, Divisions 1 & 2, Groups E,F,G
Flange Dimensions: 23.875”-L x 23.875"-W Class II, Divisions 1 & 2, Groups E,F,G
Cutout Dimensions: 17.75"-L x 15.75"-W NRTL Certified to UL 844 Ed. 13
Weight: 45 lb NRTL Certified to UL 1598
Voltage: 100-277 Volts AC, 50/60 Hz or 11-25 Volts AC/DC NRTL Certified to C22.2 No. 137 Rev 2009
Total Watts: 150W NRTL Certified to C22.2 No. 250.0
Lumens: 21,000 NRTL Certified to C22.2 No. 30-M-1986 Rev 2012
Luminous Efficacy: 140 Lm/W T5 Temperature Rating
Lamp Life: 60,000+ Hours Paint Spray Booth Approved
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K IEC 60529 Tested
Color Rendering Index: >75 CRI IP67 Rated Waterproof
Beam Angle: 60°, 125°, or 140° NEMA 3, 3R, 4, 7 (C, D), 9 (E, F, G)
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor: 0.992 80% Lumen Retention after 60,000 Hours
Ambient Operating Temp Range:-50° C to +65°C Factory Sealed Light Fixture
Operating Temp Rating: T5 Recessed Panel Mounting
Housing Material: Copper Free Cast Aluminum 3.5kV Surge Protection (NTC Circuit)
Housing Finish: Powder Coated - White Recommended 15' to 40' Mounting Height
Lens Material: Polycarbonate Special Orders - Requirements
Mounting: Recessed Panel Mounting in Hard Lid Ceilings
Ceiling Compatibiliy: Hard Lid or Drywall Cutouts
Mounting Method: Recess Flange w/ Swing Bar Screw Clamp
Wiring: 10' 16/3 SOOW w/ Flying Leads
Wiring Hub: 3/4" NPT
' Product Overview '
Made in the USA The HALD-FA-24-1X150LED-V4 from Larson Electronics is a Hazardous Area LED Light Fixture that is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This LED hard lid mount fixture is NRTL listed Class I Divisions 1 & 2, Class II Divisions 1 & 2,and is approved for use within paint spray booths. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for paint booths and hazardous locations where flammable chemical/petrochemical vapors are present. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-FA-24-1X150LED-V4 Explosion Proof fixture is a 2X2 Class I Divisions 1 & 2 hazardous location hard lid recessed mount LED light fixture is ideal for use in paint spray booths and hazardous environments where space for lighting fixtures is limited. This fixture is T5 temperature rated and is a fully integrated LED unit. The LED assembly is protected by an aluminum framed, 3/16" thick polycarbonate lens that provides direct front access to the internal components. The lamp housing is designed for recessed mounting in hard lid type ceilings, and is constructed of non-sparking aluminum coated with a powder coated white finish. This Class I Divisions 1 & 2, Class II Divisions 1 & 2 explosion proof light fixture provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of electronic LED drivers. These internal drivers provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic drivers allow the HALD-FA-24-1X150LED-V4 to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights. The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. With the HALD-FA-24-1X150LED-V4 series of explosion proof lamps from Larson Electronics, each LED fixture contains six individual LED boards configured in a series of banks. Each bank contains two LED on a single board with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. This unit produces 21,000 lumens with a color temperature of 5000K standard and a color rendering index of >75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. Additional color temperatures are available (longer lead times may apply for non-standard temperatures). Specialty colors including red, amber, blue, green, yellow, and pink are available upon request. This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 140 lumens per watt effective lumen output and have a 80% lumen retention at 60,000 hours, giving them better efficiency and operational life than traditional light sources. Field Serviceability: This explosion proof LED light fixture is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with the HALD-FA-24-1X150LED-V4 series with field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure.
Energy Consumption Comparison
Metal Halide LED
Wattage 400 watts 150 watts
Amp Draw @ 120V AC 3.83 amps 1.25 amps
Amp Draw @ 220V AC 2.09 amps 0.68 amps
Amp Draw @ 240V AC 1.92 amps 0.63 amps
Amp Draw @ 277V AC 1.66 amps 0.54 amps
Amp Draw @ 12V DC 38.33 amps 12.5 amps
Amp Draw @ 24V DC 19.12 amps 6.25 amps
Lamp Life Expectancy 20,000 hours 60,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Voltage: This explosion proof LED light is universal voltage capable and can be operated with 100-277 V AC, 50/60 Hz without modifications to the fixture. A low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 volts is also available. 18-48 V AC/DC voltage models are available for network systems and marine vessels. We also offer an additional 347-480 V high voltage, 125-250 V DC, and 0-10 V dimmable versions of this explosion proof LED light fixture. Mounting: The HALD-FA-24-1X150LED-V4 features a flange mounting system for recess mounting to hard lid ceilings. Four swing bar grips secure the fixture against the hard ceiling mounting sufrace. A gasleted flange seals the fixture against the mounting surface during installation. Additional mounting types, including flange mount surface mounting and lay-in drop ceiling mounts are available. Mounting solutions can be customized upon request.. This explosion proof LED light fixture is paint spray booth listed, IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. Suggested Applications: The HALD-FA-24-1X150LED-V4 is approved for use within environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications. Applications include but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing, fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. .
