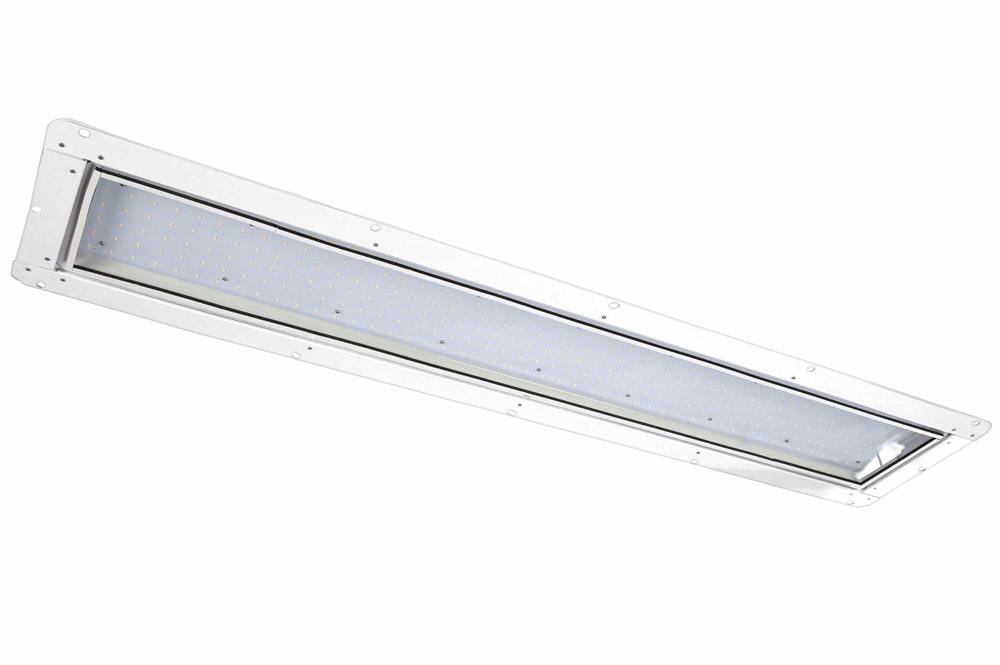

45W Hazardous Location Integrated Low Profile Paint Spray Booth LED Light - Class I, II, III - 7200 lms/Dimmable - 10' SOOW Cord - IP67/N4X

LARSON ELECTRONICSSKU: PL3-HALD-LP-ITG-1X4-LED-D-R1
filler

Precio:
Precio de venta$842.00

Descripción

Specifications / Additional Information
HALD-LP-ITG-1X4-LED-D-R1 HAZLOC Panel Mount Light Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Division 2, Groups A,B,C,D
Lamp Technology: Dimmable LED Class II, Divisions 1 & 2, Groups E,F,G
Fixture Dimensions: 45.86" x 6.45" x 1.19" Class III, Divisions 1 & 2
Flange Dimensions: 49.88" x 9.75" x 1.19" Certified to UL 844
Weight: - Certified to UL 1598
Voltage: 120-277V AC, 50/60Hz Certified to C22.2 No. 137
Total Watts: 45W Certified to C22.2 No. 250.0
Lumens: 7,200 lms T6 Temperature Rating
Luminous Efficacy: 160 Lm/W Paint Spray Booth Approved
Lamp Life: 60,000+ Hours IEC 60529 Tested
Color Temp: - IP67 Rated Waterproof
Color Rendering Index: >90 CRI w/ R9 >50 NEMA 4X Waterproof
Beam Angle: - 80% Lumen Retention after 60,000 Hours
Lighting Configuration: Flood Pattern Recessed Panel Mounting
Power Efficiency: -
Power Factor: >0.96
Dimming Protocol: 0-10V
Amps: 0.37A @ 120V, 0.19A @ 240V, 0.16A @ 277V
Ambient Operating Temp Range: -
Operating Temp Rating: T6
Housing Material: Non-sparking
Housing Finish: -
Lens Material: - Toll Free: 1-800-369-6671
Mounting: Recessed Panel Mounting - Retrofit Adaptor Kits Available at an Additional Cost
Wiring: 10` 18/3 SOOW Cord
Wiring Hub: (2) 1/2" NPT Hubs @ Back Side of Fixture
' Product Overview '
Made in the USA The Larson Electronics HALD-LP-ITG-1X4-LED-D-R1 Hazardous Location Integrated Low Profile Paint Spray Booth LED Light is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This 45-watt fixture provides 7,200 lumens of output and 0-10V dimmable operation. Equipped with a 10' 18/3 SOOW cord, the NEMA 4X rated LED light is compatible with recessed panel mounting installations. We offer retrofit adaptor kits for secure installations over wall cut-outs or existing booth openings at an additional cost. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-LP-ITG-1X4-LED-D-R1 is ideal for use in paint spray booths and hazardous environments where space for lighting fixtures is limited. This fixture is T6 temperature rated and is a fully integrated LED unit. The 45-watt LED assembly delivers 7,200 lumens of output with >90 CRI during use. A flood beam pattern ensures wide light distribution in busy work areas. This hazardous location LED light is 0-10V dimmable. The LED fixture has a >0.96 power factor. Light weight and a low profile makes this unit an attractive alternative to larger or heavier, older fixtures and requires less hardware to install. This LED light is protected by a non-sparking housing for safety. The unit carries IP67 and NEMA 4X ratings for durability in rugged environments and protection against water, moisture, debris and corrosion. Recommended for combustible sites, the low profile fixture is Class I, II and III rated. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Voltage: The HALD-LP-ITG-1X4-LED-D-R1 operates on universal 120-277V AC, 50/60 Hz. We also offer units that are compatible with 347-480V AC power. Wiring/Hubs: This LED light comes with a 10' 18/3 SOOW cord for wiring connections. Operators may access two, 1/2" NPT hubs at the back side of the unit. Mount: This fixture is designed for recessed panel mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing. This step provides the maximum amount of space in paint spray booths. We offer retrofit kits for secure installations over wall cut-outs or existing booth openings at an additional cost. The kits consist of brackets, adaptors and mounting hardware. Applications: Paint Booth, Powder Booth, Blast Booth, Clean Room, Prep Sanding, Pharmaceuticals, Laboratories and more.
