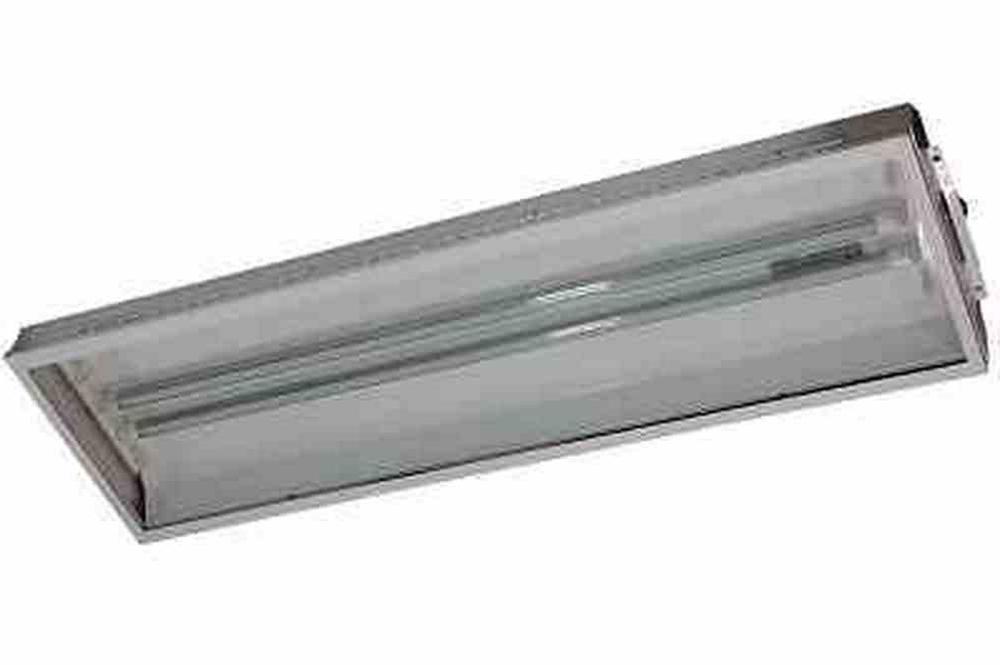

56W Flameproof LED Fixture - 4' 2-lamp - Zone 1, 2 and 21, 22 - ATEX/IECEx Rated

LARSON ELECTRONICSSKU: PL3-HALS-AEC.EX-48-2L-LED
filler

Precio:
Precio de venta$2,462.00

Descripción

Specifications / Additional Information
HALS-AEC.EX-48-2L-LED Flameproof LED Light Ratings/Approvals
NRTL Listed for Europe and International Zone 1 and Zone 2 Approved
Lamp Technology: LED Zone 21 and Zone 22 Approved
Lamp Quantity: (2) Ex nA …¡C T4 Gc TA,T6
Dimensions: 54.52" x 12.7" x 5.27" ATEX EN60079 Certified
Weight: - IEC Ex IEC60079 Certified
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC IP65
Total Watts: 56W
Single-lamp Watts: 28W
Total Lumens: 7,000 lms
Single-lamp Lumens: 3,500 lms
Luminous Efficacy: 125 lm/W
Lamp Life: 50,000+ Hours
Color Temperature: 3000K, 3500K, 4500K, 5000K, 5600K
Color Rendering Index: 85+
Lamp Type: -
Lamp Base: G13 Bi-pin
Replacement Lamp: LED T8-Style Tube
Beam Angle: 150°
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: -
Amperage: 0.46A @ 120V, 0.23A @ 240V, 0.2A @ 277V
Ambient Operating Temp Range: -25°C to +50°C/+55°C
Operating Temp Rating: T6
Housing Material: Carbon Steel
Housing Finish: White Plastic Powder
Lens Material: Polycarbonate (Clear, Frosted or Heavy Frosted)
Cover Material: Glass
Mount: - Intl: 1-214-616-6180
Terminals: L1, L2, L, N, PE
Hubs: (1) M25 x 1.5 @ Side
' Product Overview '
The Larson Electronics HALS-AEC.EX-48-2L-LED Flameproof LED Fixture is designed for powerful illumination in ATEX/IECEx rated flammable environments. Equipped with two 28-watt LED lamps, this IP65 rated fixture is compatible with 100-277V AC. The LED light is protected by a carbon steel housing with a glass cover and features an interlocking system for protection. The HALS-AEC.EX-48-2L-LED is a powerful lighting solution for combustible facilities, industrial sites and outdoor locations. This 4-foot, 2-lamp unit operates on 100-277V AC, 50/60Hz and contains two, 28-watt LED lamps. During use, the LED fixture offers 7,000 lumens of output in a flood beam configuration, with an exceptional CRI rating of 85+. Color temperature options include: 3000K, 3500K, 4500K, 5000K or 5600K. This flameproof LED light contains a G13 bi-pin base, which caters to T8-style LED tubes. The explosion proof fixture is constructed of carbon steel, with a white plastic powder finish. The lamp lens consists of polycarbonate and is protected by a glass cover. Choices for the lamp's lens include: clear, frosted or heavy frosted. This IP65-rated unit comes with an approximate lifespan of 50,000+ hours and is suitable for ATEX/IECEx rated Zone 1/Zone 2 and Zone 21/Zone 22 flammable environments. An internal interlock switch powers down the fixture during maintenance to ensure safety. Equipped with a T6 temperature rating, the outdoor fixture can be used in locations with ambient temperatures ranging between -25°C to +50°C/+55°C. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. These LED fluorescent style bulbs are universal voltage and run directly off any voltage ranging from 100 volts to 277 volts AC 50/60 Hz. The internal LED driver is a "smart" driver, sensing the incoming voltage and adjusting accordingly to provide the current required by the lamp. This allows operators to simply wire the fixture to voltage within the 120-277V range, no modifications required. This includes commonly found voltages such as 120V 60Hz, 220V 50Hz, 240V 60Hz, and 277V 60Hz. We also offer a 12/24V AC/DC version for low voltage applications for AC or DC power. Low voltage fixtures require no modifications between 12V and 24V power sources, nor between alternating and direct current supply. Wiring: The HALS-AEC.EX-48-2L-LED features L1, L2, L, N and PE terminals for completing electrical connections. Cables are fed through one, M25 x 1.5" hub located at the side of the fixture. A central locking system protects the internal components of the unit, which must be unlocked during installation or relamping. Mounting Compatibility: This explosion proof light is compatible with the following mounting configurations (not included): ceiling, pendant, chain hanging, angle bracket and more. We offer these mounting accessories at an additional cost. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, offshore applications and more.
