Hazardous Area Strobing Light Beacon - 60-80 Flashes per Min - 50 Candela - 3/4" Hub

LARSON ELECTRONICSSKU: PL3-HALSB-CRNM-XN
filler

Precio:
Precio de venta$1,070.00

Descripción

Specifications / Additional Information
HALSB-CRNM-XN - Hazardous Area Beacon Ratings
Listing: United States - Canada Class I, Division 2 Groups A,B,C,D
Lamp Technology: Xenon HID UL 595, 844
Dimensions: 5.94" OD , 9.60" Height (Ceiling Mount) UL 1570/1571: Wet Locations
Weight: - NEMA 4X
Voltage: 120-277V AC, 12V DC or 24V DC USCG Certified
Power: 2.3 Joules per Flash CSA Certified
Candela: 50 Eff
Luminous Efficacy: -
Lamp Life Expectancy: -
Color Options: White, Red, Amber, Blue or Green
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 360°
Lighting Configuration: Flood Beam
Flashes per Minute: 60-80
Power Efficiency: -
Power Factor: -
Amps: 0.04A @ 120V AC, 0.4A @ 12V DC Special Orders/Requirements
Ambient Operating Temp Range: -29° C to +40°C
Operating Temp Rating: T2D Rated
Materials: Polycarbonate
Mounting: Ceiling, Wall or Pendant
Wiring Hub: 3/4" NPT
' Product Overview '

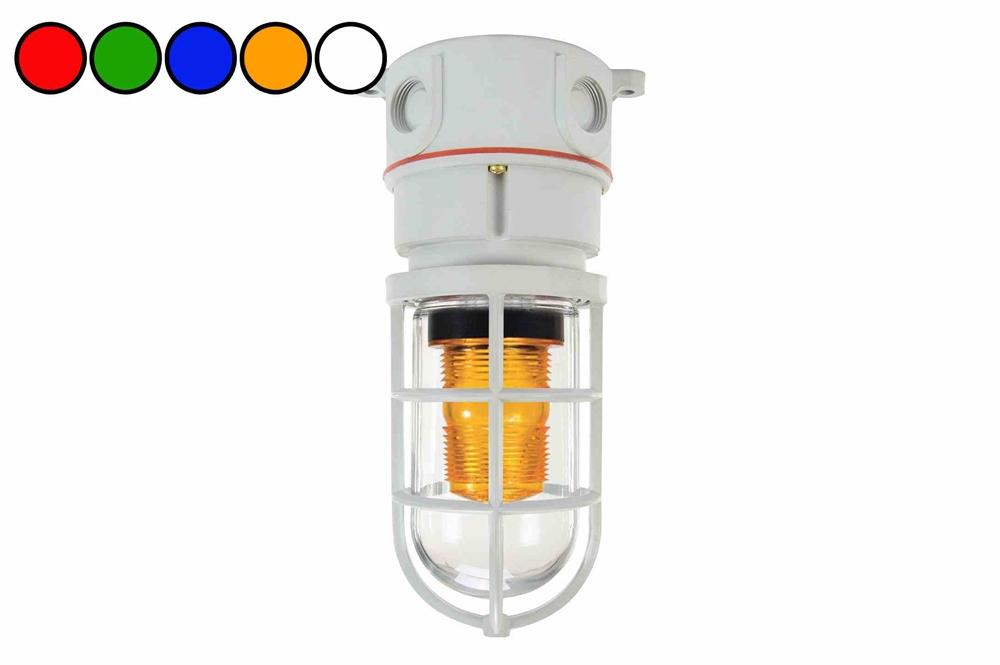

The Larson Electronics HALSB-CRNM-XN Hazardous Area Strobing Light Beacon is a Class I, Division 2 rated light source for combustible work sites. During use, the hazardous location lamp provides 60-80 flashes per minute. This waterproof HID light is available in the following color options: white, red, amber, blue or green. The HALSB-CRNM-XN is ideal for industrial applications, hazardous work spaces and areas where gases and vapors may be present and a powerful and durable general purpose strobe lighting solution is needed. The HID unit offers 50 candela effective light output, with a flash rate of 60-80 flashes per minute. A full, 360° beam angle ensures complete coverage of the site. Color options include the following: white, red, amber, blue or green. The hazardous location lamp in this unit offers exceptional power and is protected by a Pyrex globe and polycarbonate globe guard. This hazardous area light beacon carries a T2D temperature rating and has a -29°C to 40°C operating temp range. The waterproof light complies with UL 1570/1571 and UL 595 and is suitable for spray down areas and marine locations. The unit carries UL and CSA certifications, USCG acceptance, approval for wet locations in any orientation and NEMA 4X compliance for hose down areas.
  Voltage: 120-277V AC, 12V DC or 24V DC. Temp Code: Class 1 T2D 215°C (Do not install where the operating temperature exceeds the ignition temperature of the hazardous atmosphere.) Wiring: The HALSB-CRNM-XN contains 3/4" hubs for completing electrical connections. Mounting: The hazardous location strobe light is offered with ceiling mount features. We offer pendant and wall mount versions as well for added installation versatility. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more.
