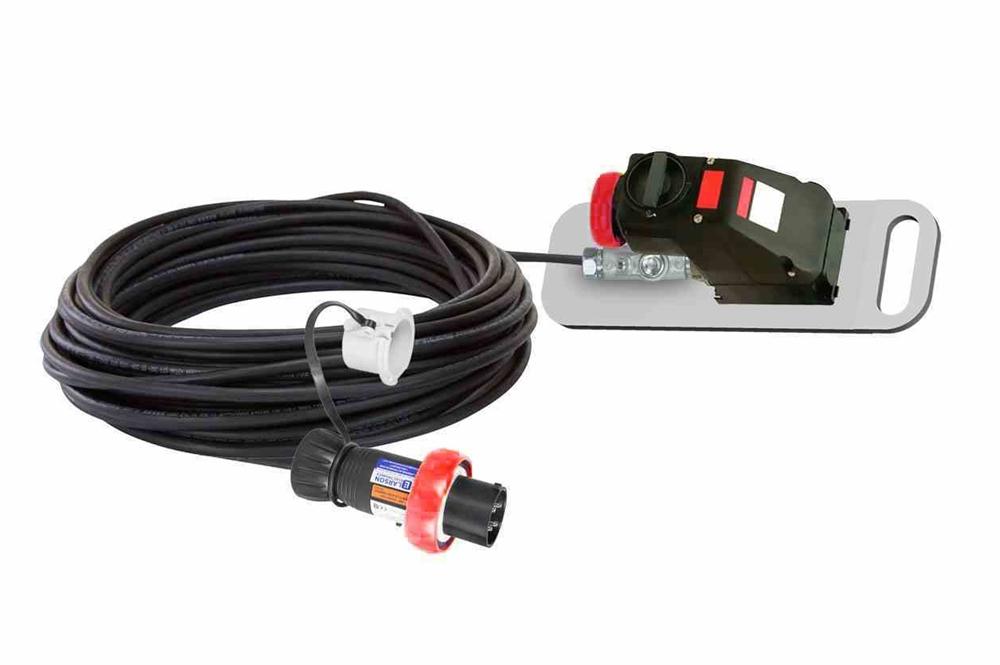

Explosion Proof Extension Cord - 60M 6/5 Type W Cord - 415Y/240 V - 63A Cont Capacity - Red
Explosion Proof Extension Cord - 60M 6/5 Type W Cord - 415Y/240 V - 63A Cont Capacity - Red
HLEXC-AE.EX-60M-6.5-63A-4P5W-415Y.240 ATEX Rated Extension Cord | Ratings |
Unit Type: ATEX Rated Extension Cord | ATEX/IECEx Rated |
Length: 60 Meters | Approved for Zone 1 and 2 |
Weight: - | Approved for Zone 21 and 22 |
Voltage: 415Y/240 V | Ex II 2 GD Ex db eb IIC T6 |
Amps: 63 A | Ex II 2 Gb Ex tb IIIC T80℃ Db(Ta≤ +45℃) |
Configuration: 4-Pole, 5-Wire | Ex II 2 GD EX db eb IIC T5 |
Ex II 2 Gb EX tb IIIC T95C Db(Ta≤ +55℃) | |
NRTL Certified to IEC 60079 | |
NRTL Certified to EN 60079 | |
 | CE Certified |
IP66 Weatherproof | |
Plug Features |
Unit Type: Flameproof Plug | |
Dimensions: 10.6" x 4.4" (Outer Ring Diameter) | |
Weight: - | |
Voltage: 415Y/240 V | |
Amps: 63 A | |
Configuration: 4-Pole, 5-Wire | |
Materials: Polyamide | |
Terminal Capacity: 1 Wire (90°C Rated), 10-4 AWG | |
Suitable Cable Diameter: 0.94" - 1.4" |
Receptacle Features |
Listing: NRTL Listed for European, International Locations | |
Unit Type: Flameproof Receptacle | |
Dimensions: 11.1" x 8.15" x 5.3" | |
Weight: - | |
Voltage: 415Y/240 V | |
Amps: 63 A | |
HP (3 Phase): 20 HP @ 240V AC, 40 HP @ 480V AC | |
Configuration: 4-pole, 5-wire | Special Orders - Requirements |
Materials: Fiber Reinforced Polyester | |
Terminal Capacity: 2 Wires (90°C), 6-1/0 AWG | |
Ambient Operating Temp Rating: -20°C to +40°C | |
Suitable Cable Diameter: 0.94" - 1.4" | |
Hubs: (1) 1.5" NPT Hub |
Made in the USA The HLEXC-AE.EX-60M-6.5-63A-4P5W-415Y.240 from Larson Electronics is an Explosion Proof Extension Cord that allows operators to safely extend the range of their explosion proof light or equipment beyond the boundaries of the hazardous work area. Compatible with 415Y/240 V, the ATEX/IECEX rated unit features a maximum continuous capacity of 63 amps and contains one explosion proof receptacle. This 6/5 Type W cord measures 60 meters in length and is equipped with a 63-amp explosion proof plug. The HLEXC-AE.EX-60M-6.5-63A-4P5W-415Y.240 extends electrical connections in combustible facilities. This 60 meters of 6/5 Type W cord is compatible with 415Y/240 V. Featuring a continuous capacity of 63 amps, the unit contains an ATEX-rated plug and receptacle with integrated locking features. With Zones 1, 2, 21 and 22, as well as IP66 ratings, the explosion proof extension cord is suitable for rugged locations. The ATEX-rated receptacle/plug feature non-metallic, polyamide and fiber-reinforced glass construction. Specially designed color coding and pin configuration reduces the possibility of making incorrect power connections. To ensure safety, the components are coded blue. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, ATEX-rated Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present. |
