Flameproof Receptacle, 2-Pole 2-Wire, 16 Amp, 24V DC, ATEX IEC-Ex Rated

LARSON ELECTRONICSSKU: PL3-HLO-AE.EX-16A-2P2W-24VDC
filler

Precio:
Precio de venta$1,088.00

Descripción

Specifications / Additional Information
HLO-AE.EX-16A-2P2W-24VDC IECEx/ATEX Rated Receptacle Ratings/Approvals
Listing: NRTL Listed for European, International Locations ATEX/IECEx Rated
Device Series: IEC 60309 (International Standard) Approved for Zone 1 and 2
Device Type: Flameproof Receptacle Approved for Zone 21 and 22
Dimensions: 9.13"-H x 4.13"-W x 6.6"-D Ex II 2 GD Ex db eb IIC T6
Weight: - Ex II 2 Gb Ex tb IIIC T80℃ Db(Ta≤ +45℃)
Amperage Rating: 16A Ex II 2 GD EX db eb IIC T5
Voltage: 24V DC Ex II 2 Gb EX tb IIIC T95C Db(Ta≤ +55℃)
Frequency: Direct Current NRTL Certified to IEC 60079
Phase: N/A NRTL Certified to EN 60079
Configuration: 2P2W CE Certified
# of Poles: 2-Pole RoHS Certified
# of Wires: 2-Wire IP66 Weatherproof
Max Voltage Rating: 50V DC Compatible with IEC 60309 Compliant Products
Clock Hour: 10H Certified for Full Load Interrupting
Color Code: White
Cord Range: .350 - .860 Mating Plug: HLP-AE.EX-16A-2P2W-24VDC
# of Operations: > 5000 connects/disconnects under load, at full rated current and voltage Mating Receptacle: HLO-AE.EX-16A-2P2W-24VDC
Minimum Withdrawal Force: 5lbs Mating Connector: HLC-AE.EX-16A-2P2W-24VDC
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current
Operating Temperature Range: -55°C to +65°C IEC 60309 Configuration: 220R10W-HL
Waterproof Rating: IP65, NEMA 4X
Shock Resistance: IK09
Flammability: V-2 Rated
Cable Secureness: "Force: 30lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32"
Seals: Neoprene
Material, Housing Body: Polyamide
Material, Housing Cover: Polyamide
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws:Stainless Steel
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Stainless Steel
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '

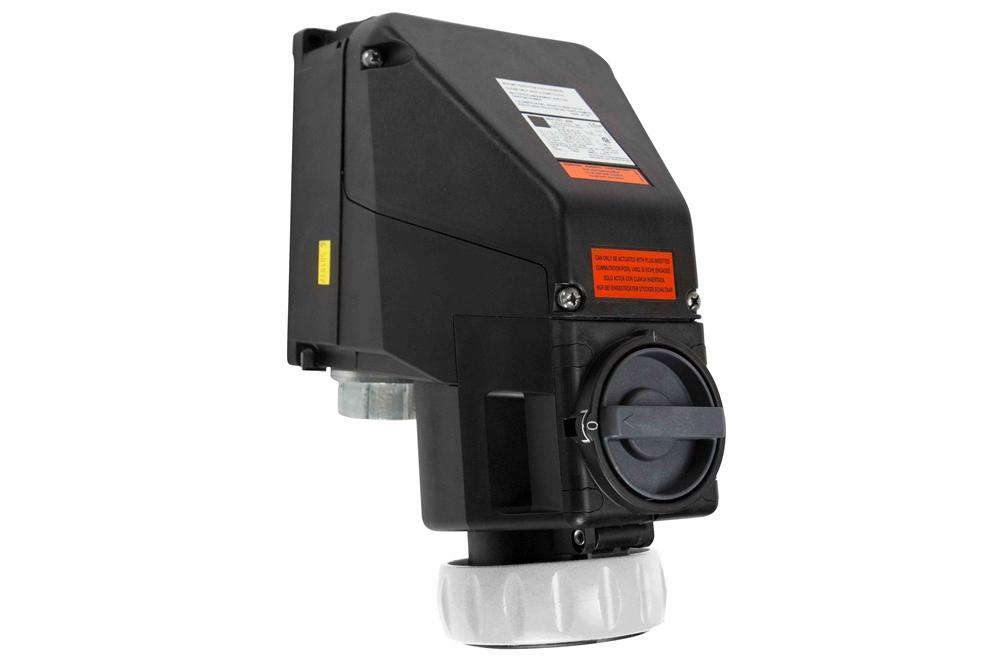

The Larson Electronics HLO-AE.EX-16A-2P2W-24VDC Single Phase Hazardous Location Receptacle is a ATEX and IEC Ex rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 2-pole, 2-wire hazardous location outlet is rated for 16-amps at 24V DC and designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 2-pole 2-wire receptacle is compatible with our HLP-AE.EX-16A-2P2W-24VDC hazardous location power plugs. This outlet is rated for 16 amps at 24V DC and is certified to ATEX and IEC Ex standards for hazardous locations. This receptacle is coded white to indicate its voltage rating and inner clock key pin position of 10. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. The switch can be padlocked in the on or off position. This hazardous location outlet features polyamide construction and a voltage rating of 24V DC. With NEMA Type 3, 4, 4X and IP66 ratings, this receptacle is suitable for outdoor, marine and wet location. This hazardous location single phase receptacle has a 2 wire 16-10 AWG terminal capacity and a ¾” NPT bottom entry. This unit has a short circuit current rating of 10kA sym RMS and operates with a T6 ambient temperature rating of -50ºC to +65ºC. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations.
